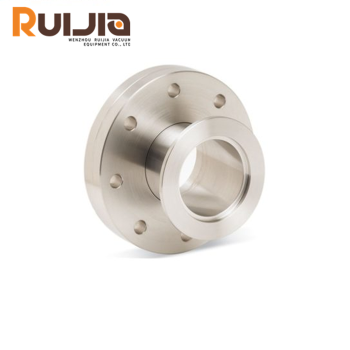

Stainless Steel Vacuum Fittings,KF to ANSI Tubular Adaptor with O'ring Groove Wholesale China
group nameVacuum Tubulated Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeThu, 07 Nov 2024 10:06:44 GMT
Paramtents
Size ASA4KA40,ASA4KA50,ASA5KA40,ASA5KA50,ASA7KA40,ASA7K
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard ANSI-KF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packging & Delivery
Min Order1 piece
Briefing
Vacuum flanges adaptor,ANSI-KF tubulated adaptor's design and manufacturing standards are used to match flanges of different sizes and standards, ensuring their reliability and effectiveness in vacuum environments.
Detailed
Stainless Steel Vacuum Fittings,KF to ANSI Tubular Adaptor with O'ring Groove Wholesale China Feature
●Application: used in vacuum systems, particularly in scientific and industrial applications. It's essentially a fitting that allows different types of vacuum flanges to connect to each other or to a vacuum pump.
●Connection Type: ASNI Flange Adaptor often feature standard connection types (such as NPT, BSP, etc.) which can be screwed onto various equipment or flanges.
Stainless Steel Vacuum Fittings,KF to ANSI Tubular Adaptor with O'ring Groove Wholesale China Specifications
|
Product Name
|
Stainless Steel Vacuum Fittings,KF to ANSI Tubular Adaptor with O'ring Groove Wholesale China
|
||
Brand | RUIJIA | ||
Size | ASA4KA40,ASA4KA50,ASA5KA40,ASA5KA50,ASA7KA40,ASA7KA50. | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ANSI-KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Flange Adaptor types
|
ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.
|
||
Product parameters
Stainless Steel Vacuum Fittings,KF to ANSI Tubular Adaptor with O'ring Groove Wholesale China Unit:mm
| Model No. | Material | Nominal | A | B | C | D | E | F | P.C.D |
| ASA4OGKA40 | 304S.S | 1 | 108 | 55 | 42 | 38.1 | 47.5 | 15.8*4 | 79.4 |
| ASA4OGKA50 | 304S.S | 1 | 108 | 75 | 42 | 50.8 | 47.5 | 15.8*4 | 79.4 |
| ASA5OGKA40 | 304S.S | 1 1/2 | 127 | 55 | 42 | 38.1 | 63.5 | 15.8*4 | 98.4 |
| ASA5OGKA50 | 304S.S | 1 1/2 | 127 | 75 | 42 | 50.8 | 63.5 | 15.8*4 | 98.4 |
| ASA7OGKA40 | 304S.S | 3 | 190.5 | 55 | 42 | 38.1 | 117.5 | 19*4 | 152.4 |
| ASA7OGKA50 | 304S.S | 3 | 190.5 | 75 | 42 | 50.8 | 117.5 | 19*4 | 152.4 |
Special Sizes Available Upon Request.
