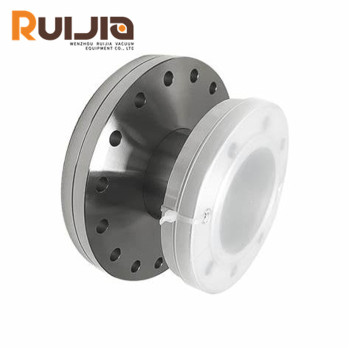

Stainless Steel Flange Fittings,Vacuum CF reducing adaptor-small Flange Rotatable Wholesale
group nameVacuum Reducing Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeThu, 07 Nov 2024 11:38:09 GMT
Paramtents
Size CF35RA16R-CF150RA100R
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Standard CF Standard
Packging & Delivery
Min Order1 piece
Briefing
Vacuum adaptors rotatable,Reducer flange adaptor to connect the different flange ang tube size,which is made from stainless steel and temperature range is from -200 to 800 ℃.
Detailed
Stainless Steel Flange Fittings,Vacuum CF reducing adaptor-small Flange Rotatable Wholesale Feature
●Application: Suitable for various application scenarios that require high vacuum operation, they can withstand high temperature baking, and the applicable vacuum degree can reach up to 10-12 mbar.
●Size:Vacuum flanges Adaptor come in various sizes(like CF,KF/ISO standard) and types to ensure compatibility and seal integrity when connecting different pieces of equipment.
●Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing.
Stainless Steel Flange Fittings,Vacuum CF reducing adaptor-small Flange Rotatable Wholesale Specifications
|
Product Name
|
Stainless Steel Flange Fittings,Vacuum CF reducing adaptor-small Flange Rotatable Wholesale
|
||
Brand | RUIJIA | ||
Size | CF35RA16R,CF63RA16R,CF63RA35R,CF100RA35R,CF100RA63R,CF150RA35R,CF150RA63R,CF150RA63R,CF150RA100R | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Flange Adaptor types
|
ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.
|
||
Product parameters
Stainless Steel Flange Fittings,Vacuum CF reducing adaptor-small Flange Rotatable Wholesale Unit:mm
| Model No. | Material | A | B | C | D |
| CF35RA16R | 304S.S | 69.5 | 33.8 | 76.2 | 19.05 |
| CF63RA16R | 304S.S | 113.6 | 33.8 | 76.2 | 1905 |
| CF63RA35R | 304S.S | 113.6 | 69.5 | 76.2 | 38.1 |
| CF100RA35R | 304S.S | 151.6 | 69.5 | 76.2 | 38.1 |
| CF100RA63R | 304S.S | 151.6 | 113.6 | 76.2 | 63.5 |
| CF150RA35R | 304S.S | 202.5 | 69.5 | 76.2 | 38.1 |
| CF150RA63R | 304S.S | 202.5 | 113.6 | 76.2 | 63.5 |
| CF150RA100R | 304S.S | 202.5 | 151.6 | 76.2 | 101.6 |
Special Sizes Available Upon Request.
