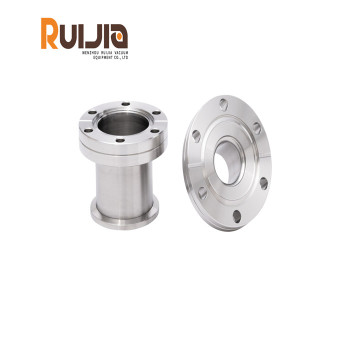

Stainless Steel CF-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale
group nameVacuum Tubulated Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeThu, 07 Nov 2024 11:36:45 GMT
Paramtents
Size CF16K10A-CF63K50A
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard KF-CF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packging & Delivery
Min Order1 piece
Briefing
CF to KF tubulated adaptor,material:stainless steel,temperature range:-200~800℃.Ruijia can offer standard tabulate adaptor with flange for KF, ISO, CF.
Detailed
Stainless Steel CF-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale Feature
●Application: used in vacuum systems, particularly in scientific and industrial applications. It's essentially a fitting that allows different types of vacuum flanges to connect to each other or to a vacuum pump.
●Size:Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.
●Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing
Stainless Steel CF-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale Specifications
|
Product Name
|
Stainless Steel CF-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale |
||
Brand | RUIJIA | ||
Size | CF16K10A,CF16K16A,CF35K10A,CF35K16A,CF35K25A,CF35K40A,CF63K50A | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF-CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Flange Adaptor types
|
ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.
|
||
Product parameters
Stainless Steel CF-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale Unit:mm
| Model No. | Material | A | B | C | D |
| CF16K10A | 304S.S | 33.8 | 30 | 43 | 12.7 |
| CF16K16A | 304S.S | 33.8 | 30 | 43 | 19.05 |
| CF35K10A | 304S.S | 69.5 | 30 | 45.3 | 12.7 |
| CF35K16A | 304S.S | 69.5 | 30 | 45.3 | 19.05 |
| CF35K25A | 304S.S | 69.5 | 40 | 45.3 | 25.4 |
| CF35K40A | 304S.S | 69.5 | 55 | 45.3 | 38.1 |
| CF63K50A | 304S.S | 113.6 | 75 | 49.5 | 50.8 |
Special Sizes Available Upon Request.
