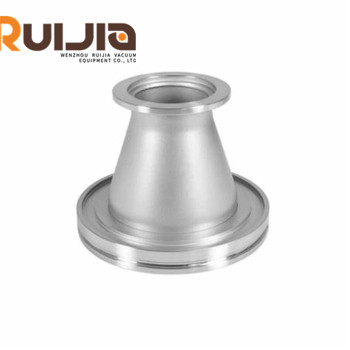

Vacuum Flange ISO-KF Conical Reducing Adaptor Fittings Wholesale
group nameVacuum Reducing Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeThu, 07 Nov 2024 13:42:10 GMT
Paramtents
Size ISO80KRA40,ISO100KRA40,ISO80KRA50,ISO100KRA50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard ISO-KF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packging & Delivery
Min Order1 piece
Briefing
Vacuum conical reducer adaptor,ISO to KF conical reducing adaptor to connect different size different standard flange.which is ISO flange on one end and KF flange on the other.
Detailed
Vacuum Flange ISO-KF Conical Reducing Adaptor Fittings Wholesale Feature
●Application:Used to connect vacuum interfaces of different sizes, allowing conversion from ISO interface to KF interface, suitable for stainless steel connections in vacuum systems
●Material: Typically made from materials like ,stainless steel304/316/316L, these adaptor resist corrosion an maintain a vacuum seal under high vacuum conditions.
●Packaging: Sealed packaging is usually used to ensure that its quality and performance are not affected during transportation and storage
Vacuum Flange ISO-KF Conical Reducing Adaptor Fittings Wholesale Specifications
|
Product Name
|
Vacuum Flange ISO-KF Conical Reducing Adaptor Fittings Wholesale
|
||
Brand | RUIJIA | ||
Size | ISO80KRA40,ISO100KRA40,ISO80KRA50,ISO100KRA50 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO-KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Flange Adaptor types
|
ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.
|
||
Product parameters
Vacuum Flange ISO-KF Conical Reducing Adaptor Fittings Wholesal Unit:mm
| Model No. | Material | A | B | C |
| ISO80KRA40 | 304S.S | 110 | 55 | 63 |
| ISO100KRA40 | 304S.S | 130 | 55 | 63 |
| ISO80KRA50 | 304S.S | 110 | 75 | 63 |
| ISO100KRA50 | 304S.S | 130 | 75 | 63 |
Special Sizes Available Upon Request.
