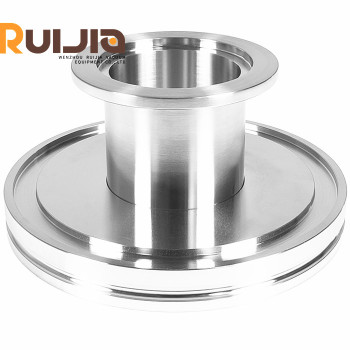

Stainless Steel ISO-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale
group nameVacuum Tubulated Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeThu, 07 Nov 2024 13:41:44 GMT
Paramtents
Size ISO63KA25,ISO63KA40,ISO63KA50,ISO80KA40,ISO80KA50,
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard ISO-KF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
Vacuum flange adaptor,stainless steel,ISO to KF adaptors are used to adapt ISO flange on one and KF flanges or fittings on the other.
Detailed
Stainless Steel ISO-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale Feature
●Application: used in high-tech fields such as semiconductors, electronics, optics, and chemistry.it is suitable for connecting vacuum pumps, vacuum chambers, and other vacuum equipment.
●Size:Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.
●Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing.
Stainless Steel ISO-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale Specifications
|
Product Name
|
Stainless Steel ISO-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale |
||
Brand | RUIJIA | ||
Size | ISO63KA25,ISO63KA40,ISO63KA50,ISO80KA40,ISO80KA50,ISO100KA40,ISO100KA50 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO-KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Flange Adaptor types
|
ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.
|
||
Product parameters
Stainless Steel ISO-KF Vacuum Flange Tubulated Adaptor Fittings Wholesale Unit:mm
| Model No. | Material | A | B | C | D |
| ISO63KA25 | 304S.S | 95 | 40 | 42 | 25.4 |
| ISO63KA40 | 304S.S | 95 | 55 | 42 | 38.1 |
| ISO63KA50 | 304S.S | 95 | 75 | 42 | 50.8 |
| ISO80KA40 | 304S.S | 110 | 55 | 42 | 38.1 |
| ISO80KA50 | 304S.S | 110 | 75 | 42 | 50.8 |
| ISO100KA40 | 304S.S | 130 | 55 | 42 | 38.1 |
| ISO100KA50 | 304S.S | 130 | 75 | 42 | 50.8 |
Special Sizes Available Upon Request.
