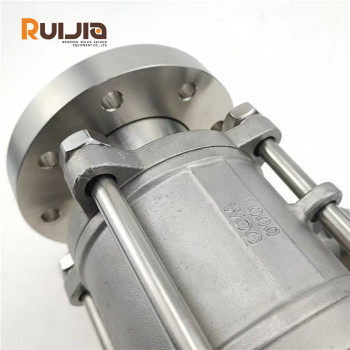

CF Vacuum 2 Way Ball Valves Stainless Steel 304 for Vacuum System Wholesales
group nameVacuum Ball Valves
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeFri, 08 Nov 2024 13:38:02 GMT
Paramtents
Size CF16,CF25,CF40,CF50,CF63,CF80,CF100.
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard CF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packging & Delivery
Min Order1 piece
Briefing
Vacuum Ball valves are used to connect or cut off the flow of media in vacuum system pipelines,Vacuum Ball valves are also widely used in pipelines in industries such as petroleum, chemical, metallurgical, power, and water treatment.
Detailed
CF Vacuum 2 Way Ball Valves Stainless Steel 304 for Vacuum System Wholesales Feature
●Application: Vacuum ball valves are used to control the flow of media, ensuring the vacuum degree and work efficiency of the system.
●Size:the size and specifications of ball valves include nominal diameter (DN), external dimensions, flange standards, gas source pressure, applicable range, leakage rate, etc.
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
CF Vacuum 2 Way Ball Valves Stainless Steel 304 for Vacuum System Wholesales Specifications
|
Product Name
|
CF Vacuum 2 Way Ball Valves Stainless Steel 304 for Vacuum System Wholesales
|
||
Brand | RUIJIA | ||
Size | CF16,CF25,CF40,CF50,CF63,CF80,CF100. | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
CF Vacuum 2 Way Ball Valves Stainless Steel 304 for Vacuum System Wholesales Unit:mm
| Flange Size | Material | Tube Size | A/inch | B/inch |
| CF16 | SS304 | 3/4'' | 1.77'' | 4.69'' |
| CF25 | SS304 | 1'' | 2.09'' | 4.88'' |
| CF40 | SS304 | 1 1/2'' | 2.72'' | 5.63'' |
| CF50 | SS304 | 2'' | 3.07'' | 6.38'' |
| CF63 | SS304 | 2 1/2'' | 3.86'' | 7.76'' |
| CF80 | SS304 | 3'' | 4.17'' | 9.02'' |
| CF100 | SS304 | 4'' | 5.31'' | 9.57'' |
Special Sizes Available Upon Request.
