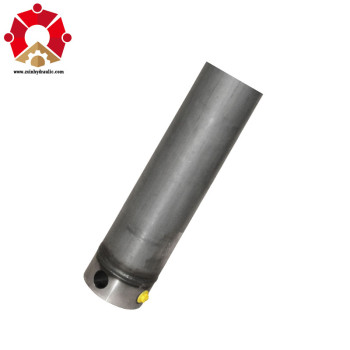

RAM 2-STAGE x 914mm CC 1363mm STROKE S/D
group nameAgricultural Trailer 2 and 3 Stage Tipping Rams
-
Min Order10 piece
brand nameZhongxin+Hydraulic Cylinders+Manufacturer
modelG20189;G20188;G3943;G3944;G3948;G3949;G19658;G18993;G3950;G18225;G3950A;G17677;G16578;G18196
payment methodT/T
-
update timeSun, 29 Sep 2024 09:50:34 GMT
Packging & Delivery
Min Order10 piece
Briefing
Replacement 2 Stage and 3 Stage Hydraulic Ram for a Fleming TR1 Trailer
Detailed
2 and 3 Stages Agricultural Tipping Rams
Product Description
Feature:
Single-acting
Typically pin mounted
Provision for grease nipples at both ends
Headed gland nuts for reducing servicing downtime
Zinc plated glands nuts for added corrosion resistance
Double lipped asymmetric piston seal design manufactured in high-performance polyurethane
Heavy-duty wiper ring featuring a front flap that covers the gland face preventing a water/slurry trap so common with conventional wiper
Piston bearing rings: all pistons fitted with two bearings to give maximum internal support, manufactured to very tight tolerances and made from woven fabric reinforced with a polyester resin
Gland bearing rings: all gland nuts fitted with 30/40mm long hard-wearing Acetal bearing strip.Detailed Pictures
| Stage | Part No | Stage Tonnage’s | Close | Stroke | E | D | Rod | H/S | T |
| 2 Stage | 60-2-700 | 4/2 | 533 | 700 | 20.25 | 70 | 32 | 38 | 3/8 BSP |
| 60-2-953 | 4/2 | 660 | 953 | 20.25 | 70 | 32 | 38 | 3/8 BSP | |
| 60-2-1107 | 4/2 | 737 | 1107 | 20.25 | 70 | 32 | 38 | 3/8 BSP | |
| 75-2-1070 | 7/4 | 735 | 1070 | 25.8 | 90 | 45 | 45 | 1/2 BSP | |
| 75-2-1384 | 7/4 | 914 | 1384 | 25.8 | 90 | 45 | 67 | 1/2 BSP | |
| 75-2-1372 | 7/4 | 920 | 1372 | 25.8 | 90 | 45 | 79 | 1/2 BSP | |
| 75-2-830 | 7/4 | 610 | 830 | 25.8 | 90 | 45 | 40 | 1/2 BSP | |
| 75-2-953 | 7/4 | 660 | 953 | 25.8 | 90 | 45 | 28.5 | 1/2 BSP | |
| 75-2-700 | 7/4 | 555 | 700 | 25.8 | 90 | 45 | 50 | 1/2 BSP | |
| 75-2-2434 | 7/4 | 1422 | 2434 | 25.8 | 90 | 45 | 50 | 1/2 BSP | |
| 75-2-1258 | 7/4 | 812.5 | 1258 | 25.8 | 90 | 45 | 28.5 | 1/2 BSP | |
| 75-2-600 | 7/4 | 500 | 600 | 25.8 | 90 | 45 | 45 | 1/2 BSP | |
| 95-2-1375 | 10/5 | 876 | 1375 | 25.8 | 105 | 45 | 45 | 1/2 BSP | |
| 95-2-969 | 10/5 | 673 | 969 | 25.8 | 105 | 45 | 45 | 1/2 BSP | |
| 95-2-1384 | 10/5 | 914 | 1384 | 25.8 | 105 | 45 | 78.5 | 1/2 BSP | |
| 95-2-1753 | 10/5 | 1067 | 1753 | 25.8 | 105 | 45 | 47 | 1/2 BSP | |
| 95-2-1587 | 10/5 | 978 | 1587 | 25.8 | 105 | 45 | 41 | 1/2 BSP | |
| 95-2-1746 | 10/5 | 1102 | 1746 | 25.8 | 105 | 45 | 85.5 | 1/2 BSP | |
| 95-2-1321 | 10/5 | 876 | 1321 | 25.8 | 105 | 45 | 72 | 1/2 BSP | |
| 95-2-1035 | 10/5 | 711 | 1035 | 25.8 | 105 | 45 | 50 | 1/2 BSP | |
| 95-2-1867 | 10/5 | 1156 | 1867 | 25.8 | 105 | 45 | 79 | 1/2 BSP | |
| 95-2-729 | 10/5 | 553 | 729 | 25.8 | 105 | 45 | 45 | 1/2 BSP | |
| 95-2-820 | 10/5 | 610 | 820 | 25.8 | 105 | 45 | 56.5 | 1/2 BSP | |
| 110-2-2141 | 12/8 | 1280 | 2141 | 32.5 | 120 | 50 | 47 | 1/2 BSP | |
| 110-2-1727 | 12/8 | 1067 | 1727 | 32.5 | 120 | 50 | 41 | 1/2 BSP | |
| 110-2-1403 | 12/8 | 914 | 1403 | 32.5 | 120 | 50 | 50 | 1/2 BSP | |
| 110-2-1075 | 12/8 | 775 | 1075 | 32.5 | 120 | 50 | 75 | 1/2 BSP | |
| 110-2-997 | 12/8 | 711 | 997 | 32.5 | 120 | 50 | 50 | 1/2 BSP | |
| 110-2-1607 | 12/8 | 1016 | 1607 | 32.5 | 120 | 50 | 50 | 1/2 BSP | |
| 3 Stage | 95-3-1993 | 10/7/4 | 924 | 1993 | 25.8 | 105 | 45 | 72 | 1/2 BSP |
| 95-3-1894 | 10/7/4 | 876 | 1894 | 25.8 | 105 | 45 | 57 | 1/2 BSP | |
| 95-3-2299 | 10/7/4 | 1026 | 2299 | 25.8 | 105 | 45 | 57 | 1/2 BSP | |
| 95-3-1420 | 10/7/4 | 711 | 1420 | 25.8 | 105 | 45 | 50 | 1/2 BSP | |
| 95-3-1566 | 10/7/4 | 759 | 1566 | 25.8 | 105 | 45 | 49.5 | 1/2 BSP | |
| 95-3-2023 | 10/7/4 | 1067 | 2023 | 25.8 | 105 | 45 | 60 | 1/2 BSP | |
| 95-3-1726 | 10/7/4 | 813 | 1726 | 25.8 | 105 | 45 | 50 | 1/2 BSP | |
| 95-3-2563 | 10/7/4 | 1092 | 2563 | 25.8 | 105 | 45 | 50 | 1/2 BSP | |
| 110-3-2821 | 12/8/5 | 1245 | 2821 | 32.5 | 120 | 50 | 109 | 1/2 BSP | |
| 110-3-2032 | 12/8/5 | 914 | 2032 | 32.5 | 120 | 50 | 41 | 1/2 BSP | |
| 110-3-2449 | 12/8/5 | 1092 | 2449 | 32.5 | 120 | 50 | 80 | 1/2 BSP | |
| 110-3-2323 | 12/8/5 | 1016 | 2323 | 32.5 | 120 | 50 | 46 | 1/2 BSP | |
| 110-3-2992 | 12/8/5 | 1245 | 2992 | 32.5 | 120 | 50 | 52 | 1/2 BSP |
