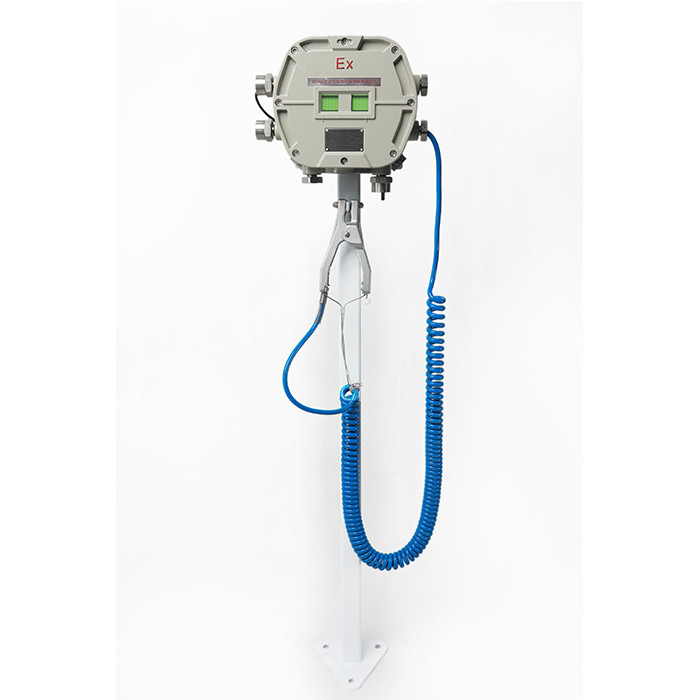

ATEX approved Static Grounding Monitoring System for Loading and unloading area

FOB Price
  • US $817.00

    5 - 50 piece

  • US $736.00

    51 - 100 piece

  • US $654.00

    101 - 1,000 piece

  • group nameStatic Grounding Monitoring System

  • Min Order5 piece

  • brand nameALPTEC Static Grounding Solutions Manufacturer

  • modelSLA-S-Y

  • payment methodL/C, Western Union, T/T, Paypal

  • update timeThu, 07 Nov 2024 22:39:34 GMT

Paramtents

  • Structure Controller+ Grounding Cable

  • Controller Material Aluminum

  • Cable Length 5m 7m 10m

  • Cable Material Copper

  • Certification ATEX cert.

Packging & Delivery

  • Size45cm x 35cm x 16cm

  • Weight6.80kg / piece

  • Min Order5 piece

Briefing

The case introduces the advantages, specifications and diagram of Static Grounding Monitoring System.

Detailed

1. Introduction
The "Static Grounding Monitoring System" functions as a part of an Overfill Protection & Earthing System. These provide a visual green light indicating a confirmed grounding condition of road tanker vehicles during the transfer of flammable and combustible materials. A red light indicates the absence of dependable grounding. An interlock circuit inside the control panel will prevent pumps and equipment from starting until a satisfactory ground is established. The interlock circuit will also shut off pumps and equipment if the ground is lost during the pumping operation.

2. Advantages

1. Static earthing & interlock systems is ATEX approved.

2. Module integrated design, easy to install and maintain.

3. Flameproof enclosure: Incorporating Intrinsically Safe Static Grounding Monitoring System. Vehicle static earthing system can be used outdoors for controller’s degree of protection is IP65.

Advantage:

1. ATEX approved.

2. Easy to install.

3. Price moderate.

3. Specifications

Input Power: 85 VAC to 250 VAC 50 Hz
Input Current: <60m A
Output Signal: On-Off signal
Monitoring Set Point: 10 ohms
Alarm: Visible alarm
Spiral Cable: Extendable to 5.3 m (17.4 ft.)
Output Safety Parameters:
Um:250 VAC, Uo: 14.28 VDC, Io: 27.2 mA, Po:97 mW,Co:4.17μF, Lo:192mH
Indicator: Lamp (Green=satisfactory ground and red=no ground)
Ambient Temperature: -20℃ to +55℃(-4℉ to +131℉)
EU-Type Examination Certification No.: Presafe 16 ATEX 8909X
QAN Certificate No.: Presafe 16 ATEX 7744Q
Standard: EN60079-0, EN60079-1, EN60079-11
Applicable Directive:2014/34/EU
4. Installation Diagram &  Dimensions
5. Package


Packaging: cartons(one pc in one carton)

Dimensions:45*35*16 cm

Gross Weight: 6.8 kgs

Delivery time: 2 days after payment

Delivery: by sea or courier such as FedEx, DHL, TNT, UPS
