C2040 Double Pitch Sprocket
C2040 Double Pitch SprocketC2040 Double Pitch SprocketC2040 Double Pitch SprocketC2040 Double Pitch Sprocket

C2040 Double Pitch Sprocket

FOB Price
  • US $0.50

    1 - 10,000 piece

  • group nameANSI 2040 Sprockets

  • Min Order1 piece

  • brand nameCTS-ChinaTransmissionS

  • model2040 chain sprocket

  • payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal

  • update timeThu, 07 Nov 2024 22:44:07 GMT

contact supplier

Paramtents

  • Material Carbon Steel

  • Color Black

  • Surface Treatment Blackening/Galvanizing/Phosphating

  • Accuracy Precision teeth for optimum performance

  • Quality Superior ANSI Sprocket

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

These double pitch sprocket can easily be bored to a metric or standard size to fit your application.

Detailed

About C2040 Double Pitch Chain Sprockets

2040 double-pitch sprockets are manufactured specifically for the C2040 double-pitch roller chain. Our double-pitch sprockets are crafted from high-quality steel, with extra-hardened teeth and a black oxide coating for enhanced durability. These high-strength sprockets are precision-engineered to meet strict tolerance requirements. Additionally, these double pitch sprocket has a stock bore but we can make the sprocket bored out to your requested bore size.


For a quotation or other information on C2040 sprockets, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket

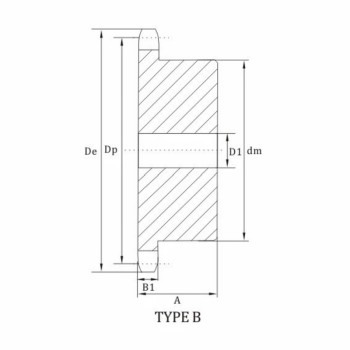

C2040 Chain Sprocket Dimension Chart

C2040 Double Pitch Chain Sprocket Technical Data

Pitch
1"
Tooth width B1
0.284"
Sprocket Size  No.
Teeth		Outside Dia(De) Pitch Dia(Dp)TypeBore Dia(D1)  Hub Dia(Dm)LTB(A)Wt.Lbs.
(Approx.)
MinMax.
2040B11  11 2.000 1.852  B  1/213/161 3/8★  7/8.34
2040B12  12 2.170 2.000  B  1/213/161 9/16★  7/8.44
2040B13  13 2.330 2.152  B  1/221/321 9/16★  7/8.48
2040B14  14 2.490 2.305  B  1/21  1/321 11/16★  7/8.60
2040B15  15 2.650 2.458  B  5/81  7/321 23/32  7/8.66
2040B16  16 2.810 2.613  B  5/81  9/321 7/8  7/8.76
2040B17  17 2.980 2.768  B  5/81  5/162  3/64 1 1.00
2040B18  18 3.140 2.924  B  5/81 15/322  7/32 1 1.16
2040B19  19 3.300 3.080  B  5/81 5/82 3/8 1 1.36
2040B20  20 3.460 3.236  B  5/81  3/4 2 35/64 1 1.54
2040B21  21 3.620 3.392  B  5/81 25/322 45/64 1 1.74
2040B22  22 3.780 3.549  B  5/81 7/82 7/8 1 1.92
2040B23  23 3.940 3.706  B  5/82 3  1 2.16
2040B24  24 4.100 3.864  B  5/82 1/43 1/4 1 2.44
2040B25  25 4.260 4.021  B  5/82 1/43 1/4 1 2.48
2040B26  26 4.420 4.179  C  5/82 1/43 1/4 1 2.60
2040B28  28 4.740 4.494  C  5/82 1/43 1/4 1 .34
2040B30  30 5.060 4.810  C  5/82 1/43 1/4 1 .33
★ Has recessed groove in hub for chain clearance.
Maximum bores shown will accommodate standard keyseat and set screw over keyseat.
Slightly large bores are possible with no keyseat, shallow keyseat, or set screw at angle to the keyseat.
