ANSI 100B Sprocket With QD Bushing
ANSI 100B Sprocket With QD BushingANSI 100B Sprocket With QD BushingANSI 100B Sprocket With QD BushingANSI 100B Sprocket With QD Bushing

ANSI 100B Sprocket With QD Bushing

  • group nameANSI 100 Sprockets

  • Min Order1 piece

  • brand nameCTS-ChinaTransmissionS

  • model100B Sprockets

  • payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal

  • update timeSat, 21 Sep 2024 22:36:31 GMT

contact supplier

Paramtents

  • Material Carbon Steel

  • Color Black

  • Surface Treatment Blackening/Galvanizing/Phosphating

  • Accuracy Precision teeth for optimum performance

  • Quality Superior ANSI Sprocket

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

#100B sprockets with QD Bushing are precision-engineered for optimal power transmission and industrial machinery.

Detailed

About 100B Sprockets with QD Bushings

100B sprockets with QD bushings are designed to meet ANSI standards, it features a Quick Detachable (QD) Taper Lock bushing, which allows for easy installation and removal without damaging the shaft or sprocket. Their compatibility with standard chains and flexibility in shaft mounting make them a versatile and reliable choice for engineers and technicians.


For a quotation or other information on #100B sprockets, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket

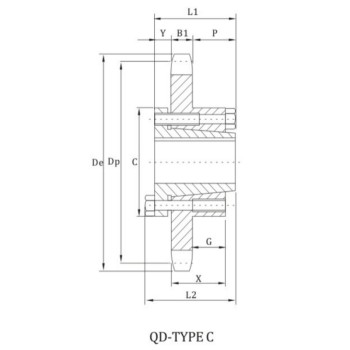

100B sprocket with qd bushings dimension chart

100B Sprocket with QD Bushings Technical Data

Pitch
1 1/4"
Roller φ
0.750"
No.
Teeth		Sprocket SizeBushing Type DeDpType Max
Bore		L1L2 CYP GXB1 Weight(Approx)
With HubRim Only
11100SDS11SDS5.010  4.437 B21 1/2 1 1/23  3/16 5/8   1/16 3/40.6923.0  2.0
12100SDS12SDS5.420  4.830 B21 1/2 1 1/23  3/16 5/8   1/16 3/40.6923.6  2.6
13100SK13SK5.820  5.223 B2 5/82 1/8 1 1/83 7/81 13/64   9/161 1/40.6925.3  3.3
14100SK14SK6.230  5.617 B2 5/82 1/8 1 1/83 7/81 13/64   9/161 1/40.6926.1  4.1
15100SF15SF6.630  6.012 B2 15/162 1/4 1 1/44 5/81 19/64   9/161 1/40.6927.8  4.8
16100SF16SF7.030  6.407 B2 15/162 1/4 1 1/44 5/81 19/64   9/161 1/40.6928.6  5.6
17100SF17SF7.440  6.803 B2 15/162 1/4 1 1/44 5/81 19/64   9/161 1/40.6929.5  6.5
18100E18E7.840  7.198 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69219.0  9.0
19100E19E8.240  7.595 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69220.2  10.2
20100E20E8.640  7.991 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69221.6  11.6
21100E21E9.040  8.387 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69222.5  12.5
22100E22E9.440  8.783 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69223.5  13.5
23100E23E9.840  9.180 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69224.6  14.6
24100E24E10.250  9.577 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69225.7  15.7
25100E25E10.650  9.973 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69226.8  16.8
26100E26E11.050  10.370 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69228.1  18.1
27100E27E11.440  10.767B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69229.2  19.2
28100E28E11.840  11.164 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69230.7  20.7
30100E30E12.640  11.958 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69233.2  23.2
32100E32E13.440  12.753 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69235.4  25.4
35100E35E14.640  13.945 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69240.5  30.5
36100E36E15.040  14.342 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69242.5  32.3
40100E40E16.630  15.931 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69249.1  39.1
42100E42E17.430  16.727 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69253.4  43.4
45100E45E18.630  17.920 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69258.9  48.9
48100E48E19.820  19.112 B13 1/22 5/8 2 15/1661 13/16 1/8 15/161 5/80.69264.0  54.0
54100E54E22.210  21.498 C3 1/22 5/8 2 15/166  7/8 1  1/16 15/161 5/80.69272.0  62.0
60100E60E24.600  23.884 C3 1/22 5/8 2 15/166  7/8 1  1/16 15/161 5/80.69284.0  74.0
70100F70F28.580  27.862 C3 15/163 5/8 46 5/811 15/16 1 13/162 1/20.692110.5  99.0
72100F72F29.380  28.657 C3 15/163 5/8 46 5/811 15/16 1 13/162 1/20.692117.5  106.0
80100F80F32.570  31.839 C3 15/163 5/8 46 5/811 15/16 1 13/162 1/20.692134.5  123.0
84100F84F34.160  33.430 C3 15/163 5/8 46 5/811 15/16 1 13/162 1/20.692151.5  140.0
