ANSI 120B Sprocket With QD Bushing
ANSI 120B Sprocket With QD BushingANSI 120B Sprocket With QD BushingANSI 120B Sprocket With QD BushingANSI 120B Sprocket With QD Bushing

ANSI 120B Sprocket With QD Bushing

  • group nameANSI 120 Sprockets

  • Min Order1 piece

  • brand nameCTS-ChinaTransmissionS

  • model120B Sprockets

  • payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal

  • update timeSat, 21 Sep 2024 10:51:54 GMT

contact supplier

Paramtents

  • Material Carbon Steel

  • Color Black

  • Surface Treatment Blackening/Galvanizing/Phosphating

  • Accuracy Precision teeth for optimum performance

  • Quality Superior ANSI Sprocket

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

#120B sprockets with QD Bushing are precision-engineered for optimal power transmission and industrial machinery.

Detailed

About 120B Sprockets with QD Bushings

120B sprockets with QD bushings are designed to meet ANSI standards, it features a Quick Detachable (QD) Taper Lock bushing, which allows for easy installation and removal without damaging the shaft or sprocket. Their compatibility with standard chains and flexibility in shaft mounting make them a versatile and reliable choice for engineers and technicians.


For a quotation or other information on #120B sprockets, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket

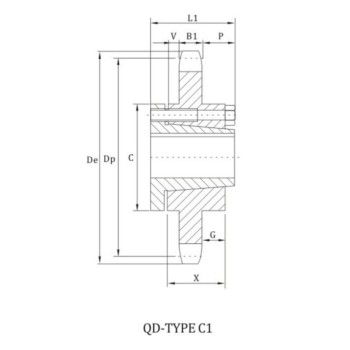

120B sprocket with qd bushings dimension chart

120B Sprocket with QD Bushings Technical Data

Pitch
1 1/2"
Roller φ
0.875"
No.
Teeth		Sprocket SizeBushing Type DeDpType Max
Bore		L1L2 CYP GXB1 Weight(Approx)
With HubRim Only
12120SF12SF6.500  5.796 B2 15/162 1/4 2 1/44 5/81  5/64 21/641 1/40.9247.7  4.7
13120SF13SF6.990  6.268 B2 15/162 1/4 2 1/44 5/81  5/64 21/641 1/40.9249.1  6.1
14120SF14SF7.470  6.741 B2 15/162 1/4 2 1/44 5/81  5/64 21/641 1/40.92410.4  7.4
15120SF15SF7.960  7.215 B2 15/162 1/4 2 1/44 5/81  5/64 21/641 1/40.92411.8  8.0
16120E16E8.440  7.689 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92421.2  11.2
17120E17E8.920  8.163 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92423.4  13.4
18120E18E9.410  8.638 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92424.8  14.8
19120E19E9.890  9.113 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92426.5  16.5
20120E20E10.370  9.589 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92429.2  19.2
21120E21E10.850  10.064 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92429.9  19.9
22120E22E11.330  10.540 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92431.6  21.6
23120E23E11.810  11.016 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92433.8  23.8
24120E24E12.290  11.492 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92435.8  25.8
25120E25E12.770  11.968 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92438.1  28.1
26120E26E13.250  12.444 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92439.9  29.9
28120E28E14.210  13.397 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92449.7  34.7
30120E30E15.170  14.350 B13 1/22 5/8 2 15/1661  9/16 1/8 45/641 5/80.92449.4  39.4
32120F32F16.130  15.303 C3 15/163 5/8 46 5/811 11/16 1 37/642 1/20.92462.0  50.5
35120F35F17.570  16.734 C3 15/163 5/8 46 5/811 11/16 1 37/642 1/20.92471.0  59.5
36120F36F18.050  17.211 C3 15/163 5/8 46 5/811 11/16 1 37/642 1/20.92474.9  63.4
40120F40F19.960  19.118 C3 15/163 5/8 46 5/811 11/16 1 37/642 1/20.92488.5  77.0
42120F42F20.920  20.072 C3 15/163 5/8 46 5/811 11/16 1 37/642 1/20.92494.5  83.0
45120F45F22.350  21.503 C3 15/163 5/8 46 5/811 11/16 1 37/642 1/20.92495.5  84.0
48120F48F23.790  22.935 C3 15/163 5/8 46 5/811 11/16 1 37/642 1/20.924103.5  92.0
54120F54F26.650  25.798 C3 15/163 5/8 46 5/811 11/16 1 37/642 1/20.924125.0  114.0
60120J60J29.520  28.661 C4  7/164 1/2 57 1/41  3/162  5/16 2 17/643  3/160.924159.0  140.0
70120J70J34.300  33.434 C4  7/164 1/2 57 1/41  3/162  5/16 2 17/643  3/160.924196.0  177.0
80120J80J39.080  38.207 C4  7/164 1/2 57 1/41  3/162  5/16 2 17/643  3/160.924241.0  222.0
