ANSI 100B Sprocket With Split Taper Bushing
ANSI 100B Sprocket With Split Taper BushingANSI 100B Sprocket With Split Taper BushingANSI 100B Sprocket With Split Taper Bushing

ANSI 100B Sprocket With Split Taper Bushing

  • group nameANSI 100 Sprockets

  • Min Order1 piece

  • brand nameCTS-ChinaTransmissionS

  • model100B Sprockets

  • payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal

  • update timeFri, 08 Nov 2024 00:15:29 GMT

contact supplier

Paramtents

  • Material Carbon Steel

  • Color Black

  • Surface Treatment Blackening/Galvanizing/Phosphating

  • Accuracy Precision teeth for optimum performance

  • Quality Superior ANSI Sprocket

  • Interchangeability Directly interchangeable with other brands

Packging & Delivery

  • Min Order1 piece

Briefing

#100B sprockets with split taper bushing are precision-engineered for optimal power transmission and industrial machinery.

Detailed

About 100B Sprockets with Split Taper Bushings

100B sprockets with split taper bushings are designed for easy installation and removal on shafts of varying diameters, making them highly versatile for different applications. The split taper bushing system allows for a tighter grip on the shaft compared to taper-lock sprockets, which is particularly beneficial in high-torque scenarios. They are typically used in conjunction with ANSI standard roller chains to suit different operational requirements. The design often includes a keyway to fit a corresponding key on the bushing, ensuring secure attachment and efficient torque transmission.


For a quotation or other information on #100B sprockets, please contact us and we will be happy to help you.


Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.


Features

  • High-precision Sprocket
  • Durable Sprocket
  • Directly interchangeable with other brands
  • OEM Sprocket

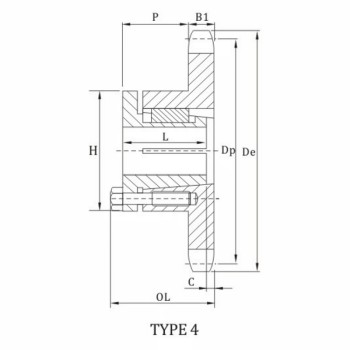

100B sprocket with split taper bushings dimension chart

100B Sprocket with Split Taper Bushings Technical Data

Pitch
1 1/4"
Roller φ
0.750"
Sprocket SizeSplit Bushing TypeBore
Range
(inch)		 De
(inch)		Dp
(inch)		No.
Teeth		 Type B1
(inch)		OL
(inch)		 L
(inch)		P
(inch)		  C
(inch)		  H
(inch)		Wt.
Less
(Bushing)
H100P11P11/2-1 3/45.01  4.437 1140.692 2  3/161 15/161 1/40 32.8
H100Q12Q13/4-2 11/165.42  4.830 1240.692 2 27/322 1/21 7/8  1/16 4 1/83.5
H100Q13Q13/4-2 11/165.82  5.223 1340.692 2 27/322 1/21 7/8  1/16 4 1/84.3
H100Q14Q13/4-2 11/166.23  5.617 1440.692 2 25/322 1/21 13/160 4 1/85.6
H100Q15Q13/4-2 11/166.63  6.012 1540.692 2 25/322 1/21 13/160 4 1/86.6
H100Q16Q13/4-2 11/167.03  6.407 1640.692 2 25/322 1/21 13/160 4 1/87.4
H100Q17Q13/4-2 11/167.44  6.803 1740.692 2 25/322 1/21 13/160 4 1/88.2
H100Q18Q13/4-2 11/167.84  7.198 1840.692 2 25/322 1/21 13/160 4 1/89.0
H100Q19Q13/4-2 11/168.24  7.595 1940.692 2 25/322 1/21 13/160 4 1/89.8
H100Q20Q13/4-2 11/168.64  7.991 2040.692 2 25/322 1/21 13/160 4 1/810.9
H100Q21Q13/4-2 11/169.04  8.387 2140.692 2 25/322 1/21 13/160 4 1/811.8
H100Q22Q13/4-2 11/169.44  8.783 2240.692 2 25/322 1/21 13/160 4 1/812.6
H100Q23Q13/4-2 11/169.84  9.180 2340.692 2 25/322 1/21 13/160 4 1/813.8
H100Q24Q13/4-2 11/1610.25  9.577 2440.692 2 25/322 1/21 13/160 4 1/815.4
H100R24R11 1/8-3 3/410.25  9.577 2440.692 3  5/322 7/82  3/160 5 3/815.6
H100Q25Q13/4-2 11/1610.65  9.973 2540.692 2 25/322 1/21 13/160 4 1/816.0
H100Q26Q13/4-2 11/1611.05  10.370 2640.692 2 25/322 1/21 13/160 4 1/817.3
H100R26R11 1/8-3 3/411.05  10.370 2640.692 3  5/322 7/82  3/160 5 3/817.9
H100R27R11 1/8-3 3/411.45  10.767 2740.692 3  5/322 7/82  3/160 5 3/818.0
H100Q28Q13/4-2 11/1611.84  11.164 2840.692 2 25/322 1/21 13/160 4 1/819.6
H100Q30Q13/4-2 11/1612.64  11.958 3040.692 2 25/322 1/21 13/160 4 1/822.4
100P11P11/2-1 3/45.01  4.437 1140.692 2  3/161 8/91  1/4 0 3    3.0
100Q12Q13/4-2 11/165.42  4.830 1240.692 2 27/322 1/21  7/8   1/16 4 1/83.5
100Q13Q13/4-2 11/165.82  5.223 1340.692 2 27/322 1/21 7/8  1/16 4 1/84.3
100Q14Q13/4-2 11/166.23  5.617 1440.692 2 25/322 1/21 13/160 4 1/85.6
100Q15Q13/4-2 11/166.63  6.012 1540.692 2 25/322 1/21 13/160 4 1/86.5
100Q16Q13/4-2 11/167.03  6.407 1640.692 2 25/322 1/21 13/160 4 1/87.4
100Q17Q13/4-2 11/167.44  6.803 1740.692 2 25/322 1/21 13/160 4 1/88.2
100Q18Q13/4-2 11/167.84  7.198 1840.692 2 25/322 1/21 13/160 4 1/89.0
100Q19Q13/4-2 11/168.24  7.595 1940.692 2 25/322 1/21 13/160 4 1/89.9
100Q20Q13/4-2 11/168.64  7.991 2040.692 2 25/322 1/21 13/160 4 1/810.8
100Q21Q13/4-2 11/169.04  8.387 2140.692 2 25/322 1/21 13/160 4 1/811.7
100R21R11 1/8-3 3/49.04  8.387 2140.692 3  5/322 7/82  3/160 5 3/813.3
100Q22Q13/4-2 11/169.44  8.783 2240.692 2 25/322 1/21 13/160 4 1/812.5
100Q23Q13/4-2 11/169.84  9.180 2340.692 2 25/322 1/21 13/160 4 1/813.9
100Q24Q13/4-2 11/1610.25  9.577 2440.692 2 25/322 1/21 13/160 4 1/815.5
100R24R11 1/8-3 3/410.25  9.577 2440.692 3  5/322 7/82  3/160 5 3/816.1
100Q25Q13/4-2 11/1610.65  9.973 2540.692 2 25/322 1/21 13/160 4 1/816.2
100R25R11 1/8-3 3/410.65  9.973 2540.692 3  5/322 7/82  3/160 5 3/817.0
100Q26Q13/4-2 11/1611.05  10.370 2640.692 2 25/322 1/21 13/160 4 1/817.9
100R26R11 1/8-3 3/411.05  10.370 2640.692 3  5/322 7/82  3/160 5 3/818.5
100Q27Q13/4-2 11/1611.45  10.767 2740.692 2 25/322 1/21 13/160 4 1/818.2
100R27R11 1/8-3 3/411.45  10.767 2740.692 3  5/322 7/82  3/160 5 3/819.6
100Q28Q13/4-2 11/1611.84  11.164 2840.692 2 25/322 1/21 13/160 4 1/819.9
100R28R11 1/8-3 3/411.84  11.164 2840.692 3  5/322 7/82  3/160 5 3/821.0
100Q30Q13/4-2 11/1612.64  11.958 3040.692 2 25/322 1/21 13/160 4 1/822.6
100R30R11 1/8-3 3/412.64  11.958 3040.692 3  5/322 7/82  3/160 5 3/824.5
100R31R11 1/8-3 3/413.04  12.356 3140.692 3  5/322 7/82  3/160 5 3/825.8
100R32Q13/4-2 11/1613.44  12.753 3240.692 2 25/322 1/21 13/160 4 1/825.3
100Q32R11 1/8-3 3/413.44  12.753 3240.692 3  5/322 7/82  3/160 5 3/826.5
100R35Q13/4-2 11/1614.64  13.945 3540.692 2 25/322 1/21 13/160 4 1/830.2
100Q35R11 1/8-3 3/414.64  13.945 3540.692 3  5/322 7/82  3/160 5 3/829.8
100R36R11 1/8-3 3/415.04  14.342 3640.692 3  5/322 7/82  3/160 5 3/833.0
100R40R11 1/8-3 3/416.63  15.932 4040.692 3  5/322 7/82  3/160 5 3/840.9
100R42R11 1/8-3 3/417.43  16.727 4240.692 3  5/322 7/82  3/160 5 3/844.3
100R45R11 1/8-3 3/418.63  17.920 4540.692 3  5/322 7/82  3/160 5 3/850.5
100R48R11 1/8-3 3/419.82  19.112 4840.692 3  5/322 7/82  3/160 5 3/857.5
100R54R11 1/8-3 3/422.21  21.498 5450.692 3  5/322 7/82  3/160 5 3/869.0
100R60R11 1/8-3 3/424.55  23.884 6050.692 3  5/322 7/82  3/160 5 3/884.0
100R70R11 1/8-3 3/428.53  27.862 7050.692 3  5/322 7/82  3/160 5 3/8104.0
100R72R11 1/8-3 3/429.33  28.657 7250.692 3  5/322 7/82  3/160 5 3/8106.0
100R80R11 1/8-3 3/432.52  31.839 8050.692 3  5/322 7/82  3/160 5 3/8135.0
100R84R11 1/8-3 3/434.11  33.430 8450.692 3  5/322 7/82  3/160 5 3/8138.0
