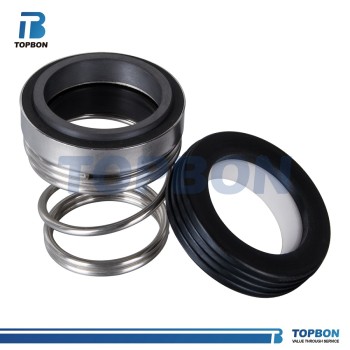

Mechanical Seal TBMG912 Replace Burgmann MG9
group nameParallel Spring Diaphragm Mechanical Seal
-
Min Order1 piece
brand nameTOPBON Mechanical Seal Manufacturer
modelTBMG912
payment methodT/T
-
update timeTue, 05 Nov 2024 02:31:56 GMT
Paramtents
Temperature -20℃-120℃
Speed ≦10m/s
Pressure ≦1.0MPA
Rotary Ring Material CAR/SIC/TC
Stationary Ring Material CER/SIC/TC
O-Ring Material VIT/NBR/EPDM
Spring & Metal Parts SUS304/SUS316
Application Clean Water，Sewage Water，Oil
Packging & Delivery
Min Order1 piece
Briefing
TBMG912 mechanical seal
Replace
Burgmann MG9
AES mechanical seal
John Crane mechanical seal
Replace
Burgmann MG9
AES mechanical seal
John Crane mechanical seal
Detailed
Mechanical seal TBMG912
Replace:
Burgmann MG9
Product details
SIZE
|
Size/ Metric |
d | D3 | D2 | D1 | L1 | L12 | L13 |
L14
|
L2
|
|
10
|
10 | 19.6 | 17 | 21 | 44.0 | 33.4 | 25.9 |
25.0
|
6.6
|
|
12
|
12 | 21.6 | 19 | 23 | 44.0 | 33.4 | 25.9 |
25.0
|
6.6
|
|
14
|
14 | 24.0 | 21 | 25 | 44.0 | 33.4 | 28.4 |
25.0
|
6.6
|
|
15
|
15 | 25.0 | - | - | 44.0 | - | - |
25.0
|
-
|
|
16
|
16 | 26.5 | 23 | 27 | 44.0 | 33.4 | 28.4 |
25.0
|
6.6
|
|
18
|
18 | 29.0 | 27 | 33 | 44.0 | 37.5 | 30.0 |
25.0
|
7.5
|
|
20
|
20 | 31.5 | 29 | 35 | 44.0 | 37.5 | 30.0 |
25.0
|
7.5
|
|
22
|
22 | 33.0 | 31 | 37 | 44.0 | 37.5 | 30.0 |
25.0
|
7.5
|
|
24
|
24 | 37.0 | 33 | 39 | 44.0 | 42.5 | 32.5 |
25.0
|
7.5
|
|
25
|
25 | 38.0 | 34 | 40 | 44.0 | 42.5 | 32.5 |
25.0
|
7.5
|
|
28
|
28 | 41.0 | 37 | 43 | 60.0 | 42.5 | 35.0 |
33.0
|
7.5
|
|
30
|
30 | 43.0 | 39 | 45 | 60.0 | 42.5 | 35.0 |
33.0
|
7.5
|
|
32
|
32 | 45.0 | 42 | 48 | 60.0 | 47.5 | 35.0 |
33.0
|
7.5
|
33 | 33 | 46.0 | 42 | 48 | 60.0 | 47.5 | 35.0 | 33.0 | 7.5 |
35 | 35 | 48.0 | 44 | 50 | 60.0 | 47.5 | 35.0 | 33.0 | 7.5 |
38 | 38 | 52.5 | 49 | 56 | 60.0 | 46.0 | 36.0 | 33.0 | 9.0 |
40 | 40 | 55.5 | 51 | 58 | 60.0 | 46.0 | 36.0 | 33.0 | 9.0 |
43 | 43 | 58.5 | 54 | 61 | 71.0 | 51.0 | 36.0 | 41.0 | 9.0 |
45 | 45 | 60.5 | 56 | 63 | 71.0 | 51.0 | 36.0 | 41.0 | 9.0 |
48 | 48 | 64.0 | 59 | 66 | 71.0 | 51.0 | 36.0 | 41.0 | 9.0 |
50 | 50 | 66.0 | 62 | 70 | 72.5 | 50.5 | 38.0 | 42.5 | 9.5 |
53 | 53 | 69.0 | 65 | 73 | 71.0 | 59.0 | 36.5 | 41.0 | 11.0 |
55 | 55 | 71.0 | 67 | 75 | 71.0 | 59.0 | 36.5 | 41.0 | 11.0 |
58 | 58 | 76.0 | 70 | 78 | 71.0 | 59.0 | 41.5 | 41.0 | 11.0 |
60 | 60 | 78.0 | 72 | 80 | 71.0 | 59.0 | 41.5 | 41.0 | 11.0 |
63 | 63 | 82.0 | 75 | 83 | - | 59.0 | 41.5 | - | 11.0 |
65 | 65 | 84.0 | 77 | 85 | 70.0 | 69.0 | 41.5 | 49.0 | 11.0 |
68 | 68 | 87.0 | 81 | 90 | 70.0 | 68.7 | 41.2 | 49.0 | 11.3 |
70 | 70 | 89.0 | 83 | 92 | 70.0 | 68.7 | 48.7 | 49.0 | 11.3 |
75 | 75 | 95.0 | 88 | 97 | 73.0 | 68.7 | 48.7 | 52.0 | 11.3 |
80 | 80 | 101.5 | 95 | 105 | 79.0 | 78.0 | 48.0 | 56.0 | 12.0 |
85 | 85 | - | 100 | 110 | 79.0 | 76.0 | 46.0 | 56.0 | 14.0 |
90 | 90 | 111.5 | 105 | 115 | 83.0 | 76.0 | 51.0 | 59.0 | 14.0 |
95 | 95 | - | 110 | 120 | 83.0 | 76.0 | 51.0 | 59.0 | 14.0 |
100 | 100 | 122.5 | 115 | 125 | 86.0 | 76.0 | 51.0 | 62.0 | 14.0 |
