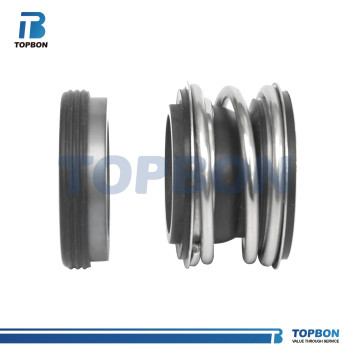

Mechanical Seals TBABS01 replace Vulcan 195, suit A.B.S. AFP series pumps
group nameABS PUMP SEAL
-
Min Order1 piece
brand nameTOPBON Mechanical Seal Manufacturer
modelTBABS01
-
update timeWed, 13 Nov 2024 04:33:27 GMT
Paramtents
Replacement Vulcan 195
Temperature： -20°Cto+120°C
Pressure： ≤1.2Mpa
Speed： ≤10m/s
Material： B,A1,Q1,Q2,U2,P,E,N,V,F,G
Packging & Delivery
Min Order1 piece
Briefing
Replacement to:
Vulcan 195
Vulcan 195
Detailed
Mechanical seal TBABS01
Replacement to:
Vulcan 195
suit A.B.S. AFP series pumps
Product details
DRAWING
SIZE
d(MM) | D1 | D3 | L1 | L2 |
15 | 35 | 28 | 17 | 4 |
20 | 35 | 36 | 21.5 | 7.5 |
25 | 40.5 | 41 | 22.5 | 8.5 |
30 | 50.8 | 47 | 24 | 9.5 |
40 | 58 | 60 | 33.5 | 11 |
45 | 65.5 | 64.3 | 30.5 | 12.5 |
55 | 76.2 | 78 | 37.5 | 13.5 |
80 | 104 | 106.5 | 40 | 15 |
d(MM) | D1 | D3 | L1 | L2 |
40 | 58 | 60 | 33.5 | 11 |
48 | 67 | 69 | 30.5 | 10 |
65 | 86 | 90 | 39 | 12 |
90 | 144 | 125 | 46.3 | 13 |
100 | 123.3 | 130 | 46 | 13.3 |
