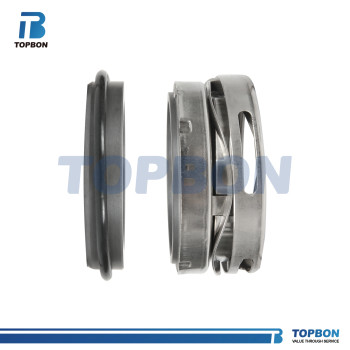

Mechanical Seals TBABS04 replace Vulcan1576, Suit ABS PUMPEX Submersible Pumps
group nameABS PUMP SEAL
-
Min Order1 piece
brand nameTOPBON Mechanical Seal Manufacturer
modelTBABS03
-
update timeWed, 13 Nov 2024 04:16:48 GMT
Paramtents
Replacement Vulcan1576, Suit ABS PUMPEX Submersible Pumps
Temperature： -20°Cto+190°C
Pressure： ≤1.2Mpa
Speed： ≤10m/s
Material： B,Q2,U2,P,E,N,V,F,G,Alfa
Packging & Delivery
Min Order1 piece
Briefing
Replacement to:
Vulcan1576, Suit ABS PUMPEX Submersible Pumps
Vulcan1576, Suit ABS PUMPEX Submersible Pumps
Detailed
Mechanical seal TBABS04
Replacement to:
Vulcan1576, Suit ABS PUMPEX Submersible Pumps
Product details
DRAWING
SIZE
|
d(mm)
|
D1 | D3 | L1 | L2 |
32 | 46.50 | 47.60 | 20.00 | 5.40 |
40 | 56.00 | 57.90 | 20.00 | 6.80 |
48 | 67.00 | 62.00 | 15.60 | 14.50 |
55 | 72.00 | 73.40 | 20.00 | 7.90 |
60 | 75.00 | 80.50 | 21.00 | 10.90 |
75 | 93.20 | 97.20 | 26.80 | 9.90 |
