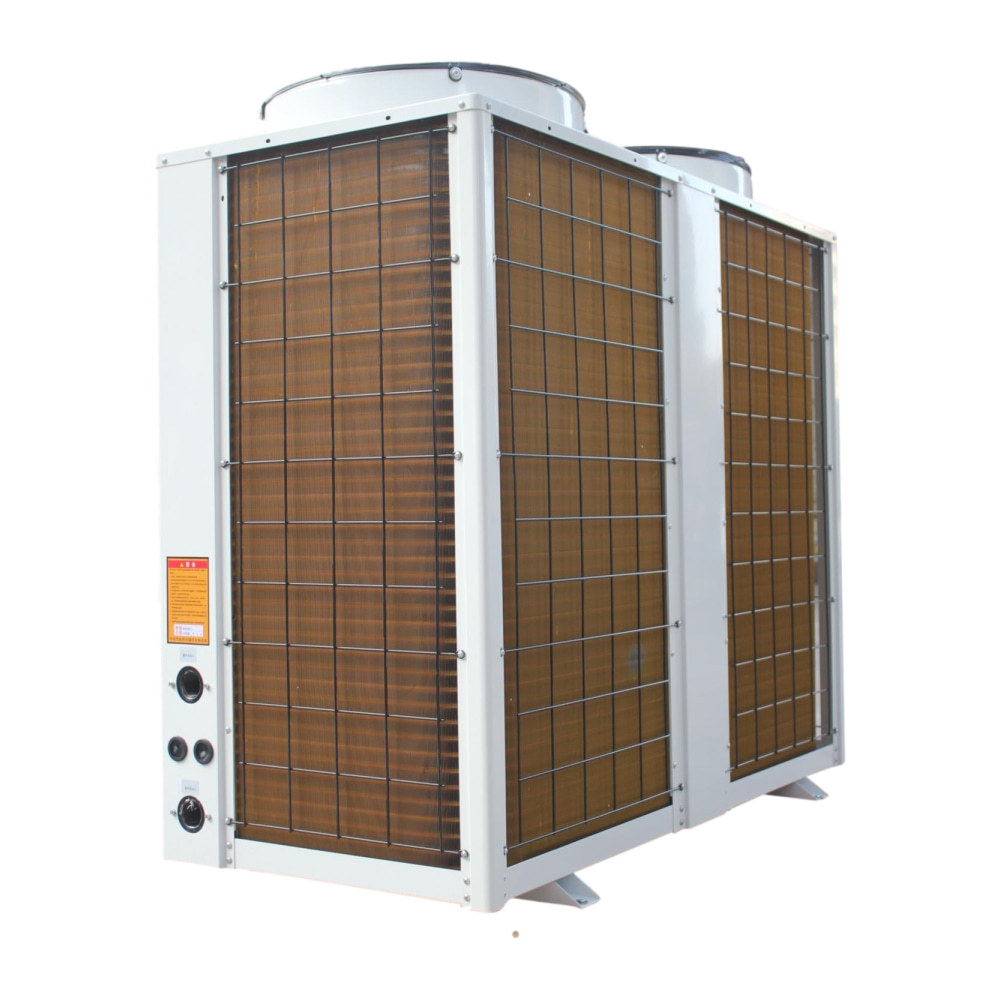

380V 40KW EVI monobloc heat pumps(SHAW-40EVIM)

contact supplier

Paramtents

Low ambient temperature 40KW EVI monobloc heat pumps for heating, hot water and cooling in summer.

1. Heating and hot water modes.

2. Heating capacity 11kw, 12kw, 16kw, 18kw, 20kw, 34kw, 40kw.

3. Work at down to -25DegC.

4. Electronic expansion valve for main circuit and EVI circuit.

5. Receives ON/OFF signal from thermostat, master controller, smart grilletc to save more energy.

6. Heating curves for more comfortable temperature and more energy-saving.

7. Monobloc type.

8. Copeland scroll EVI compressor.

9. With compressor heater.

10. With bottom plate heater.

11. With 3kw back-up electric heater.

12. With energy class A circulating pump.

13. With control for 3-way valve to switch between heating circuit and hotwater circuit.

14. With water flow switch.

15. We offer OEM service including back-up heater, circulating pump, casingdesign, painting color etc.

Model		SHAW-34EVIM	SHAW-40EVIM
Power supply	/	380V/3PH/50Hz	380V/3PH/50Hz
Refrigerant	/	R407C	R407C
Heating capacity ¹	KW	34.5	41.8
Heating power input ¹	KW	7.86	9.55
COP ¹	/	4.39	4.38
Heating capacity ²	KW	25.4	31.5
Heating power input ²	KW	7.98	9.86
COP ²	/	3.18	3.19
Heating capacity ³	KW	18.4	24.1
Heating power input ³	KW	7.91	9.98
COP ³	/	2.33	2.41
Heating capacity ⁴	KW	17.1	21.0
Heating power input ⁴	KW	7.89	9.78
COP ⁴	/	2.17	2.15
Heating capacity ⁵	KW	29.20	35.80
Heating power input ⁵	KW	12.44	14.99
COP ⁵	/	2.35	2.39
Max. water temperature	℃	60	60
Rated water temperature	℃	55	55
Water flow	M³/h	5.6	7.1
Condenser		tube-in-shell	tube-in-shell
Water pressure drop	Kpa	40	42
Water connections	Inch	1.5	1.5
Built-in water flow switch		paddle type	paddle type
Built-in water pump		NO	NO
Built-in electric heater		NO	NO
Built-in auto air vent		NO	NO
Built-in water expansion vessel		NO	NO
Compressor	Brand	Copeland (EVI)	Copeland (EVI)
Compressor	Quantity	2	2
Type of defrosting	/	Reverse circulation	Reverse circulation
Fan quantity		2	2
Air flow	m3/h	12000	12000
Fan rated power	W	250*2	*2502**
Noise	dB(A)	58	58
Net weight	kg	265	287
Gross weight	kg	280	307
Net dimensions	mm	14956901075	*14956901370*
Packing dimensions	mm	15107201190	*15107201490*
