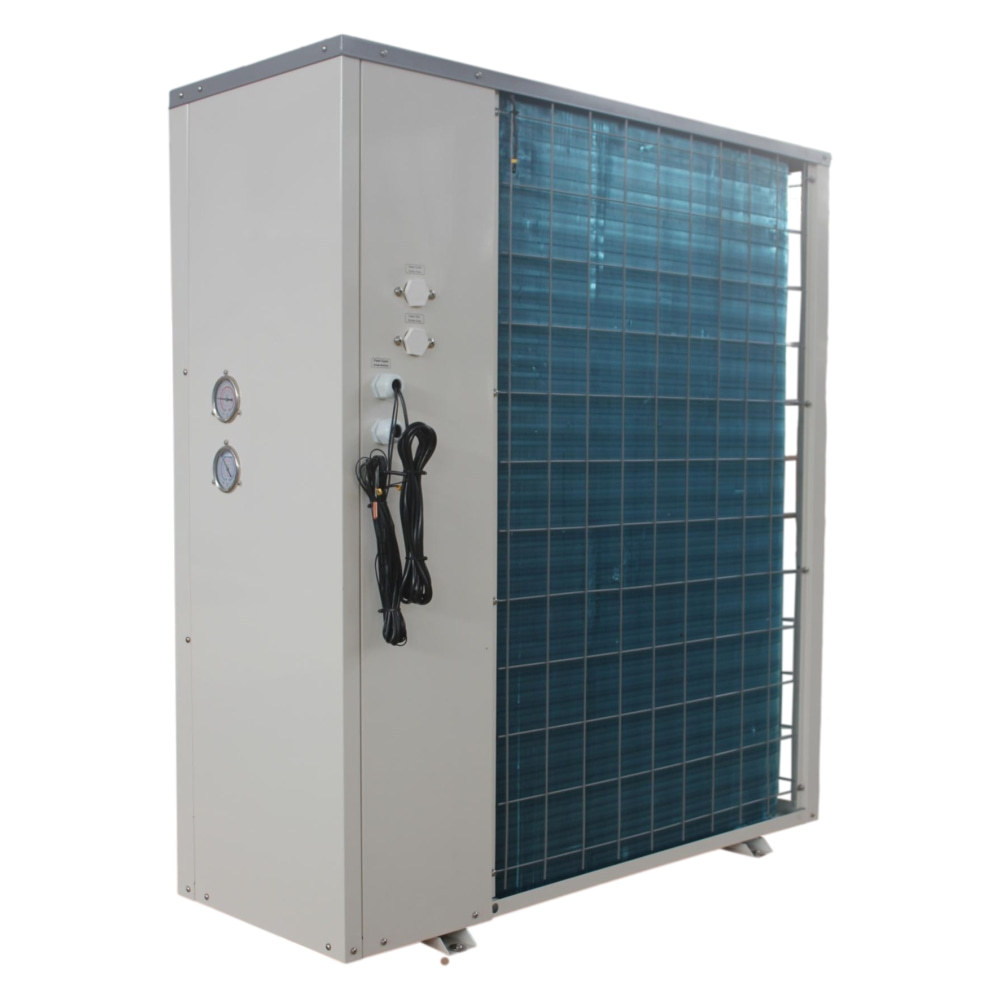

18KW DC Inverter Air to Water Heat Pumps(SHAW-18DM1)
- US $2047.00
1 - 100 piece
group nameDC Inverter Heat Pumps
-
Min Order5 piece
brand nameSuoher Inverter Heat Pumps Manufacturer
modelSHAW-18DM1
payment methodL/C, T/T
-
update timeWed, 13 Nov 2024 04:03:28 GMT
Paramtents
Net size 1110*450*1250(mm)
Power supply 380V/3PH/50Hz
Pipe connection DN25
Net weight 168KG
Gross weight 186KG
DC Fan motor 80W*2
pressure drop 30Kpa
Noise 58dB(A)
Packging & Delivery
Size120cm x 52cm x 139cm
Weight186.00kg / piece
Min Order5 piece
Briefing
Detailed
1. DC inverter heat pumps for heating, cooling and hot water.
2. 5 modes: heating only, heating and hot water, hot water only, coolingonly, cooling and hot water.
3. 15KW, 18KW heating capacity.
4. Receives ON/OFF signal from room thermostat, master controller and smartgrill system, to save more energy.
5. Heating curves for more accurate temperature control.
6. With control for back-up electric heater.
7. With control for 4-way valve to switch between heating/cooling and hotwater circuits.
8. Built-in energy-class A circulating pump.
9. Built-in water flow switch.
10. Built-in auto air discharge valve.
11. Automatically variable fan speed in 3 speeds to optimize efficiency.
12. Fast plugs for wiring between indoor unit and outdoor unit.
13. Low noise design with noise jacket for compressors, low noise fans andstrong casing to reduce vibration and noise.
14. We offer OEM service including different components, casing design,painting color, controller functions etc.
|
|
Model |
|
SHAW-15DM1 |
SHAW-15DM1 |
SHAW-18DM1 |
|---|---|---|---|---|---|
|
Technical Parameters |
Max. heating capacity |
kW |
19.8 |
20.2 |
23 |
|
Min. heating capacity |
kW |
6.5 |
6.5 |
8.1 |
|
|
Rated heating capacity |
kW |
15 |
15 |
18 |
|
|
Rated heating power input |
kW |
3.53 |
3.51 |
4.26 |
|
|
COP |
|
4.25 |
4.27 |
4.23 |
|
|
Rated cooling capacity |
kW |
10.8 |
10.9 |
13.5 |
|
|
Rated cooling power input |
kW |
3.83 |
3.82 |
4.81 |
|
|
EER |
|
2.82 |
2.85 |
2.81 |
|
|
Max. water temp. |
℃ |
60 |
|||
|
Rated water temp. |
℃ |
55 |
|||
|
water flow |
m3/h |
2.60 |
2.60 |
3.10 |
|
|
pressure drop |
Kpa |
28 |
28 |
30 |
|
|
Net weight |
kg |
124 |
126 |
168 |
|
|
Gross weight |
kg |
142 |
144 |
186 |
|
|
Noise |
dB(A) |
|
|
58 |
|
|
Pipe connection |
mm |
DN25 |
|||
|
Power supply |
|
220V/1PH/50Hz |
380V/3PH/50Hz |
380V/3PH/50Hz |
|
|
Net size |
mm |
1110*450*1250 |
1110*450*1250 |
1110*450*1250 |
|
|
Package size |
mm |
1200*520*1390 |
1200*520*1390 |
1200*520*1390 |
|
|
Standard Features |
Compressor |
brand |
Mitsubishi |
||
|
quantity |
1 |
||||
|
Condenser |
plate heat exchanger |
||||
|
Evaporator |
Louverd&hydrophilic fin-tubes |
||||
|
4-way valve |
Yes |
||||
|
Flow switch |
Yes |
||||
|
Circulation pump |
Built-in energy clasee A water pump |
||||
|
Expansion valve |
Electionic expansion valve |
||||
|
DC Fan motor |
80W*2 |
80W*2 |
80W*2 |
||
|
High pressure switch |
4.2/3.6MPa |
||||
|
Low pressure switch |
0.02/0.15MPa |
||||
|
Working mode |
cooling, heating, hot water, cooling+hot water, heating+hot water |
||||
|
Refrigerant |
R410a |
||||
|
Remark |
1、Working temp.：-25℃~43℃ 2、Test condition：heating mode Ambient temp.：7℃/6℃，inlet/ outlet water temp.：30℃/35℃； cooling mode Ambient temp.：35℃/24℃，inlet/ outlet water temp.：12℃/7℃ |
||||
