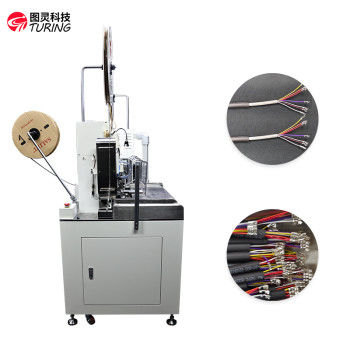

TR-DM07 Auto 2 heads round jacket cable sheathed wire insert heat shrink tube terminal crimping machine
group nameSheathed wire Terminal Crimping Machine
-
Min Order1 piece
brand nameTuring
modelTR-DM07
payment methodWestern Union, MoneyGram, T/T
-
update timeTue, 05 Nov 2024 14:49:45 GMT
Paramtents
Power AC220V/50HZ,
Application Double-head Terminal Machine
Feature Stable Performance
Warranty 1year
Control Servo and Step motor
Contact Coco 0086-18666170785
Packging & Delivery
Min Order1 piece
Briefing
TR-DM07 Auto 2 heads round jacket cable sheathed wire insert heat shrink tube terminal crimping machine
Detailed
TR-DM07 Auto 2 heads round jacket cable sheathed wire insert heat shrink tube terminal crimping machine
shrink tube terminal crimping machine
Equipment efficiency：1000 pcs/h （5 Pin，L=150 mm）
Cutting accuracy：±（0.1+0.005*L） mm
Applicable wire
diameter：AWG# 20-28; OD 3-7mm
pressure capability：20KN
Air source：0.6-0.8Mpa
Stripping length：18-120 mm（4 Pin）
Internal stripping
length：0-8 mm
core wire：AWG #20 -#26
environmental
temperature：-5 to 40°C
Cutting length：110-9999 mm
Power source：AC220V50/60Hz
Cutting accuracy：Adjustment range 0.5mm + cut length * 0.2% or less
Tube cutting length：0-30 mm (customisable)
power ：3kw
push against travel：30/40 mm
Machine size：L1450*W900*H1860 mm
- Mature and stable, high market share, Gree Midea system validation for many years.
- Can process 2-13 cores multi-core sheathed wire with high efficiency up to 1000 pcs/h.-Equipped with pressure management device as standard to protect the blade andstrictly control the quality.
- Independentwire separation device, compatible with all kinds of OTP moulds, no needfor special moulds.
-Pressure-adjustable splitting clamp, protect the inner skin without damage.
-The pressed terminals can be lined up in the same straight line (notfan-shaped), andthe terminals can be inserted into the rubber case neatly and beautifully.
-Servo motor with screw drive, high precision motion system.
Terminalmachine integrated cast iron, durable, stable crimping.
-Touch screen knife value adjustment, no need to pad knife.
Equipment recipe one-key storage, quick recall.
CNC interface,simple to learn and use.
- Can be added with safety shield, wire feeding and receiving belt, MES system andother components.
