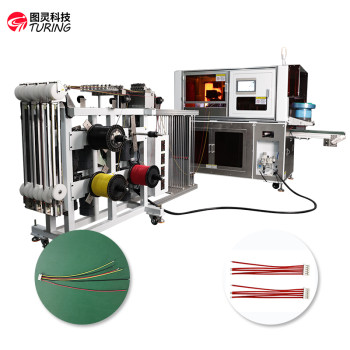

TR-JC02 Single-head Terminal Crimping Dipping Tin and Inserting Plastic Shell machine
group namePlastic Shell Terminal Crimping Machine
-
Min Order1 piece
brand nameTuring
modelTR-JC02
payment methodWestern Union, MoneyGram, T/T
-
update timeFri, 08 Nov 2024 09:41:51 GMT
Paramtents
Power AC220V/50HZ,
Application Crimping Terminal , Dip Tine and Insert shell
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
Min Order1 piece
Briefing
TR-JC02 Single-head Terminal Crimping Dipping Tin and Inserting Plastic Shell Machine
Detailed
TR-JC02 Single-head Terminal Crimping Dipping Tin and Inserting Plastic Shell Machine
Implementation functions: fixed-length cutting + double-head stripping and crimping + single-end tin dipping + pressure detection + CCD visual core wire detection + CCD visual appearance detection + rubber shell insertion + pull-back detection
One end is inserted into the shell, and the other end is connected with terminals + tin dipped (long and short wires).
Suitable for single-layer rubber shells, double-layer rubber shells, and multi-layer rubber shells;
Rubber shell loading method: vibrating plate loading (standard machine), optional robot loading and manual loading;
Standard processing length: 40-850mm (pulling the wire twice can reach 1500mm), long and short wires can be realized;
Wire diameter range: 30-18AWG;
Terminal length range: within 30mm (excluding tape);
Crimping stroke: 36mm
The crimping machine head is a servo 2T terminal machine, and the crimping height is adjusted by computer;
Equipment efficiency: 2.2S sec/wire, about 1600 wires/hour (wire cutting length 100mm)
