TR-K9GZ Two axis servo copper tape machine
group nameSemi-auto Copper Strip Crimping Machine
-
Min Order1 piece
brand nameTuring
modelTR-K9GZ
payment methodWestern Union, MoneyGram, T/T
-
update timeFri, 08 Nov 2024 15:39:17 GMT
Paramtents
Power AC220V/50HZ,
Name Copper Tape Crimping Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
Min Order1 piece
Briefing

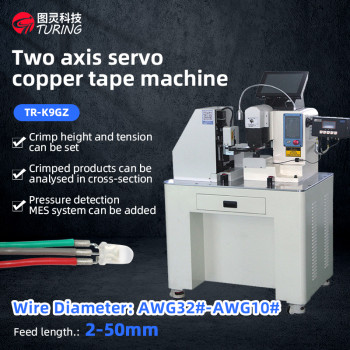

TR-K9GZ Two axis servo copper tape machine
Lily +8613715588365
Lily +8613715588365
Detailed
TR-K9GZ Two axis servo copper tape machine
Wire Diameter：AWG32#-10#
Copper strip width：2-8mm
Crimping speed：Approx. 1 sec/pc
Feed length：2-50mm
Crimping accuracy：±0.05mm
Crimping time：CNC setup
crimping force：2.0T
Product
pullout force：2-20kg
thicknesses：0.3-0.5mm
Parts Description:
1. Copper belt machine is driven by servo motor, parameters in the machine touchscreen to adjust the parameters: crimping height, crimping strength, copper beltcutting length,simple and fast operation.
2. Moulds are customised according to customer's product materials and require-ments.
3. The copper belt is driven by stepping motor, and the copper belt is conveyed bythe module screw system, which is accurate and stable in feeding;
4. Copper belt machine crimping principle: automatic conveyor copper belt struc.ture, copper belt by automatic cutting, moulding, crimping one-time completionof the process,and no waste generated.
5. Cold pressure crimping method, instead of the traditional soldering process, nocold welding, air welding and air pollution shortcomings, through a variety ofsafety specifications for the test (UL, JlS) the most simple and effective way.
6. This machine can be equipped with pressure detection system and mould mon-itor system according to customer's requirement (if you need to increase thesetwo detection systems, please consult the business related personnel).
