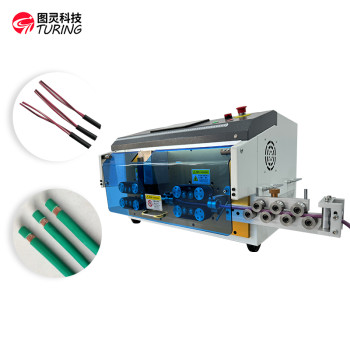

TR-880D Pure electric computerisedwire stripping machine(6-50 square mm)
group nameComputer Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR-880D
payment methodWestern Union, MoneyGram, T/T
-
update timeFri, 08 Nov 2024 09:43:07 GMT
Paramtents
Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
Min Order1 piece
Briefing
TR-880D Pure electric computerisedwire stripping machine(6-50mm2)
Coco 0086-18666170785
Coco 0086-18666170785
Detailed
TR-880D Pure electric computerised wire stripping machine (6-50mm²)
Supply Voltage：220V/50Hz，450W
Catheter Diameter：4-15mm
Stripping speed：800-1100 strips/H
Size & weights：630x560x465mm，85kg
Cutting length：1-9999mm
Number of intermediate peeling segments：have
Drive method：8wheel drive
Cutting length
tolerance：±0.002*L
Blade Material：Tungsten steel, white steel
Display Mode：Full touch screen in English and Chinese
Wire Type：Adapt to BVR multi-strand soft wire 6-50mm2; BV hard wire:25mm2;
PVC electronic wire, glass fibre wire, Teflon wire, etc.
Stripping length
at both ends：Single-core wire: head 1-50mm; tail 1-35mm, depending on the
wire material, for wire diameter 6-50mm².
Multi-core sheathed wire: 1-200mm; tail 1-200mm, depending
on the wire material, suitable for wire diameter 15mm.
Characteristics
1.This is a high-end belt feeding wire stripping machine, this machine adopts 8wheels + auxiliary 8 wheels to drive belt feeding instead of the traditional roller feed.ing, which increases the contact area between the feeding wheel and the wire, andimproves the puling force to enhance the stripping ability, but also reduces the pres.sure to reduce the damage to the surface of the wire skin, and the surface of the wireskin is free of indentation. The pressure of the wire feeding wheel can be set directlyin the programme, no need to manually adjust the screws, it is very convenient toswitch between different wire diameters.
2. This machine also has automatic lifting wheel and jumping conduit function, auto-matic lifting wheel means that when stripping the head of the wire wheel can auto-matically open to avoid, jumping conduit function means that when stripping the tailof the wire into the wire conduit automatically lifted to avoid, thus increasing therange of the length of the stripping.
3. Colour touch screen operation interface, powerful program function, programmemory function can store the processing parameters of different wires into differentprograms, and when processing the wire again, you can call out the correspondingprogram with one key, a machine can complete the processing of many kinds ofwires, strong versatility.
-lt can be equipped with safety shield, and automatically alarm and stop the ma-chine when the shield is opened.
-Can be installed with code printing machine and laser printing machine, to achievethe two ends of the cut wire peeling, but also can be printed on both ends of thefunction.
-Can be equipped with wire picking robot and conveyor belt, when processing longWires, it can ensure that the wires are put into the receiving tray in a straight and neatmanner.
