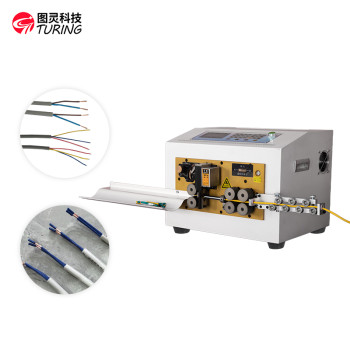

TR-880L Fully Automatic Sheathed Core Wire Computerised Stripping Machine(0.75-25mm2)
group nameComputer Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR-880L
payment methodWestern Union, MoneyGram, T/T
-
update timeFri, 08 Nov 2024 14:17:46 GMT
Paramtents
Power AC220V/50HZ,
Name wire stripping machine
Feature Stable Performance
Warranty 1year
Contact Coco 0086-18666170785
Packging & Delivery
Min Order1 piece
Briefing
TR-880L Fully Automatic Sheathed Core Wire Computerised Stripping Machine(0.75-25mm2)
Coco 0086-18666170785
Coco 0086-18666170785
Detailed
TR-880L Fully Automatic Sheathed Core Wire Computerised Stripping Machine(0.75-25mm²)
Supply Voltage：AC220V/110V 50/60Hz
Pneumatic：0.4-0.6Mpa
Size &weight：450x430x380mm，48kg
Display Mode：English and Chinese colour touch screen
Core wire processing：Inner core wire 1-4 pcs
Length accuracy：±(0.2+0.002L)
Wire Type：Multi-core round sheathed wire, flat sheathed wire
Core wire
stripping length：Wire head 1-20mm, wire tail 1-20mm,
depending on the wire material
Processing Diameter：2-8mm, depending on the wire
Cutting length：10-9999mm
Outer skin peeling length：Wire head: front 150mm; wire tail: rear end 80mm
Wire feeding method：Inlet pulleys can be fed by belts and rollers, outlet pulleys are
only fed by rollers (rubber and iron pulleys)
Feature Description
1. This machine is mainly for round sheath cable, flat sheath cable peeling core wireprocessing, can achieve automatic cut off the tail, peeling the outer skin, peeling theinner core skin function.
2. Adopting belt and roller to feed the wire, large contact area, high precision, noobvious indentation on the surface.
3. Adopting precision stepping motor and control product, subdividing way to con-trol the length, small error.
4. Display mode: colour touch screen interface, Chinese and English can beswitched.
5. Operation mode: automation can be achieved by setting the total length of theline, cut off, peeling the outer skin, peeling the core line, a one-time operation iscompleted, automatically record the output, easy to operate, thus greatly improvingefficiency.
6. The machine is powerful, reserved for a number of ports, for supporting someauxiliary equipment for input and output devices.
7. The standard equipment does not include the release and take-up, according tocustomer demand, can be added to the release machine and automatic push linemachine,robotic take-up machine.
