TR-SC26 Semi-auto Rechargeable Lithium Battery Electric Handheld Tape Wrapping Machine with Fixed Base for Wire Harness
group nameTape Wrapping Machine
-
Min Order1 piece
brand nameTuring
modelTR-SC26
payment methodWestern Union, MoneyGram, T/T
-
update timeFri, 01 Nov 2024 09:24:25 GMT
Paramtents
Power AC220V/50HZ, 300W
Application Cable Making Industry
Feature Stable Performance
Function Handheld Tape Winding Machine
Warranty 1year
Tape type PVC,PET,textured paper,Duct tape,Acetate Tape
Packging & Delivery
Size45cm x 35cm x 50cm
Weight13.00kg / piece
Min Order1 piece
Briefing

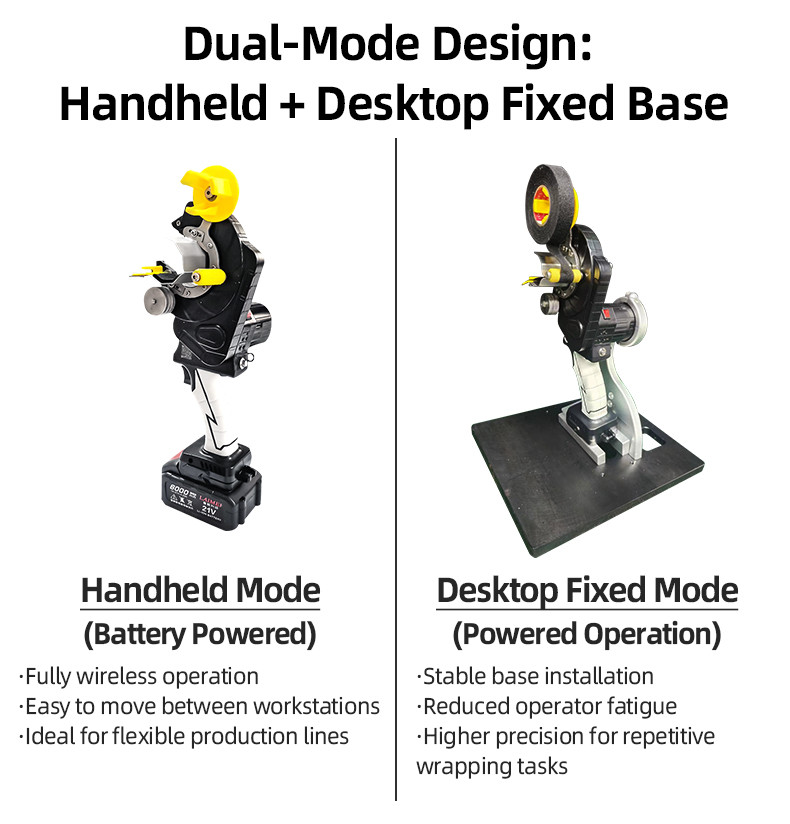

TR-SC26 Semi-auto Rechargeable Lithium Battery Electric Handheld Tape Wrapping Machine with Fixed Base for Wire Harness
Detailed

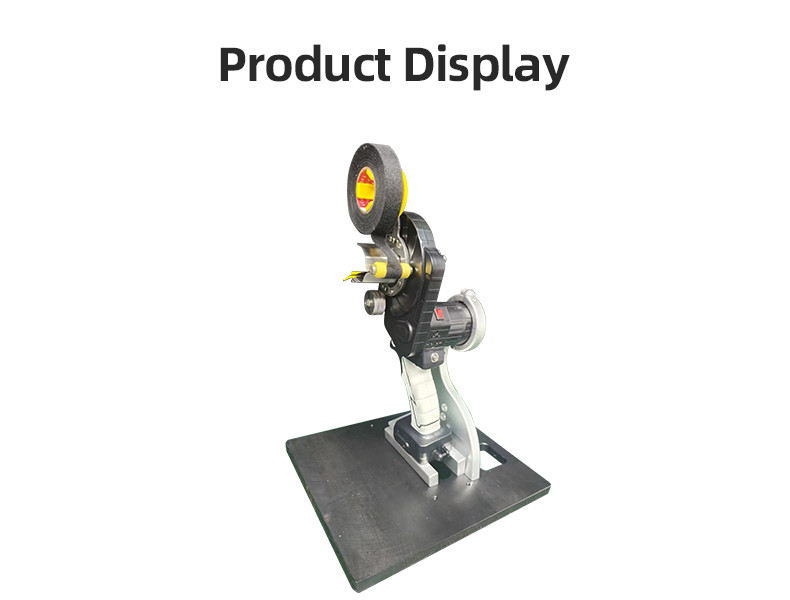

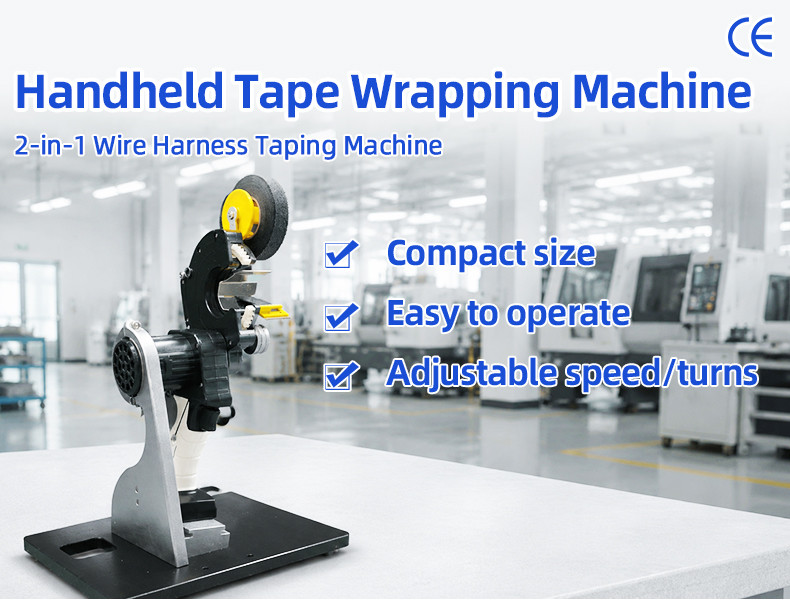

TR-SC26 Semi-auto Rechargeable Lithium Battery Electric Handheld Tape Wrapping Machine with Fixed Base for Wire Harness

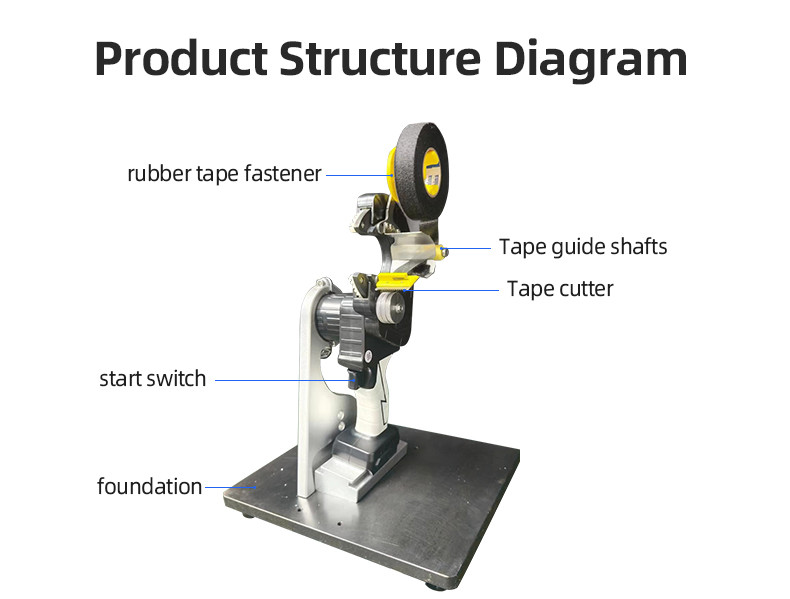

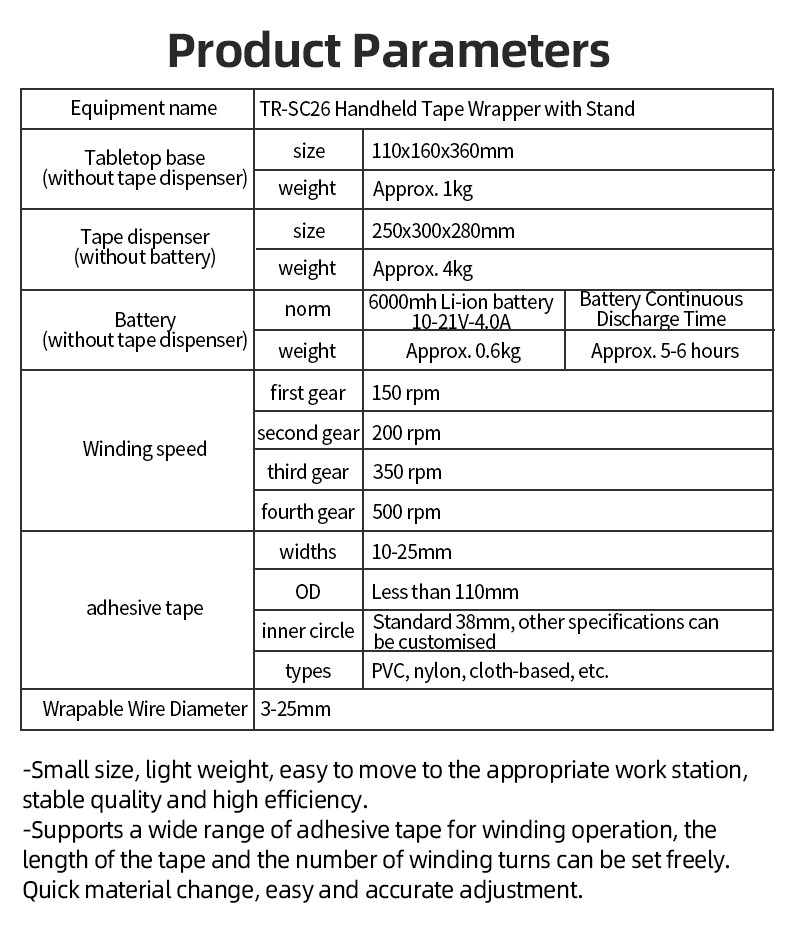

Tabletop base (without tape dispenser) size&weight:110x160x360mm,approx. 1kg
Tape dispenser (without battery) size&weight:250x300x280mm,approx. 4kg
Battery
(without tape dispenser) norm:6000mh Li-ion battery
10-21V-4.0A;weight:Approx. 0.6kg;Battery Continuous Discharge Time:Approx. 5-6 hours
Winding speed
first gear:150 rpm;second gear:200 rpm;
third gear:350 rpm;fourth gear:500 rpm
Adhesive tape
widths:10-25mm;
OD:Less than 110mm;
inner circle:Standard 38mm, other specifications can
be customised;

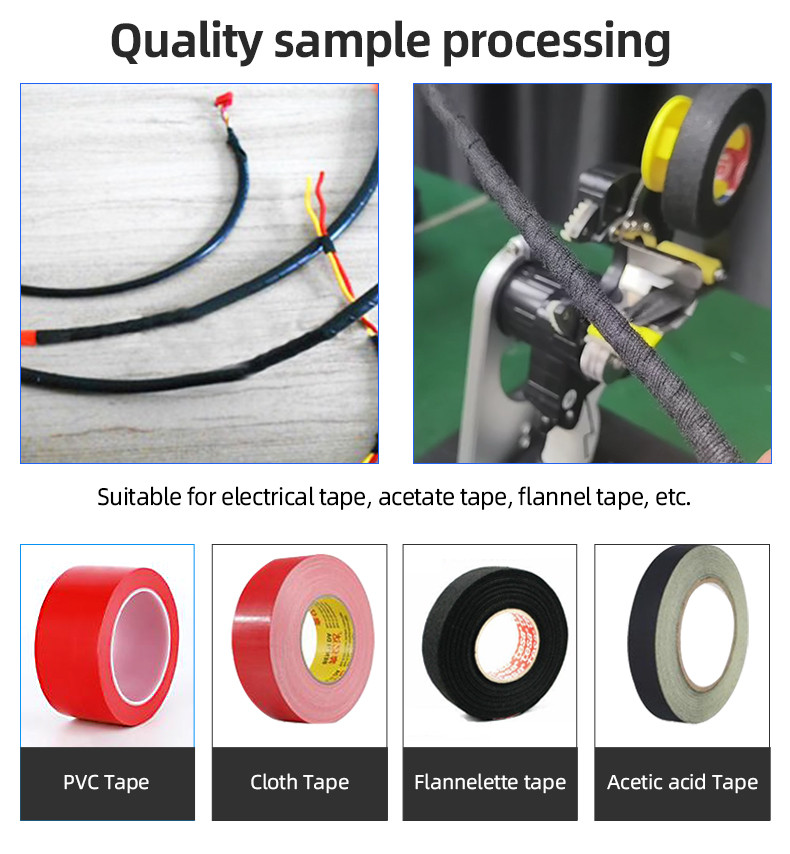

types:PVC, nylon, cloth-based, etc.
Wrapable Wire Diameter:3-25mm
-Small size, light weight, easy to move to the appropriate work station, stable quality and high efficiency.
-Supports a wide range of adhesive tape for winding operation, the length of the tape and the number of winding turns can be set freely. Quick material change, easy and accurate adjustment.

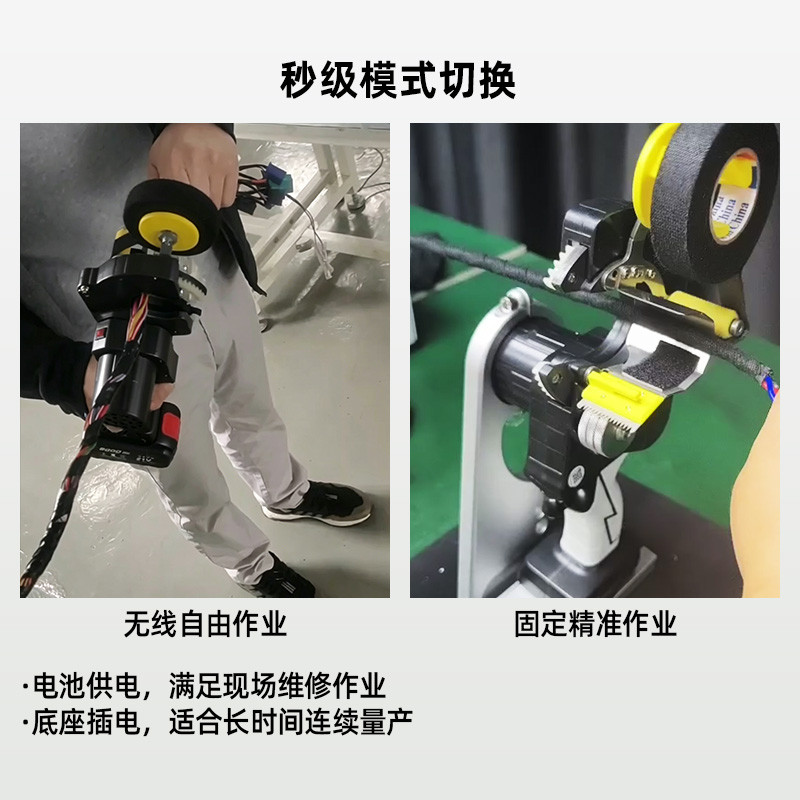

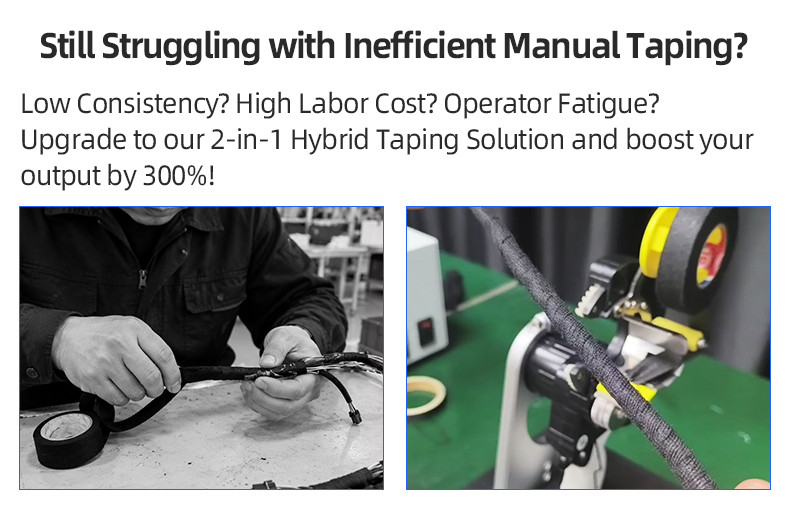

This machine is small and flexible. The weight of the machine is only 1.65kg, and the machine has a hooked rope, which can be hung in the air to share and bear part of the weight, and the open design can start wrapping from any position of the wire harness, and it's easy to skip the branches, it is suitable for tape wrapping of wire harnesses with branches, Of ten used for wire harness assembly board to assemble wire harness.
Advantage
1. Can work with many kinds of material tapes
2. Lightweight, easy to move and not easy to feel tired, high efficiency
3. Simple operation, operators only need simple exercises
4. Easily adjust the distance of the tape and overlap, reducing the waste of tape
5. After cutting the tape, the tool automatically jumps to the next position for the next preparation, no additional process
6. The finished products have appropriate tension and no wrinkle
