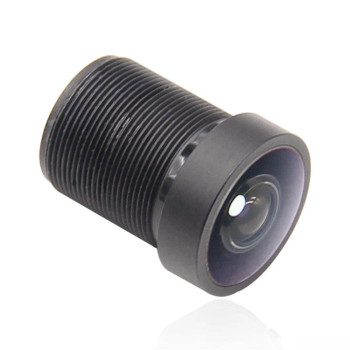

Board Lenses | MVL-HF1628-05S 1/1.8'' 16mm F2.8 M12 Mount Lens
group nameM12 Mount Lens
-
Min Order1 piece
brand nameMSTAR Machine Vision System
modelMVL-HF1628-05S
payment methodT/T
-
update timeFri, 08 Nov 2024 07:30:05 GMT
Paramtents
Focal Length 16 mm
F-Number F2.8
Image Size Φ9 mm(1/1.8'')
TV Distortion <0.1%
MOD 0.1m
Field of View 24.4° x 18.4°
Mount M12
Iris Fixed
Focus Fixed
Packging & Delivery
Min Order1 piece
Briefing
16mm F2.8 M12 Mount Lens suitable for board cameras with different resolutions
Detailed
Introduction
MVL-HF1628-05S Board Lenses
16mm F2.8 M12 Mount Lens
M12 series lens is designed for machine vision
applications with excellent imaging quality from
nearto infinity. It issuitable for board cameras with
different resolutions. Adapt for measurement,
positioning, defect detection, code scanning and
other fields.
Key features
■ Optimization design for machine vision
■ High resolution, High consistency of picture definition
■ Low Distortion, High relative illumination
■ S-Mount (M12 * 0.5), Easy system integration
Specifications
|
Model |
Model |
MVL-HF1628-05S |
|
Type |
16mm F2.8 M12 Mount Lens |
|
|
Performance |
Focal Length |
16 mm |
|
F-Number |
F2.8 |
|
|
Image Size |
Φ9
mm(1/1.8'') |
|
|
TV Distortion |
<0.1% |
|
|
Working Distance Range |
100 ~ 850 mm |
|
|
Field of View |
D（8.86 mm）： 31° |
|
|
Mechanical |
Mount |
S-Mount |
|
TTL |
19.3 ~ 22.2 mm |
|
|
Dimension |
Φ14 mm× 13.78 mm |
|
|
Temperature |
-10 ~ 50℃ |
|
|
General |
Certification |
RoHS2.0 |
Download document
FAQ
What is the resolution(μm) of the lens?
Resolution is a measured by how closely 2 points can be before they cannot be distinguished. For example, 1μm resolution means that 2 points that are 1μm away from each other can be distinguished. Resolution values in this catalog are theoretical resolutions for the lenses. The following is a formula to calculate theoretical resolution based on a lens's ray diffraction with no aberration.
Resolution=0.61×λ/NA λ : Wavelength 0.61: Fixed Number
Distortion
(%)
Distortion is the aberration of a lens where a straight object outside of the optical axis appears curved. Distortion of a straight line towards the center is called pincushion distortion, while distortion expanding outwards is called barrel distortion
WD
(Working Distance)
Distance from the front end of a lens system to the object under inspection.
F Number
The value indicates lens brightness. It is calculated by dividing the focal distance of the lens by its effective diameter (entrance pupil diameter D mm) looking from its object side. It can also be calculated by NA and the lens' optical magnifi cation ( ). The smaller the number the brighter the lens is.
F No=f/D
Field of View
Field of view is the size of an object that can be shot when the lens is attached to a camera.
The size of fi eld of view is (sensor size) ÷ (optical magnification ).
(Calculation Example) Optical Magnification =0.2x, camera Size 1/2" (4.8mm Long, 6.4mm Wide) :
Size of Field of View Length =4.8/0.2=24 (mm)
Width =6.4/0.2=32 (mm)
