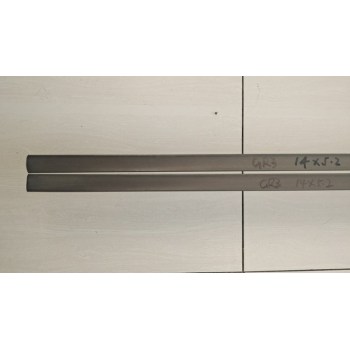

Medical titanium plate gr1 titanium arc plate for making medical instruments
group nameTitanium arc Plates
-
Min Order1 kilogram
brand nameMMR Parts Processing | Custom Parts Manufacturing
payment methodL/C, D/A, D/P, Western Union
-
update timeFri, 08 Nov 2024 17:15:24 GMT
Paramtents
Grade Gr1, Gr2, Gr3, Gr4,
Thickness 2.0mm - 10mm
Width ＜20mm
Length ≤3000mm
Technology Hot-Rolled, Cold-Rolled, Hot forging , Machining
Condition Cold rolled(Y), Hot rolled(R), Annealed (M)
Surface Pickling surface, Polished surface, Black surface
Specifications Medical
Packging & Delivery
Min Order1 kilogram
Briefing
Detailed
Grade | Chemical composition, weight percent (%) | ||||||||||||||
|
C ≤ |
O ≤ | N ≤ |
H ≤ |
Fe ≤ | Al | V |
Pd |
Ru | Ni | Mo | Other Elements Max. each | Other Elements Max. total | |||
Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.20 | — | — | — | — | — | — | 0.1 | 0.4 | ||
Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 | ||
|
Gr3 |
0.08 |
0.35 | 0.05 |
0.0015 |
0.30 | — | — |
— |
— | — | — | 0.1 | 0.4 | ||
|
Gr4 |
0.08 |
0.25 | 0.03 |
0.015 |
0.30 | — | — |
— |
— | — | — | 0.1 | 0.4 | ||
Grade | Physical properties | ||||||
|
Tensile strength Min |
Yield strength (0.2%, offset) |
Elongation in 50mm Min (%) |
|||||
ksi | MPa | Min | Max | ||||
ksi | MPa | ksi | MPa | ||||
Gr1 | 35 | 240 | 20 | 138 | 45 | 310 | 24 |
Gr2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
|
Gr3 |
65 |
450 | 55 |
380 |
80 | 550 | 18 |
|
Gr4 |
80 |
550 | 70 |
483 |
95 | 655 | 15 |
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
