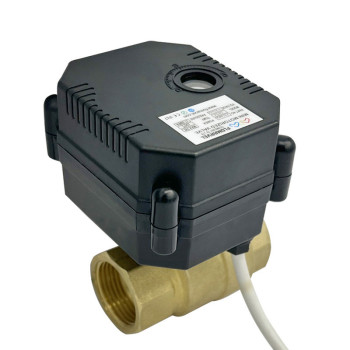

2 port 12V 24V DC electric motorized actuator 1/2 3/4 1 inch DN15 DN20 25 water control ball valve
2 port 12V 24V DC electric motorized actuator 1/2 3/4 1 inch DN15 DN20 25 water control ball valve2 port 12V 24V DC electric motorized actuator 1/2 3/4 1 inch DN15 DN20 25 water control ball valve2 port 12V 24V DC electric motorized actuator 1/2 3/4 1 inch DN15 DN20 25 water control ball valve2 port 12V 24V DC electric motorized actuator 1/2 3/4 1 inch DN15 DN20 25 water control ball valve

2 port 12V 24V DC electric motorized actuator 1/2 3/4 1 inch DN15 DN20 25 water control ball valve

FOB Price
  • US $22.00

    1 - 1 piece

  • group namepvc motorized ball valve

  • Min Order2 piece

  • brand nameFlomarvel motorized valve wholesale manufacturer

  • modelFH-MO-9

  • payment methodWestern Union, T/T, Paypal

  • update timeFri, 08 Nov 2024 09:43:59 GMT

contact supplier

Paramtents

  • Voltage of power supply 3-6V DC, 9-24VADC, 110-230V AC

  • Valve material PVC, Brass, SS304 for option

  • Valve size 1/4''-1'' (DN8-DN25)

  • Thread BSP, NPT for option

  • Electrical connection 35cm (13'') lead wires

  • Wiring control 2 wire, 3 wire, 5 wire for option

  • Manual override Optional

  • Position indicator Yes

Packging & Delivery

  • Size13cm x 11cm x 9cm

  • Weight0.50kg / piece

  • Min Order2 piece

Briefing

Electric motor actuated ball valve - 1/2inch, 3/4 inch, 1 inch; PVC, brass, stainless steel valve body for option

Detailed

Electric motor actuated ball valve
automatic water shut off valve
Features

∎ Precision metal gear, high strength, reliable performance, long service life

∎  Multiple wiring for remote control and valve status feedback to intelligent control unit

∎  Floating sealing ball valve, no leakage

∎  Low power consumption, battery workable

∎  Flame retarded PC-ABS enclosure with compact, exquisite structure for small equipment

∎  IP 67 protection, applicable for humid environment

∎  With visual position indicator

∎  Various connectors customizable

∎  Manual override available for option

Exploring the functionality and Application of electric actuated ball valve
Are you tired of manually operating ball valves? In today's fast-paced world, automation has become essential for efficient and reliable operations. That's where electric actuated ball valves come into play. With their unique functionality and wide range of applications, electric actuated ball valves are revolutionizing the valve industry.
Using an electric motor, these valves allow for precise control and quick adjustment of the flow of liquids or gases. From industrial processes to HVAC systems, electric actuated ball valves can be found in various industries, ensuring seamless operations and improved productivity.
Whether you need to open or close a valve remotely, regulate flow rates, or automate your system for optimal performance, electric actuated ball valves provide the perfect solution. With their compact design, low power consumption, and reliable performance, these valves offer numerous advantages over traditional manual valves.
Application
Electric actuated ball valve - widely used in water treatment systems, home automation, HVAC system, irrigation system, wildfire emergency sprinkler system, recreational vehicle (RV), trailer home, sprinkler truck, fire truck, air compressor, washing machine, etc., wherever automatic remote fluid control is needed.
Dimension
motor operated valve
D1/D2
DN
φd
L1
L2/L3
F
H1
H2
Weight (KG)
1/2''
DN15
14
61
12.5
25
69.3
42
0.21
3/4''
DN20
17
74
19
31
71
42
0.24
1''
DN25
23
80
18
37
76
42
0.29
Unit: mm
Technical parameters
Series
Torque
Operating time
Working voltage
Working current
Max. power
Max. pressure
FH
2.5 N.M
<5S

3-6V DC, 9-24V ADC, AC110-230V
<100 mA
5W
1.0 Mpa
Medium temperature
Ambient temperature
Humidity
Enclosure
Service life
Wiring
0-100℃/32-212℉
-20-45℃/-4 -113℉
95%
IP67
50,000 - 80,000 times
OP01, OP02, OP03, OP04,
OP05 optional, customization available
Certifications
small electric water valve
valve with electric actuator
motorized ball valve 12v
electric open close valve
Factory
Manufacturer sepcialized in mini electric actuator brass ball valve.
