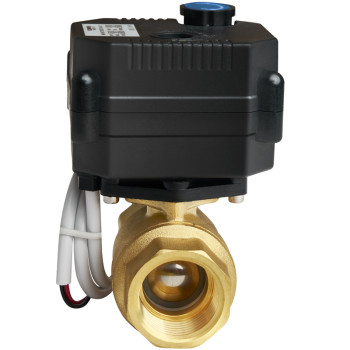

High Quality 3-6 12 24V DC Mini Electric Actuator Control Motorized Water Ball Valve | OEM & ODM Solutions for Wholesalers, Distributors, and Brand Partners Worldwide
group nameElectric brass ball valve
-
Min Order2 piece
brand nameFlomarvel motorized valve wholesale manufacturer
modelFH-MO-4
payment methodWestern Union, T/T, Paypal
-
update timeTue, 05 Nov 2024 11:26:07 GMT
Paramtents
Actuator color Black ( customizable)
Valve material PVC, Brass, SS304 for option
Valve size 1/4''-1'' (DN8-DN25)
Thread BSP, NPT for option
Packging & Delivery
Min Order2 piece
Briefing
High Quality 3-6 12 24V DC Mini Electric Actuator Control Motorized Water Ball Valve | OEM & ODM solutions for wholesalers and distributors worldwide.
Detailed
Automatic ball valve
Features
∎ Precision metal gear, high strength, reliable performance, long service life
∎ Multiple wiring for remote control and valve status feedback to intelligent control unit
∎ Floating sealing ball valve, no leakage
∎ Low power consumption, battery workable
∎ Flame retarded PC-ABS enclosure with compact, exquisite structure for small equipment
∎ IP 67 protection, applicable for humid environment
∎ With visual position indicator
∎ Various connectors customizable
∎ Manual override available for option
Clip-Pin connection of electric actuator and ball valve
What is great about the clip-pin connection?
With adapters assembled to the electric motor actuator and ball valve, the actuator and ball valve can be assembled and disassembled in seconds, which makes:
① installation much easier. When the mounting space is limited, install the ball valve on the pipe first and then mount the electric actuator on to it will make the process much easier.
② repairing much less troublesome. When there is a malfunction, mostly only need to change or repair the actuator, with this design, it won't be necessary to stop the whole system to take off the whole set of valve off the pipe, taking off the actuator to replace with a good one will minimize the affect of a part failure. ③ tremendous reduction in inventory for retailers, for whom stock valve of various specifications, instead of stocking whole set of electric ball valve, seperately stock electric actuator and ball valve would make inventory much more flexible.
Application
Electrically motor operated water shut off valve - widely used in water treatment systems, home automation, HVAC system, irrigation system, wildfire emergency sprinkler system, recreational vehicle (RV), trailer home, sprinkler truck, fire truck, air compressor, washing machine, etc., where automatic remote fluid control is needed.
Purchase guide of motor operated ball valve
When Purchasing An Electric Motor Ball Valve, It Can Be Intimidating To Decide All The Specifications All At Once. Below Form Should Help To Simplify The Process. Click for more details.
Dimension
D1/D2 | DN | φd | L1 | L2/L3 |
F
|
H1
|
H2
|
Weight (KG)
|
1/4'' | DN8 | 8 | 45 | 10 |
21
|
68
|
42
|
0.25
|
1/2'' | DN15 | 15 | 57 | 11 | 25 | 71 | 42 | 0.31 |
3/4'' | DN20 | 20 | 63 | 12 |
31
|
74
|
42
|
0.40
|
1'' | DN25 | 25 | 73 | 16 |
37
|
77
|
42
|
0.51
|
Unit: mm
Technical parameters
Series | Torque | Operating time | Working voltage |
Working current
|
Max. power
|
Max. pressure
|
FH | 2.5 N.M | <5S | 3-6V DC, 9-24V ADC, 110-230V AC |
<100 mA
|
5W
|
1.0 Mpa
|
Medium temperature | Ambient temperature | Humidity | Enclosure |
Service life
|
Wiring |
|
0-100℃/32-212℉ | -20-45℃/-4 -113℉ | 95% | IP67 |
50,000 - 80,000 times
|
OP01, OP02, OP03, OP04, OP05 optional, customization available |
Certifications
Factory
Manufacturer sepcialized in motorized ball valve, ODM/OEM available, best price.
Why choose us
