Heavy Duty Electric Hydraulic Roll Grooving Machine for Steel Pipe SCH10/SCH40 2"-16"(RG-6X)
group nameElectric Hydraulic Roll Groover
-
Min Order1 piece
brand nameFusion Equipment and Plumbing Tool｜WELPING
modelRG-6X
payment methodT/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
-
update timeThu, 07 Nov 2024 22:38:50 GMT
Paramtents
Grooving Capacity 2"-16"
Max Wall Thickness 10mm
Power Supply 1100W
Output Speed 23RPM
Packging & Delivery
Min Order1 piece
Briefing
roll groovers are designed to improve speed and efficiency for fire sprinkler and other industrial installations
Detailed
2"-16" Heavy Duty Electric Hydraulic Roll Groover
Model RG-6X Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and Stainless Steel from 2"-16" (DN50~DN400) SCH10 / SCH40.
The compact large-sized groove machine boasts exceptional versatility and robust performance. Its wide working size range and heavy-duty adjustable bracket make it suitable for pipes of
varying sizes.
Special designed roller set prevents flare on the pipe ends, eases the installation of the grooved couplings.
Inbuilt high-performace gear reducing motor contributes compact size and low noise.

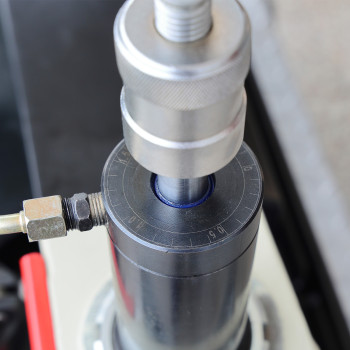

The unique split-type hydraulic system prevents oil leak and extends service life. Groove depth lock nut ensure high quality grooves and high efficiency.
PARAMETER
|
Mode
|
RG-6X
|
|
Suitable materials
|
Carbon Steel,Stainless Steel
|
Grooving Capacity |
for 2"-16" steel pipe SCH10/SCH40
|
|
Power supply
|
220V/110V
|
Frequency | 50HZ /60HZ |
Max wall thickness | 10mm |
Motor power | 1100W |
Output speed | 23RPM |
Packing gross weight | 170kgs |
Packing size | 92*48*87cm |
ORDERING INFORMATION
|
Catalog Number
|
Phase
|
Power
|
Voltage/Frequency
|
|
900060
|
Single
|
1100W
|
220V,50/60HZ
|
|
900061
|
Single
|
1100W
|
110V,50/60HZ
|
STANDARD PARTS
|
Item Number
|
Description
|
Net weight
|
|
|
911022
|
Drive roller 2"-3" (φ60~φ89)
|
1.30kg
|
|
|
911021
|
Drive roller 3 1/2"-6" (φ101~φ168)
|
1.30kg
|
|
|
911020
|
Drive roller 8"-12" (φ219~φ325)
|
1.40kg
|
|
911143 | Drive roller 14"-16"(φ355~φ426) | 1.60kg | |
912010 | Groove roller 2"- 3" (φ60~φ89) | 0.450kg | |
912009 | Groove roller 3 ½" -6" (φ101-φ168) | 0.45kg | |
912008 | Groove roller 8"-12"(φ219~φ325) | 0.45kg | |
912052 | Groove roller 14"-16"(φ355~φ426) | 0.45kg | |
998103 | Pipe stand for 1"-12" | 33.0kg | |
998026 | Foot switch | 1.50kg | |
PRODUCT DETAILS MAP
Pipe Stand
for 2"-16" steel pipe
Drive Roller
one set 2"-3" (φ60~φ89)
one set 3 ½"-6" (φ101~φ168)
one set 8"-12"(φ219~φ325)
one set 14"-16"(φ355~φ426)
Groove roller
one set 2"-3" (φ60~φ89)
one set 3 ½"-6" (φ101~φ168)
one set 8"-12"(φ219~φ325)
one set 14"-16"(φ355~φ426)
Foot Switch
