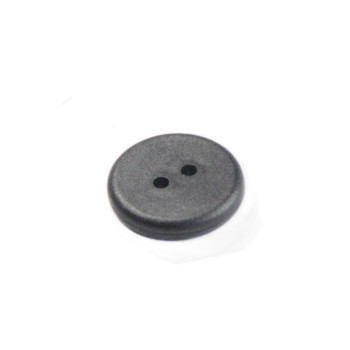

Traceable Button Double Hole High Temperature Resistance PPS Laundry RFID Electronic Label 15mm
group nameABS/PPS NFC Tags
-
Min Order1000 piece
brand nameDC-NFC Tag Manufacturer
modelDiameter 15 PPS label
payment methodT/T
-
update timeThu, 07 Nov 2024 20:55:37 GMT
Paramtents
category PPS tag
support DC-NFC tag manufacturer
size Diameter 15Mm
thickness 3mm
standard 14443a
chip NTAG213
frequency 13.56MHZ
temperature resistance Minus 25 to180 degrees
operating temperature Minus 30 to 85 degrees
reading distance About 2-5cm（Depends on the card reader and the ant
Authentication ROSH ,REACH CE
Packging & Delivery
Size10cm x 10cm x 5cm
Weight0.08kg / piece
Min Order1000 piece
Briefing
RFID high temperature 213 chip 13.56MHZ high frequency pps tag
Detailed
15MM PPS TAG Description
High Quality 15MM PPS TAG
● Application industry:Anti-counterfeiting, logistics tracking, location patrol, laundry
●characteristic：
| NTAG 213 chip, 15mm PPS TAG, high-temperature resistant NFC |
15MM PPS TAG Specification
|
Features
|
Contactless transmission of data and supply energy
|
||
|
Operating frequency
|
13.56 MHz
|
||
|
Data transfer
|
106 kbit/s
|
||
|
Data integrity
|
16-bit CRC, parity, bit coding, bit counting
|
||
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3).UID ASCII mirror for automatic serialization of NDEF messages..Automatic NFC counter triggered at a reading command.NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message.ECC-based originality signatureFast read commandTrue anti-collision | |||
180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page. 144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages). 4 bytes initialized capability container with one-time programmable access bits. Field programmable read-only locking function per page for the first 16 pages. Field programmable read-only locking function above the first 16 pages per double page for NTAG 213 or per 16 pages for NTAG 215 and NTAG 216. Configurable password protection with an optional limit of unsuccessful attempts. Anti-tearing support for capability container (CC) and lock bits. ECC supported originality check. Data retention time of 10 years. Write endurance 100,000 cycles. | |||
15MM PPS TAG Applications
15MM PPS TAG FAQ
1. How can I get the 15Mm PPS TAG Description Small price?
Please Send your inquiry Details or add our online tool then we can provide you with a quotation for the first time.
2. Can you offer free samples?
Yes, usually we can offer you free samples
A: For stock samples, we can send you free samples for your test, you pay for the shipping cost.
B: For customized samples, we will charge the reasonable production cost and try to refund you after order confirmed
3. What is your lead time?
Usually, our lead time is 1-7 days for samples and 7-20 days for mass production.
4. What's your payment method ?
Our payment method are T/T, Ali Trade Assurance for mass production order; Paypal.
5. How can I Choose the chip?
Check above chips lists or just email with us of the application, we will give the best suggestions.
