2.9 inch Pick to light System E-Paper Screen Low Power Wireless Warehouse Put to Light System
group namePick to Light Electronic Label
-
Min Order1 piece
brand nameSertag Pick to Light System Manufacturer
modelPick to light SETP_Label_V3(Battery Powered)
payment methodT/T
-
update timeFri, 08 Nov 2024 12:02:43 GMT
Paramtents
Display Technology Full Graphic E ink Display
Dimension 114.5x44.5x19mm
Button 4 Buttons
Indicator Light 1 RGB Lights
Battery Button battery pack 1800mAh(CR2450*3)
Communication Mode Wireless
Feature It can display text and pictures, low power
Application Factory, Warehouse, E-commerce, Logistics...
Packging & Delivery
Min Order1 piece
Briefing
Put to light, 2.9'' e-ink, battery powered. It can display text, picture, barcode, QRcode, for warehouse picking and putting.
Detailed
Pick to light System E-Paper Screen Low Power SETP_Label_V3(Battery Powered) Description
Pick to light System E-Paper Screen Low Power Wireless Warehouse Put to Light System
Elevate your picking efficiency with the SETP_Label_V3(Battery Powered). Designed to redefine warehouse operations, this battery-powered solution integrates cutting-edge technology into a compact 2.9-inch e-paper display. The 296x128 resolution ensures crystal-clear visuals, empowering your workforce with precise, unmistakable picking instructions while consuming remarkably low power for extended operational lifespans.
This innovative system features four buttons and a high-brightness LED indicator, enhancing visibility and usability in diverse environments. Whether streamlining picking processes or optimizing inventory management, the SETP_Label_V3(Battery Powered) stands as a beacon of efficiency, offering an agile, battery-powered solution for a dynamic warehouse landscape.
Pick to light System E-Paper Screen Low Power SETP_Label_V3(Battery Powered) Specification
|
Model
|
SETP_Label_V3(Battery Powered)
|
Display Technology
|
Full Graphic E ink Display
|
|
Dimension
|
114.5x44.5x19mm
|
Pixel Color
|
Black & White
|
|
Screen Size
|
2.9 inch
|
Case Color
|
White
|
|
Resolution
|
296*128
|
Button
|
4 Buttons
|
Working Temperature | 0~50℃ | Indicator Light | 1 RGB Lights |
Operating Frequency | 868MHz | Communication Mode | Wireless |
Viewing Angle | Nearly 180° | Wireless Firmware Update | Yes |
Displayable Content | Text/Picture/Barcode/QRcode | Template design DIY | Yes |
Battery | Button battery pack 1800mAh(CR2450*3) | Battery Lifetime | >1 year (10 times per day) |
Pick to light System E-Paper Screen Low Power SETP_Label_V3 Installation Method
The SETP_Label_V3 offers three convenient installation methods to adapt to diverse environments:
Adhesive fixation for swift deployment
Magnetic fixation for effortless repositioning
Track slot fixation (can be customized)
The slot size of 34.5x66.5mm, offering adaptability tailored to your spatial needs.

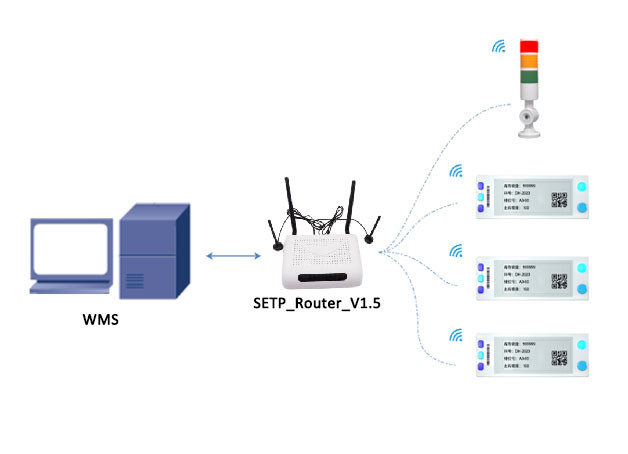

Purchasing Guide for the Base Stations of Pick to Light SETP_Label_V3(Battery Powered)
Recommend！
Features: Equipped with a built-in server program for effortless data transmission.
Ease of Use: Users simply send operational instructions directly to this base station for efficient data transfer, ensuring user-friendly functionality.
Functionality: Facilitates instruction transmission via PC or scanner.
Operation: Functions by relaying instructions from the PC or scanner through the SETP_Router_V1.2 base station to control LED lights/screens on the pick-to-light system.
Pick to light System E-Paper Screen Low Power SETP_Label_V3 Download
Pick to light System E-Paper Screen Low Power SETP_Label_V3(Battery Powered) Advantage
Ultra-low Power Consumption: Leveraging an e-paper display, this solution minimizes power usage, ensuring prolonged battery life.
Versatile Installation: With adhesive, magnetic, and customizable track slot options, adaptability is at the core of its design.
Enhanced Visibility: Featuring a high-brightness LED indicator light, ensuring clear and visible cues in any environment.
Battery-Powered Efficiency: Enjoy the freedom of battery power, providing flexibility and mobility in warehouse operations.
Pick to light System Application
