Wholesale Tube Diffuser AS-TD113 | 4"Fine Bubble Diffuser Provide Small Bubble Size for Enhanced Oxygen Transfer Efficiency | For Pulp And Paper Industry Wastewater Secondary Treatment
FOB Price
- US $10.00
100 - 1,000 piece
- US $8.00
1,001 - 10,000 piece
group nameTube Diffuser
-
Min Order100 piece
brand nameAquaSust Wastewater Treatment Solutions
modelAS-TD113
payment methodL/C, D/A, D/P
-
update timeFri, 08 Nov 2024 05:33:26 GMT
Paramtents
Membrane Material EDPM, Rubber,Silica Gel
Connector 3/4"NPT male thread
Length 500/750/1000mm
Packging & Delivery
Weight0.42kg / piece
Min Order100 piece
Briefing
AS-TD113 Wholesale Tube Diffuser: Boost oxygen transfer in Pulp & Paper wastewater treatment.
Detailed

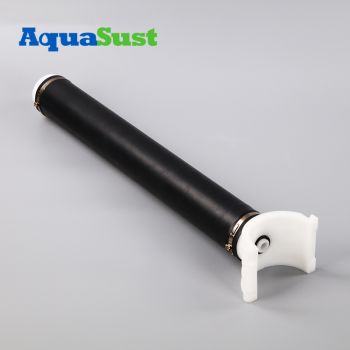

Tube Diffuser AS-TD113 Introduction
Category: Biochemical Tank -Aeration Diffuser
Brand: AquaSust
Model: AS-TD113
Size: 113mm
Bubble type: Fine bubble
Material: EDPM, Rubber, Silica Gel
Tube Diffuser AS-TD113 Advantage
- 1. Significantly improve oxygen transfer efficiency: AS-TD113 fine bubble diffuser significantly improves oxygen transfer efficiency by providing smaller bubble size, optimizing the dissolution process of oxygen in water.
2. Design advantages of smaller bubbles: Smaller bubbles mean a larger contact area between air and water, which increases the opportunity for oxygen to contact water and improves dissolution efficiency.
3. Suitable for wastewater with high organic load: It is especially suitable for treating industrial wastewater with high organic load, such as wastewater from textile, food processing and chemical industries, to improve the treatment effect.
4. Reduce energy consumption during aeration: The generation of small bubbles helps reduce energy consumption during aeration because they are able to transfer oxygen into the water column more efficiently at lower pressures.
5. Promote microbial activity: High oxygen transfer efficiency promotes microbial activity, accelerates the biodegradation process of organic matter, and improves treatment capacity and effluent quality.
6. Optimize energy efficiency: AS-TD113 fine bubble diffuser not only optimizes energy efficiency in the wastewater treatment process, but also reduces the overall energy consumption of the system.
7. Achieve environmental protection and cost-effectiveness: Through efficient oxygen transfer and reduced energy consumption, the AS-TD113 fine bubble diffuser helps achieve more environmentally friendly and cost-effective wastewater management.
8. Adapt to a variety of wastewater treatment needs: The diffuser can adapt to various types and compositions of wastewater treatment needs, providing flexible solutions.
Tube Diffuser AS-TD113 Application
AS-TD113 Tube diffusers play a key role in the secondary treatment of pulp and paper industry wastewater. Wastewater from this industry is characterized by high concentrations of organics, color and suspended solids, placing extreme demands on the wastewater treatment system. AS-TD113 Tube diffusers increase the dissolution rate and transport efficiency of oxygen by generating fine air bubbles, which are essential for promoting the growth and activity of microorganisms in the wastewater. These microorganisms effectively remove pollutants from the wastewater by breaking down the organic matter in the wastewater into harmless substances such as carbon dioxide and water through a biodegradation process.
Parameter
|
Item number
|
AS-TD63
|
AS-TD93
|
AS-TD113 |
Bubble type | Fine Bubble | Fine Bubble | Fine Bubble |
Tube diameter(mm) | 63 | 93 | 113 |
Material | Special Formula EPDM with UV Protector import from Germany /Silicon Membrane | ||
Tube material :Acrylonitrile-butadiene-styrene with UV Protector (ABS) | |||
Length | 500/750/1000mm | ||
Connector | 3/4NPT | ||
Flow range(m³/h) | 2-14 | 5-20 | 6-28 |
Bubble Size(mm) | 1-2 | 1-2 | 1-2 |
Service Area(m²) | 0.75-2.5 | 1.0-3.0 | 1.5-2.5 |
