6.6kV Solar Cable Copper Conductor CVT (E-E)
group nameCopper Conductor
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelCVT (E-E)
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 16:57:09 GMT
Paramtents
Rating Voltage 6600V
Testing Voltage AC 17kV
Reference Standard JIS C 3005, JIS C 3606

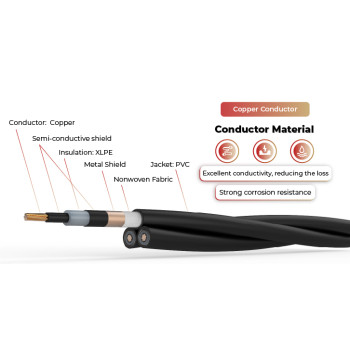

Conductor Bare copper
Insulation XLPE, Natural color
Shield Semi-conductive shield, metal shield
Fabric Nonwoven fabric
Jacket PVC, Black
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 38~100mm²
Insulation Color: Natural
Jacket Color: Black
Insulation Color: Natural
Jacket Color: Black
Detailed
Advantages
6.6kV Solar Cable Copper Conductor CVT (E-E)
The cable has a voltage of 6.6kV, which is a medium voltage between 1 kV and 35 kV. This type of cable has copper conductor, and is widely used in urban distribution networks, industrial enterprises, and large-building power supply systems. Medium-voltage cables are economical and practical for power transmission and can meet the power needs of most occasions. In addition, its structural design is complex, including a semi-conductive shielding layer, a metal shielding layer, and non-woven fabric.
· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
· Flame retardant JIS C 3005 (60 degrees tilt test)
Technical Data
|
Tested voltage
|
17kV AC
|
||
|
Rated voltage
|
6600V
|
||
|
Reference Standard
|
JIS C 3005, JIS C 3606
|
||
Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
6.6kV Solar Cable Copper Conductor CVT (E-E) |
38
|
4.00
|
2.10 |
46.50
|
0.491 |
|
60
|
4.00
|
2.20 |
51.50
|
0.311 | |
100 | 4.00 | 2.40 | 56.00 | 0.187 |
