2kV Solar Cable PV 2000DC(TC5) TÜV SÜD
group nameTÜV SÜD Solar Cable
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelPV 2000DC(TC5)
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 19:48:17 GMT
Paramtents
Rated temperature -40°C~90°C
Rated voltage 2000V DC
Reference Standard JETST-CABL-001-1(H25-10)
Testing Standard IEC60332-1
Reference Standard PPP 58209A: 09.22

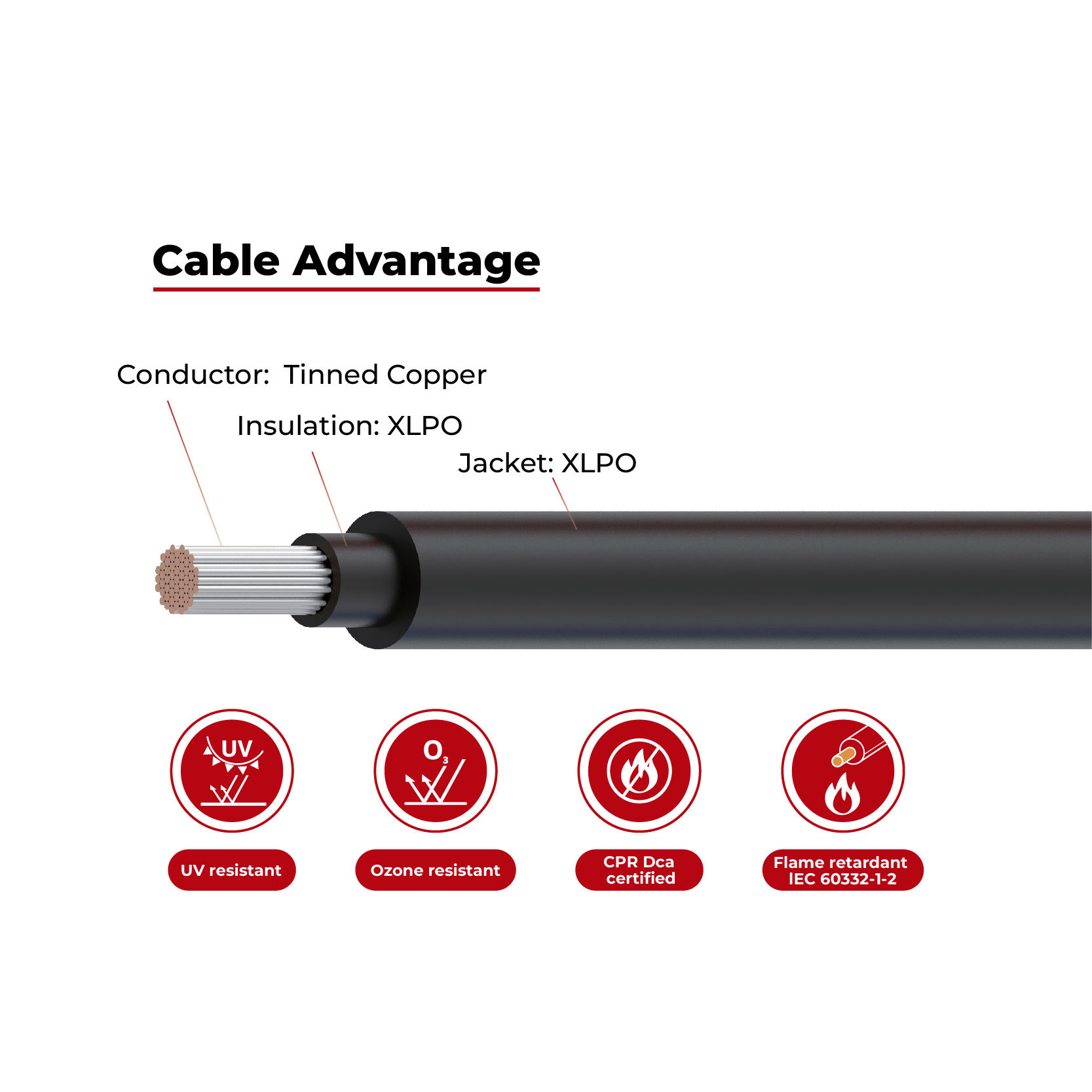

Conductor Tinned copper 2.5~240mm²
Insulation XLPO, Optional color
Jacket XLPO, Optional color
Flame Test IEC60332-1
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 2.5~240mm²
Insulation Color: Optional color
Jacket Color: Optional color
Insulation Color: Optional color
Jacket Color: Optional color
Detailed
Advantages
2kV Solar Cable PV 2000DC(TC5) TÜV SÜD
PV 2000DC(TC5) cable is used in 2kV photovoltaic power generation systems and can adapt to long-term and permanent use under variable and harsh outdoor climate conditions. With its copper conductor, it can be widely used in solar projects.
· Can be used for DC 2000V high voltage
· Low smoke halogen free
· UV retardant
· Flame retardant IEC60332-1
Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
|
Rated voltage
|
2000V DC
|
|
Reference Standard | JETST-CABL-001-1(H25-10) | |
Testing Standard | IEC60332-1 | |
Reference Standard | PPP 58209A: 09.22 | |
Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Max. Cable O.D. (mm) | Conductor Resistance Max
(Ώ/km,20°C) |
2kV Solar Cable PV 2000DC(TC5) TÜV SÜD | 2.5 | 1.10 | 0.80 | 6.30 | 8.21 |
4.0 | 1.10 | 0.80 | 7.00 | 5.09 | |
6.0 | 1.10 | 0.80 | 7.60 | 3.39 | |
10 | 1.10 | 0.80 | 8.70 | 1.95 | |
16 | 1.10 | 0.90 | 10.20 | 1.24 | |
25 | 1.15 | 1.00 | 12.50 | 0.795 | |
35 | 1.15 | 1.10 | 14.30 | 0.565 | |
50 | 1.25 | 1.20 | 16.60 | 0.393 | |
70 | 1.35 | 1.20 | 19.00 | 0.277 | |
95 | 1.35 | 1.30 | 21.10 | 0.210 | |
120 | 1.45 | 1.30 | 23.30 | 0.164 | |
150 | 1.65 | 1.40 | 26.00 | 0.132 | |
185 | 1.85 | 1.60 | 29.00 | 0.108 | |
240 | 1.95 | 1.70 | 32.60 | 0.0817 |
