1.5kV Solar Cable Dual Core 2PfG 2642 PV1500DC-AL DB TÜV

  • group nameTÜV Solar Cable

  • Min Order1 piece

  • brand nameSUNKEAN Solar Manufacturer

  • model2PfG 2642 PV1500DC-AL DB

  • payment methodT/T, L/C

  • update timeSun, 10 Nov 2024 00:32:32 GMT

Paramtents

  • Rated temperature -40°C~90°C

  • Max. Short Circuit Temp 250°C / 5s

  • Tested voltage 6.5kVAC / 5min

  • Rated voltage DC 1500V U0/U=1000V

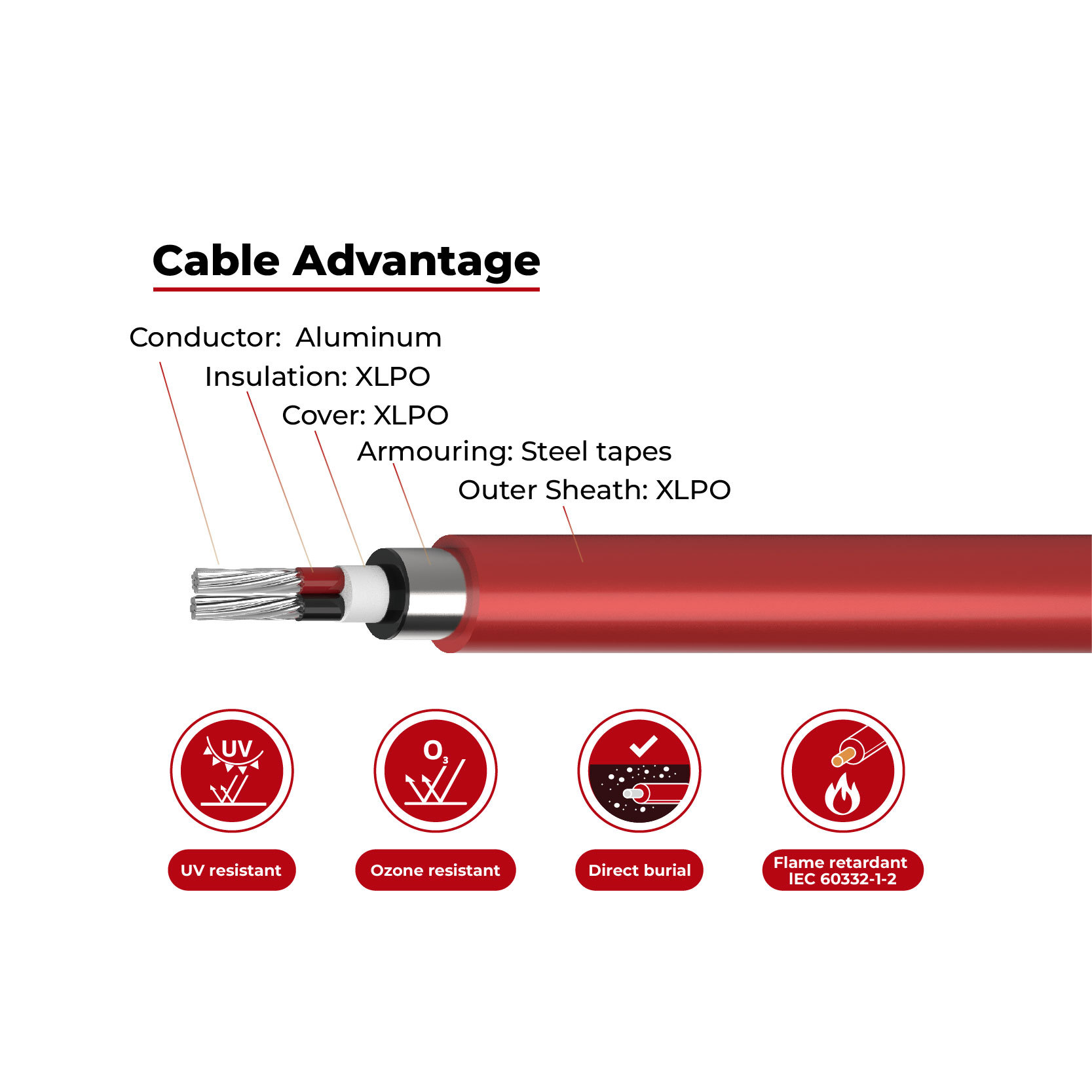

  • Conductor Stranded aluminum alloy, Class 2, 2×10~400mm²

  • Insulation XLPO

  • Cover XLPO

  • Armouring Steel tapes

  • Outer Sheath XLPO

  • Flame test IEC 60332-1

Packging & Delivery

  • Min Order1 piece

Briefing

Conductor: 2×10~400mm²
Insulation Color: Black & red
Jacket Color: Red

Detailed

Advantages
solar cable

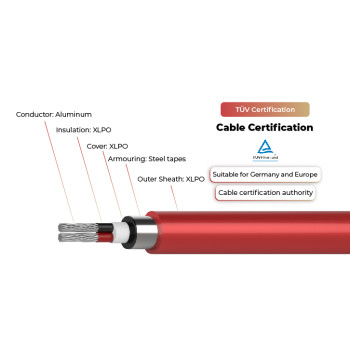

1.5kV Solar Cable Dual Core 2PfG 2642 PV1500DC-AL DB TÜV
UV resistant low voltage cable. Especially welsuited for outdoor applications due to the very robust outer sheath. Acc. to TÜV Rheinland 2PfG2642 /01.22 for aluminium cables and protected, fixed installation in ground.

· Suitable for direct burial
· UV resistant
· Radial humidity resistant
· Flame retardant lEC 60332-1
· Steel tapes armored, suitable as grounding andprotective earth

Technical Data
Rated temperature
-40°C~90°C
Max. Short Circuit Temp
250°C / 5s
Tested voltage
6.5kVAC / 5min
Rated voltage
DC 1500V
U0/U=1000V
solar cable
Product description
Cable Name
Cross Section
(mm²)
Insulation Thickness
(mm)
Jacket Thickness
(mm)
Armored O.D.
(mm)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,20°C)
1.5kV Solar Cable Dual Core 2PfG 2642 PV1500DC-AL DB TÜV
2x10
0.80
1.80
14.40
18.00
3.08
2x16
0.90
1.80
17.20
20.00
1.91
2x25
1.00
1.80
20.20
22.80
1.200
2x35
1.10
1.80
22.80
25.20
0.868
2x50
1.20
1.80
25.20
28.20
0.641
2x70
1.20
1.90
30.80
32.20
0.443
2x95
1.30
2.00
35.40
37.00
0.320
2x120
1.30
2.20
38.80
40.80
0.253
2x150
1.40
2.30
43.40
44.40
0.206
2x185
1.60
2.50
47.60
49.00
0.164
2x240
1.70
2.60
52.80
54.20
0.125
2x300
1.80
2.80
58.20
59.40
0.1000
2x400
2.00
3.10
67.60
66.80
0.0778
