1.5kV Solar Cable Dual Core 2PfG 2642 PV1500DC-AL TÜV
group nameTÜV Solar Cable
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
model2PfG 2642 PV1500DC-AL
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 16:57:31 GMT
Paramtents
Rated temperature -40°C~90°C
Max. Short Circuit Temp 250°C / 5s
Tested voltage 6.5kVAC / 5min
Rated voltage DC 1500V U0/U=1000V
Conductor Stranded aluminum alloy, Class 2, 2×10~400mm²
Insulation XLPO
Jacket XLPO
Flame test IEC 60332-1
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 2×10~400mm²
Detailed

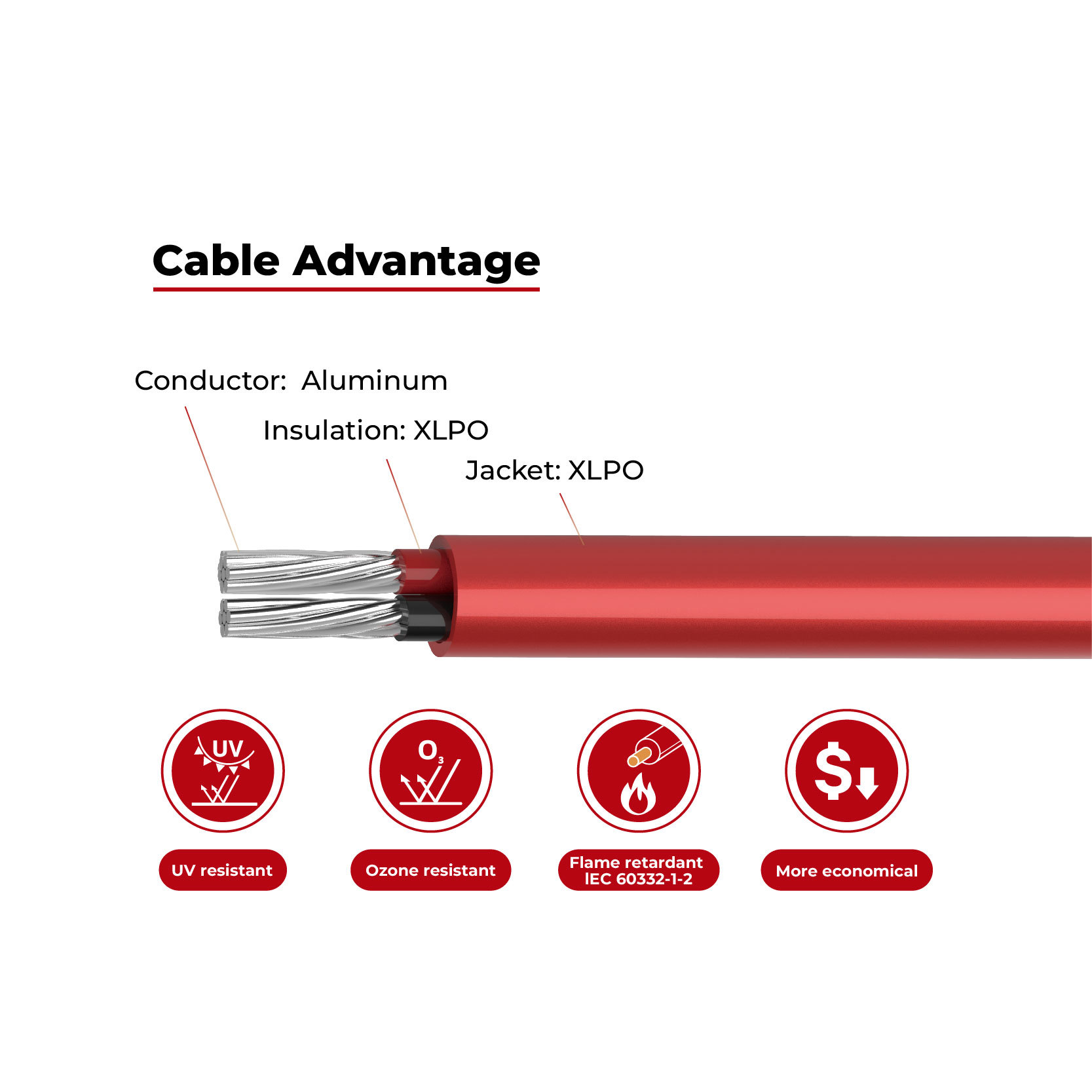

Advantages
1.5kV Solar Cable Dual Core 2PfG 2642 PV1500DC-AL TÜV

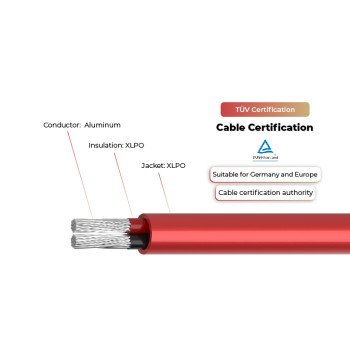

UV resistant low voltage cable. Especially welsuited for outdoor applications due to the very robust outer sheath. Acc. to TÜV Rheinland 2PfG2642 /01.22 for aluminium cables and protected, fixed installation in ground.
· Halogen free
· UV resistant
· XLPO insulation and jacket
· Simple feed, low friction of the jacket
· Flame retardant lEC 60332-1
Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Max. Short Circuit Temp | 250°C / 5s | |
Tested voltage | 6.5kVAC / 5min | |
|
Rated voltage
|
DC 1500V
U0/U=1000V |
|
Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Dual Core 2PfG 2642 PV1500DC-AL TÜV | 2x10 | 0.80 | 11.60 | 0.80 | 13.20 | 3.08 |
2x16 | 0.90 | 13.60 | 0.90 | 15.40 | 1.91 | |
2x25 | 1.00 | 16.40 | 1.00 | 18.40 | 1.200 | |
2x35 | 1.10 | 18.80 | 1.10 | 21.00 | 0.868 | |
2x50 | 1.20 | 21.80 | 1.20 | 24.20 | 0.641 | |
2x70 | 1.20 | 25.20 | 1.20 | 27.60 | 0.443 | |
2x95 | 1.30 | 28.60 | 1.30 | 31.20 | 0.320 | |
2x120 | 1.30 | 31.60 | 1.30 | 34.20 | 0.253 | |
2x150 | 1.40 | 35.00 | 1.40 | 37.80 | 0.206 | |
2x185 | 1.60 | 38.80 | 1.60 | 42.00 | 0.164 | |
2x240 | 1.70 | 43.80 | 1.70 | 47.20 | 0.125 | |
2x300 | 1.80 | 48.60 | 1.80 | 52.20 | 0.1000 | |
2x400 | 2.00 | 55.00 | 2.00 | 59.00 | 0.0788 |
