1.5kV Solar Cable Single Core 2PfG 2642 PV1500DC-AL TÜV
group nameTÜV Solar Cable
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
model2PfG 2642 PV1500DC-AL
payment methodT/T, L/C
-
update timeTue, 17 Sep 2024 03:54:10 GMT
Paramtents
Rated temperature -40°C~90°C
Max. Short Circuit Temp 250°C / 5s
Tested voltage 6.5kVAC / 5min
Rated voltage DC 1500V U0/U=1000V
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 1×10~400mm²
Detailed

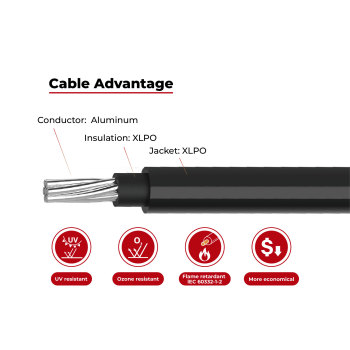

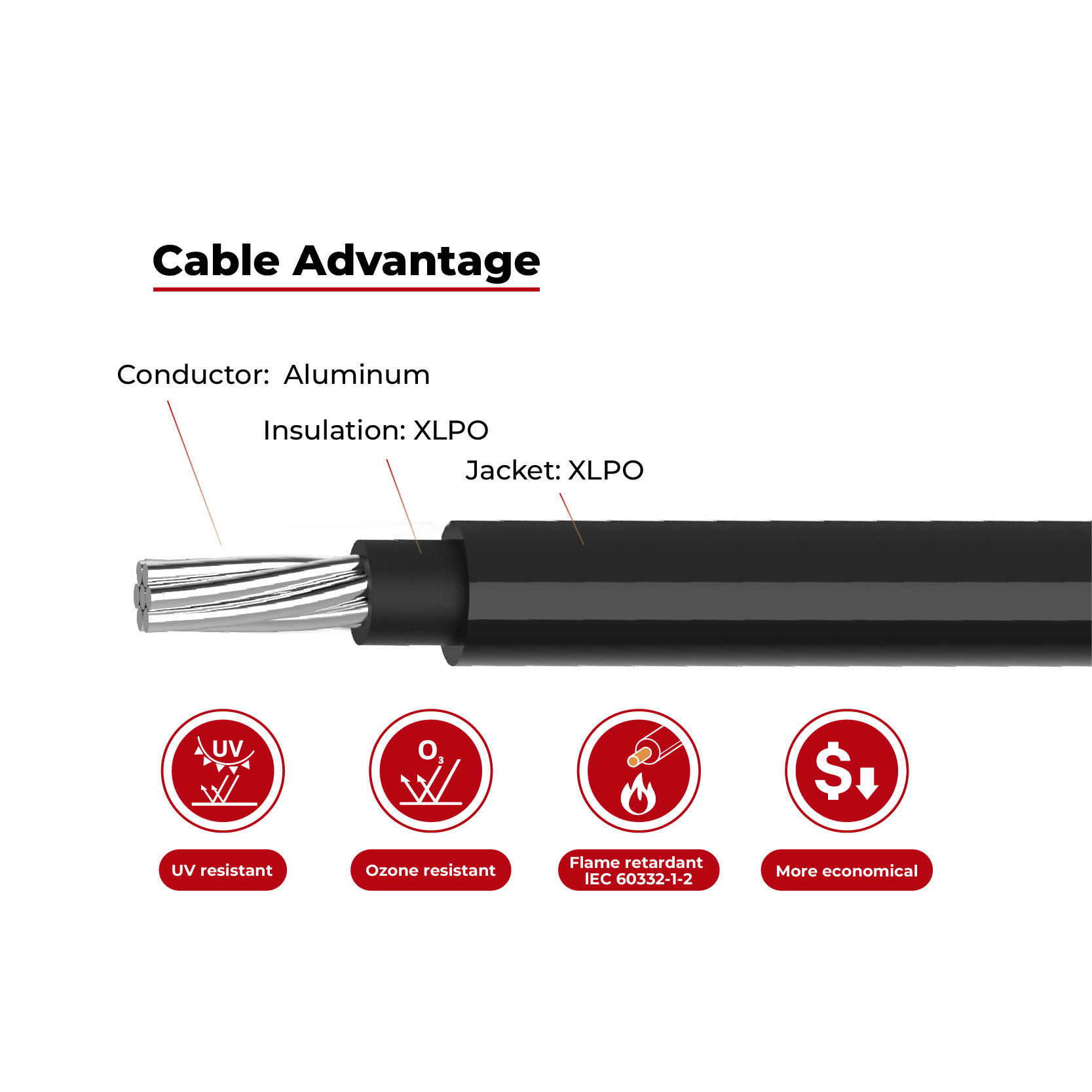

Advantages
TÜV 2PfG 2642 PV1500DC-AL Single Core
UV resistant low voltage cable. Especially welsuited for outdoor applications due to the very robust outer sheath. Acc. to TÜV Rheinland 2PfG2642 /01.22 for aluminium cables and protected, fixed installation in ground.
· Halogen-free
· UV resistant
· XLPO insulation and jacket
· Simple feed, low friction of the jacket
· Flame retardant lEC 60332-1
Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Max. Short Circuit Temp | 250°C / 5s | |
Tested voltage | 6.5kVAC / 5min | |
|
Rated voltage
|
DC 1500V
U0/U=1000V |
|
Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
TÜV 2PfG 2642 PV1500DC-AL Single Core | 10 | 0.80 | 5.8 | 0.80 | 7.4 | 3.08 |
16 | 0.90 | 6.8 | 0.90 | 8.6 | 1.91 | |
25 | 1.00 | 8.2 | 1.00 | 10.2 | 1.200 | |
35 | 1.10 | 9.4 | 1.10 | 11.6 | 0.868 | |
50 | 1.20 | 10.9 | 1.20 | 13.3 | 0.641 | |
70 | 1.20 | 12.6 | 1.20 | 15.0 | 0.443 | |
95 | 1.30 | 14.3 | 1.30 | 16.9 | 0.320 | |
120 | 1.30 | 15.8 | 1.30 | 18.4 | 0.253 | |
150 | 1.40 | 17.5 | 1.40 | 20.3 | 0.206 | |
185 | 1.60 | 19.4 | 1.60 | 22.6 | 0.164 | |
240 | 1.70 | 21.9 | 1.70 | 25.3 | 0.125 | |
300 | 1.80 | 24.3 | 1.80 | 27.9 | 0.1000 | |
400 | 2.00 | 27.5 | 2.00 | 31.5 | 0.0788 |
Packing & Delivery
Application Scenario
Global Exhibitions
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
