1.5kV Solar Cable Twin Core 62930 IEC131 / H1Z2Z2-K TÜV
group nameTÜV Solar Cable
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
model62930 IEC131 / H1Z2Z2-K
payment methodT/T, L/C
-
update timeSat, 09 Nov 2024 00:02:42 GMT
Paramtents
Rated temperature -40°C~90°C
Tested voltage 6500V AC
Rated voltage 1500V DC
Conductor Tinned copper 2X1.5~35mm²
Insulation XLPO, Optional color
Jacket XLPO, Optional color
Water resistance AD8
Flammability class Dca acc. CPR
Reference Standard EN50618 & IEC62930
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 2×1.5~35mm²
Insulation Color: Optional color
Jacket Color: Optional color
Insulation Color: Optional color
Jacket Color: Optional color
Detailed
Advantages

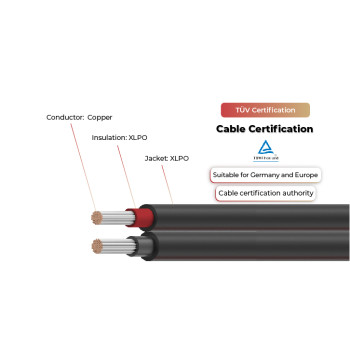

1.5kV Solar Cable Twin Core 62930 IEC131 / H1Z2Z2-K TÜV
This cable is widely used in photovoltaic power generation and solar system, connecting solar module and electrical components. It is suitable for outdoor extreme environment.
· Higher Uv-stability
· Suitable for direct burial
· Water resistance AD8
· Flammability class Dca acc.CPR
· Higher mechanical stability
· Higher insulation resistance
Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Tested voltage | 6500V AC | |
|
Rated voltage
|
1500V DC
|
|
Reference Standard | EN50618 & IEC62930 | |
Testing Standard | Smoke Density Test: Transmittance≥60% EN50618
Cold Bending Test: -40°C±2°C no crack EN60811-504 | |
Product description
Cable Name |
Cross Section
(mm²) | Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Twin Core 62930 IEC131 / H1Z2Z2-K TÜV | 2x1.5 | 0.70 | 0.80 | 4.70*9.60 | 13.7 |
2x2.5 | 0.70 | 0.80 | 5.20*10.60 | 8.21 | |
2x4.0 | 0.70 | 0.80 | 5.50*11.20 | 5.09 | |
2x6.0 | 0.70 | 0.80 | 6.10*12.40 | 3.39 | |
2x10 | 0.70 | 0.80 | 7.20*14.70 | 1.95 | |
2x16 | 0.70 | 0.90 | 8.80*17.90 | 1.24 | |
2x25 | 0.90 | 1.00 | 10.80*21.90 | 0.795 | |
2x35 | 0.90 | 1.10 | 12.40*25.10 | 0.565 |
Packing & Delivery
Application Scenario
Global Exhibitions
FAQ
Q: How could i get the sample ?
A: We have different kinds of XLPE insulation pv solar cable,photovoltaic cable,xlpe solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.
Q: How long is the delivery time?
A1)For Sample: 1-3 Days;
A2)For small Orders: 3-10 Days;
A3)For mass Orders:15-20 Days;
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.
If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
