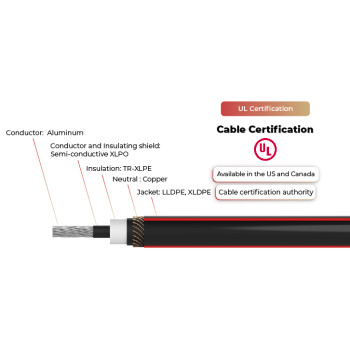

35kV Solar Cable MV-90, MV-105 UL
group nameUL Solar Cable
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelMV-90, MV-105
payment methodT/T, L/C
-
update timeSat, 09 Nov 2024 02:45:19 GMT
Paramtents
Rated voltage 35kV
Maximum Conductor Temperature (MV-90)90°C, (MV-105)105°C
Conductor Aluminium alloy
Insulation TR-XLPE
Conductor and Insulating shield Semi-conductive XLPO
Concentric Neutral Conductor Bare copper
Jacket (MV-90)LLDPE, (MV-105)XLDPE
Reference Standard ICEA S-94-649 UL 1072
Packging & Delivery
Min Order1 piece
Briefing
The cable operates at 35kV or lower and can be used in wet or dry locations, direct burial, underground pipes and locations exposed to sunlight.
Detailed
Advantages
35kV Solar Cable MV-90, MV-105 UL
The cable operates at 35kV or lower and can be used in wet or dry locations, direct burial, underground pipes and locations exposed to sunlight.
· Rated for direct burial
· Duried in conduit
· Low smoke halogen free
· Higher insulation resistance
· High Voltage
Technical Data
|
Maximum Conductor Temperature
|
MV-90: 90°C
MV-105: 105°C |
|
|
Rated voltage
|
35kV
|
|
Reference Standard | ICEA S-94-649
UL 1072 | |
Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) |
Outer Layer Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
35kV Solar Cable MV-90, MV-105 UL | 4/0 AWG | 10.67 | 2.03 | 45.02 | 0.274 |
500 MAM | 10.67 | 2.03 | 53.42 | 0.116 | |
750 MAM | 10.67 | 2.03 | 59.36 | 0.077 | |
1000 MAM | 10.67 | 2.03 | 61.39 | 0.0581 | |
1250 MAM | 10.67 | 2.03 | 65.38 | 0.0462 |
