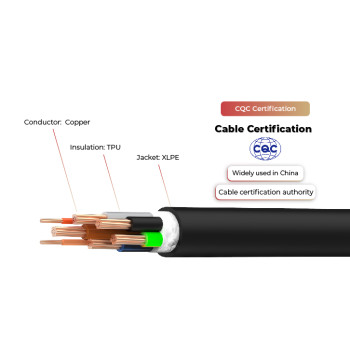

450V Charging Cable GB/T33594 EV-EYU CQC
group nameCQC Charging Cable
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelEV-EYU
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 02:53:07 GMT
Paramtents
Conductor Bare copper(1~70mm²) or tinned copper(1~35mm²)
Insulating material TPU
Out layer material XLPE
Rated voltage AC 450 / 750V
Temperature rating -40°C to +90°C
Flame test IEC60332-1
According to GB/T33594
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 1~70mm²
Color: Optional color (except white)
Color: Optional color (except white)
Detailed
Advantages
GB/T33594 EV-EYU
Used in conductive charging connection devices for electric vehicles.
· Low temperature resistance
· Oil resistant
· Acid and alkali resistant
· Ozone resistant
· Hydrolysis resistance
· High Wear Resistance
Technical Data
|
Conductor:
|
Bare copper(1~70mm²)
or tinned copper(1~35mm²) |
|
|
Insulating material / color:
|
TPU
Main wire core: Blue, brown, black, gray, yellow and green
Single wire core: Orange,red |
|
|
Out layer material / color:
|
XLPE / Optional colors(except white)
|
|
|
Rated voltage:
|
AC 450 / 750V
|
|
|
Temperature rating:
|
-40°C to +90°C
|
|
Flame Test: | IEC60332-1 | |
According to: | GB/T33594 | |
Product description
Cross section
(mm²) |
Permissible ampacity(Ref.)
(A) |
Insulation Nom Thickness
(mm) |
Outer Sheath Nom Thickness
(mm) |
Non-shiedlded Cable O.D.
(mm) |
Conductor Resistance
Max (Ω/km, 20°C) |
3x1.5mm2+(0～10)x(0.5～1.0) |
10
|
0.70
|
1.00
|
9.7~12.5 |
13.3 |
3x2.5mm2+(0～10)x(0.5～1.0) | 16 | 0.70 | 1.10 | 10.6~13.7 | 7.98 |
3x4mm2+(0～10)x(0.5～1.0) |
20
|
0.70
|
1.10
|
11.6~14.9
|
4.95 |
3x6mm2+(0～10)x(0.5～1.0) | 32 | 0.70 | 1.20 | 12.9~16.4 | 3.30 |
3x10mm2+(0～10)x(0.5～1.0) | 40 | 0.70 | 1.30 | 14.7~18.7 | 1.91 |
3x16mm2+(0～10)x(0.5～1.0) | 63 | 0.70 | 1.50 | 17.0~21.6 | 1.21 |
5x2.5mm2+(0～10)x(0.5～1.0) | 16 | 0.70 | 1.20 | 12.7~16.2 | 7.98 |
5x4mm2+(0～10)x(0.5～1.0) | 20 | 0.70 | 1.30 | 14.2~18.1 | 4.95 |
5x6mm2+(0～10)x(0.5～1.0) | 32 | 0.70 | 1.40 | 15.7~20.0 | 3.30 |
5x10mm2+(0～10)x(0.5～1.0) | 40 | 0.70 | 1.60 | 18.3~23.3 | 1.91 |
5x16mm2+(0～10)x(0.5～1.0) | 63 | 0.70 | 1.70 | 21.1~26.8 | 1.21 |
5x25mm2+(0～10)x(0.5～1.0) | 80 | 0.90 | 2.00 | 26.2~33.1 | 0.780 |
5x35mm2+(0～10)x(0.5～1.0) | 125 | 0.90 | 2.20 | 29.4~37.1 | 0.554 |
