Solar Cable Trunk Connector IP68
group nameSolar Harness
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelTrunk Connector
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 09:37:29 GMT
Paramtents
IP Test IP68
Material TPV
Production Technology Hi-tech sealing technology
Packging & Delivery
Min Order1 piece
Briefing
An innovative all-in-one trunk bus system that provides stable power transmission from panels to the utility system.
Detailed
Advantages

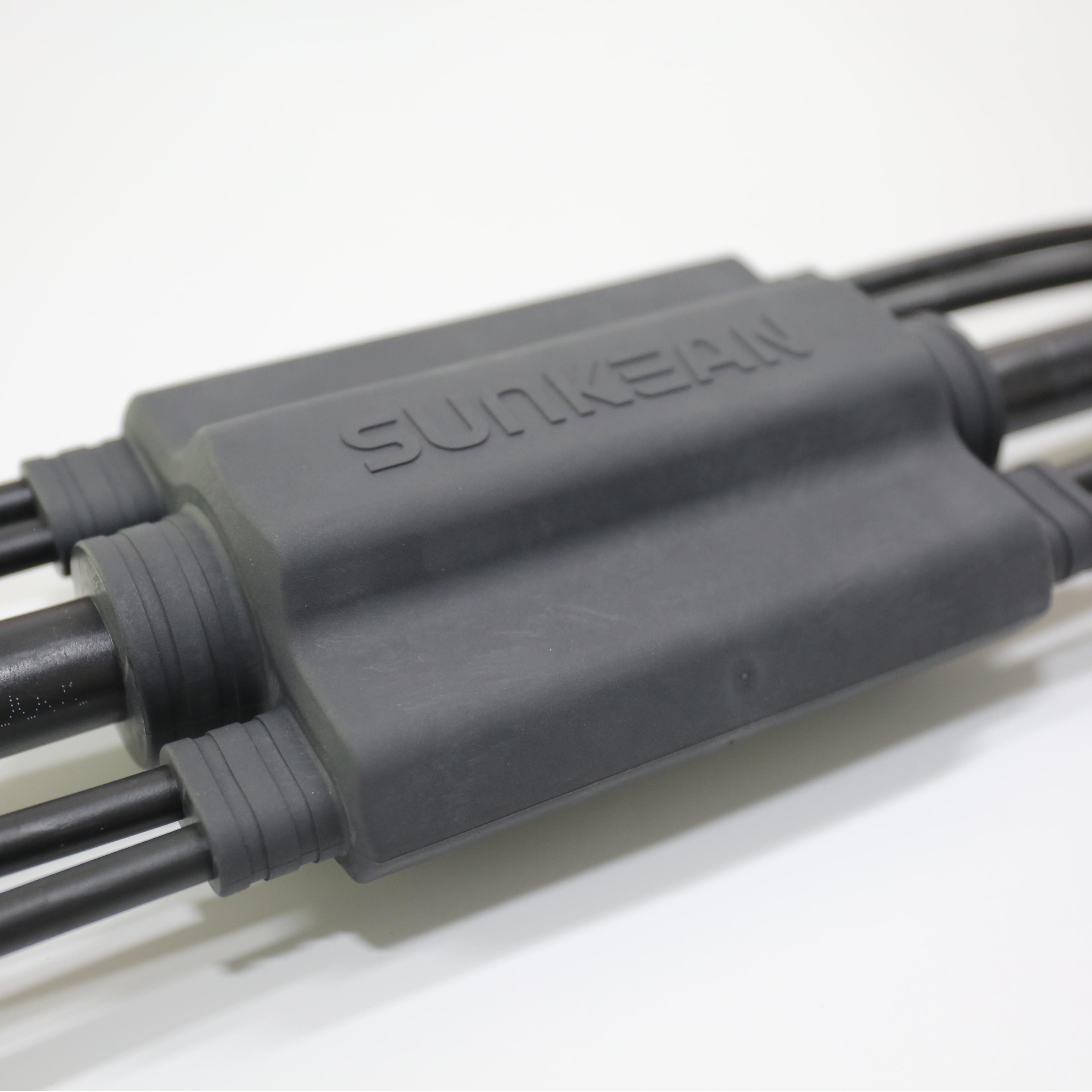

Solar Cable Trunk Connector IP68
It is an innovative all-in-one trunk bus system that provides stable power transmission from solar panels to the utility power collection system. It reduces the Capex and increases the ROI of a utility scale solar installation. From the appearance, trunk connector has a delicate appearance and harmonious and unified colors; from the process, the first-class injection molding equipment is used to create an excellent connection at the joint.
· Hi-tech sealing technology
· Excellent waterproof performance
· Plug and play - easy to install
· Reduce material waste & labor cost
· IP68
· TPV material
Technical Data
Product Name | Item | Plug Connector |
||
Solar Cable Trunk Connector IP68 | Voltage Rating | 1500V DC |
||
Isc. Max Trunk Isc. | 845A for 1000MCM |
|||
Strings Per Mold | Customized according to needs, usually 6 ~ 7 strings | |||
Size of String Wire | 10AWG, 8AWG, 6AWG, 4AWG, 2AWG | |||
Work Environment Temperature | -40°C~+60°C, Humidity range: 5% ~ 95% | |||
Max Ambient Temperature | 60°C | |||
Over Voltage Category / Pollution Degree | CATIII/ 3 | |||
Flame Rating | UL94-5VA | |||
Safety Degree | II | |||
Application | Outdoor use, uv resistant (F1) | |||
