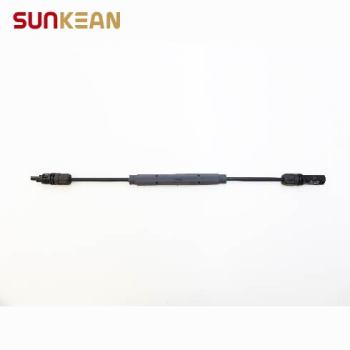

1500V Solar Cable In-line Fuse Assembly
group nameSolar Harness
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelIn-line Fuse Assembly
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 09:40:49 GMT
Paramtents
Fuse-link Standard Ref. to: UL248-19, IEC 60269-6
Insulation Material Special-Hotmelt, UV-stable, IP68
Flame Class Self-extinguishing UL94-5VA
Packging & Delivery
Min Order1 piece
Briefing
Made of high-quality weather-resistant materials and mold-sealed manufacturing process to ensure long-term reliability.
Detailed
Advantages
1500V Solar Cable In-line Fuse Assembly
SUNKEAN In-line Fuse Assembly is made of high-quality weather-resistant materials and mold-sealed manufacturing process to ensure long-term reliability. They can be installed on site. Low contact resistance and high current transfer capability ensure high production efficiency. With IP68 waterproof rating, it can be used in a wide operating temperature range.
Technical Data
Product Name | Item | Plug Connector |
||
1500V Solar Cable In-line Fuse Assembly | Nominal Voltage | 1500V DC |
||
Interrupting Ratings | 50kA |
|||
Fuse-link | Standard Ref. to: UL248-19, IEC 60269-6 | |||
Insulation Material | Special-Hotmelt, UV-stable, IP68 | |||
Flame Class | Self-extinguishing UL94-5VA | |||
Working Environment Temperature | -40℃~+60'℃, Humidity range: 5%~95% | |||
Over Voltage Category/Pollution Degree | CATIII/3 | |||
Safety Degree | II | |||
Product description
Product Type | Fuse Voltage | Fuse Current | Cable Spec | Connector |
S-I...VI：Fuse Holder | 1000V DC | 1-32A (10x85mm)
10-50A (14x85mm)
60A (24x65mm)
70A (24x65mm)
80A (24x65mm) | 3.5mm2
5.5mm2
4mm2 /12AWG 6mm2 /10AWG 10mm2 /8AWG 16mm2 /6AWG | TE PV4-S
STAUBLI MC4
STAUBLI MC4-EVO2
AMPHENOL H4S
QC4.10 Plus
TLIAN T4
TRINA TS4
JINKO JK03M2
LONGI PV-LR5
TONGLIN TL-CABLE01S |
