600V Solar Cable Copper Conductor CVQ
group nameCopper Conductor
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelCVQ
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 11:09:15 GMT
Paramtents
Rated temperature -15°C~70°C
Tested voltage 2500V AC
Rated voltage 600V
Reference Standard JIS C 3005, JIS C 3605
Conductor Bare copper
Insulation XLPE, Natural color
Jacket PVC, Black
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 38~100mm²
Insulation Color: Black
Jacket Color: Black, blue, red and white
Insulation Color: Black
Jacket Color: Black, blue, red and white
Detailed
Advantages

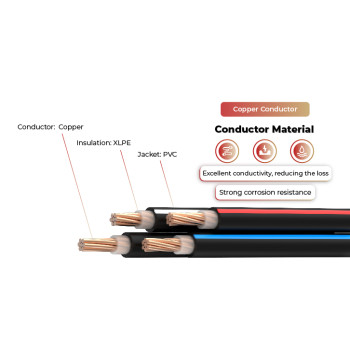

600V Solar Cable Copper Conductor CVQ
The Q in the name of CVQ cable means quarter, i.e. four cores, which are clearly distinguished by different colored marking strips. With the most universal 600V low voltage and copper conductor, it can adapt to various photovoltaic projects in the Japanese market. In addition, it passed the JIS C 3005 flame retardant test, ensuring the security and stability of Japanese market projects.
· High insulation resistance
· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
· Flame retardant JIS C 3005 (60 degrees tilt test)
Technical Data
|
Rated temperature
|
-15°C~70°C
|
|
Tested voltage | 2500V AC | |
|
Rated voltage
|
600V
|
|
Reference Standard | JIS C 3005, JIS C 3605 | |
Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable Copper Conductor CVQ | 38 | 1.20 | 1.50 | 30.50 | 0.491 |
60 | 1.50 | 1.50 | 36.50 | 0.311 | |
100 | 2.00 | 1.50 | 45.20 | 0.187 |
