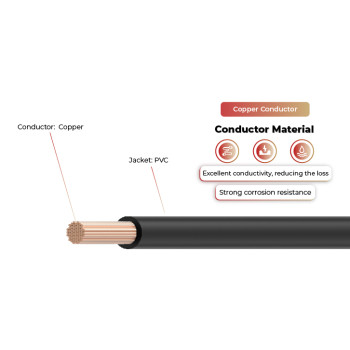

600V Solar Cable Copper Conductor IV
group nameCopper Conductor
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelIV
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 17:49:11 GMT
Paramtents
Rated temperature 60°C
Rated voltage 600V
Reference Standard JIS C 3005
Conductor Bare copper, 0.9~100mm²
Insulation PVC, Black, white, red, green, yellow, blue
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 0.9~100mm²
Color: Black, white, red, green, yellow, blue or other colors
Color: Black, white, red, green, yellow, blue or other colors
Detailed
IV Solar Cable Advantages
600V Solar Cable Copper Conductor IV
IV cable has a single-layer structure, composed of natural color insulation and copper conductor. The insulation material is PVC, it has many colors like black, white, red, green, yellow, and blue. As a common 600V cable type, it can be used in various photovoltaic projects in the Japanese market. WIth its copper conductor, it is destined to have stronger practical application effects such as better conductivity.
· High insulation resistance
· Good flexibility
· Damp heat resistant
· Oil resistant
· UV resistant
IV Solar Cable Technical Data
|
Rated temperature
|
60°C
|
|
Tested voltage | 0.9~8mm²: 1500V 14~22mm²: 2000V 38~100mm²: 2500V | |
|
Rated voltage
|
600V
|
|
Reference Standard | JIS C 3005 | |
IV Solar Cable Product description
Cable Name |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Cable O.D.
(mm) |
Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable Copper Conductor IV | 0.9 | 0.80 | 2.80 | 20.9 |
1.25 | 0.80 | 3.00 | 16.5 | |
2.0 | 0.80 | 3.40 | 9.24 | |
3.5 | 0.80 | 4.00 | 5.20 | |
5.5 | 1.00 | 5.00 | 3.33 | |
8.0 | 1.20 | 6.00 | 2.31 | |
14 | 1.40 | 7.60 | 1.30 | |
22 | 1.60 | 9.20 | 0.824 | |
38 | 1.80 | 11.50 | 0.487 | |
60 | 1.80 | 14.00 | 0.303 | |
100 | 2.00 | 17.00 | 0.180 |
