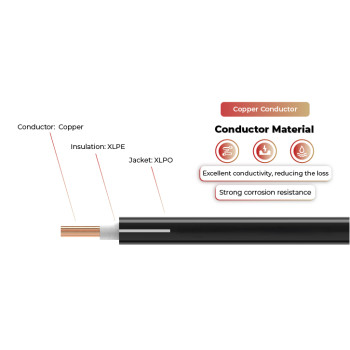

1.5kV Solar Cable Copper Conductor PV-CQ
group nameCopper Conductor
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelPV-CQ
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 16:35:24 GMT
Paramtents
Rated temperature -40°C~90°C
Tested voltage 6500V AC
Rated voltage 1500V DC
Flame Test JIS C3665-1-2
Conductor Bare copper(2~8mm²) or tinned copper(3.5~10mm²)
Insulation XLPE, White
Jacket XLPO, Black
Reference Standard JETST-CABL-001-1(H25-10)
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 2~8mm²
Insulation Color: White
Jacket Color: Black & white
Insulation Color: White
Jacket Color: Black & white
Detailed
PV-CQ Solar Cable Advantages
1.5kV Solar Cable Copper Conductor PV-CQ
With the universal 1500V voltage and copper conductor, PV-CQ cable can adapt to solar cell modules, extension cables between solar cell modules and junction boxes, wiring cables between connection boxes and power regulators in the Japanese market. In addition, it passed the JET certification and has excellent flame retardant and weather resistance, ensuring the security and stability of Japanese market projects. From the appearance, there is a white stripe on the XLPO sheath of the PV-CQ cable, which can help distinguish it from other types of cables.
· Excellent flame retardant and weather resistance
· Heat and cold resistance
· Halogen free
· Corresponding processing of terminal connectors
PV-CQ Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
Tested voltage | 6500V AC | |
|
Rated voltage
|
1500V DC
|
|
Reference Standard | JETST-CABL-001-1(H25-10) | |
Testing Standard | Cold Bending Test: JIS C3660-1-4 Flame Test: JIS C3665-1-2 | |
PV-CQ Solar Cable Product description
Cable Name |
Conductor
Material |
Cross Section
(mm²) |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
1.5kV Solar Cable Copper Conductor PV-CQ | Bare copper | 2 | 0.70 | 1.11 | 5.60 | 9.24 |
3.5 | 0.70 | 1.13 | 6.30 | 5.20 | ||
5.5 | 0.70 | 1.15 | 7.00 | 3.33 | ||
8 | 0.70 | 1.18 | 7.60 | 2.31 | ||
Tinned copper | 3.5 | 0.70 | 1.13 | 6.30 | 5.41 | |
4 | 0.70 | 1.14 | 6.30 | 5.09 | ||
5.5 | 0.70 | 1.15 | 7.00 | 3.47 | ||
6 | 0.70 | 1.16 | 7.10 | 3.39 | ||
10 | 0.70 | 1.25 | 8.00 | 1.95 |
