600V Solar Cable Copper Conductor NYY-J, NYY-O
group nameCopper Conductor
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelNYY-J, NYY-O
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 13:41:50 GMT
Paramtents
Tested voltage 4000V
Rated voltage U0/U: 0.6/1.0kV
Reference Standard IEC 60502-1

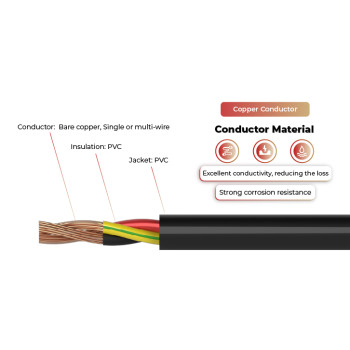

Conductor Bare copper, Single or multi-wire
Insulation PVC
Jacket PVC
Protective Conductor J=With GN-YE protective conductor
During installation -5°C ~ +50°C
Fixed installation -40°C ~ +70°C
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 1C~7C×1.5~95mm²
Color: ≤ 5 cores: differentiated by color; ≥ 6 cores: Black, numbered in white
Color: ≤ 5 cores: differentiated by color; ≥ 6 cores: Black, numbered in white
Detailed
NYY-J, NYY-O Solar Cable Advantages
600V Solar Cable Copper Conductor NYY-J, NYY-O
NYY cables have TÜV certification and can be widely used in buildings, energy storage systems and other scenarios in European countries. The insulation layer and sheath layer of the cable are both made of PVC material, which is soft and easy to lay in the building. In addition, the PVC material can effectively ensure the cable's moisture-proof and dust-proof capabilities, overcoming the effects of humidity under weather conditions in construction sites and dust in confined spaces.
· Flame retardant IEC60332-1
· Can be used for building installation
NYY-J, NYY-O Solar Cable Technical Data
Core Identification Code | ≤ 5 cores: differentiated by color
≥ 6 cores: Black, numbered in white | |
Protective Conductor | J=With GN-YE protective conductor O=Without productive condoctor | |
|
Rated temperature
|
During installation: -5°C ~ +50°C
Fixed installation: -40°C ~ +70°C |
|
Tested voltage | 4000V | |
|
Rated voltage
|
U0/U: 0.6/1.0kV
|
|
Reference Standard | IEC 60502-1 | |
NYY-J, NYY-O Solar Cable Product description
Cable Name |
Number of cores
and mm² per conductor |
Insulation Thickness
(mm) |
Insulation O.D. (mm) |
Outer Layer Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable Copper Conductor NYY-J | 1x25 | 1.20 | 8.20 | 1.40 | 11.00 | 0.780 |
1x35 | 1.20 | 11.30 | 1.40 | 14.10 | 0.554 | |
1x50 | 1.40 | 12.80 | 1.50 | 15.80 | 0.386 | |
1x70 | 1.40 | 14.70 | 1.50 | 17.70 | 0.272 | |
4x25 | 1.20 | 8.20 | 1.80 | 23.60 | 0.780 | |
5x25 | 1.20 | 8.20 | 1.80 | 26.00 | 0.780 | |
600V Solar Cable Copper Conductor NYY-O | 1x25 | 1.20 | 8.20 | 1.40 | 11.00 | 0.780 |
1x35 | 1.20 | 11.30 | 1.40 | 14.10 | 0.554 | |
1x50 | 1.40 | 12.80 | 1.50 | 15.80 | 0.386 | |
1x70 | 1.40 | 14.70 | 1.50 | 17.70 | 0.272 | |
1x95 | 1.60 | 17.00 | 1.60 | 20.20 | 0.206 | |
4x25 | 1.20 | 8.20 | 1.80 | 23.60 | 0.780 | |
5x25 | 1.20 | 8.20 | 1.80 | 26.00 | 0.780 | |
5x70 | 1.40 | 14.70 | 2.40 | 45.30 | 0.272 |
