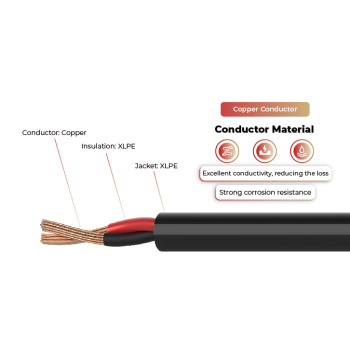

600V Solar Cable Copper Conductor CIC
group nameCopper Conductor
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelCIC
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 13:38:19 GMT
Paramtents
Rated temperature -40°C~90°C
Rated voltage 600V
Conductor Strands bare copper
Insulation XLPE, Optional color
Jacket XLPE, Black
Reference Standard UL44, CSA C22.2 No.239
Packging & Delivery
Min Order1 piece
Briefing
This cable can be used for photovoltaic inverter AC branch lines.
Detailed
CIC Solar Cable Advantages
600V Solar Cable Copper Conductor CIC
CIC cables are designed for specific distributed generation equipment/devices, such as photovoltaic modules, inverters, solar trackers, etc. SUNKEAN has passed the most accurate and targeted certification UL3003 of DG cable. According to the applicable scope of UL3003, the CIC cable with 600V voltage and copper conductor is designed to be wrapped under the overall sheath. With its excellent adaptability to harsh outdoor conditions, the cable can be installed in cable trays, cable ducts, and outdoor locations supported by load-bearing cables.
· Oil resistant
· Waterproof
· Sunlight resistant
· Extrusion resistant
· Rated for direct burial
· High flame retardant FT-1
CIC Solar Cable Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
|
Rated voltage
|
600V
|
|
Reference Standard | UL44, CSA C22.2 No.239 | |
CIC Solar Cable Product description
Cable Name |
Conductor
No. | Cross Section
(AWG) | Insulation Thickness
(mm) | Insulation O.D.
(mm) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
600V Solar Cable Copper Conductor CIC | 2 | 14 | 0.76 | 3.50 | 1.14 | 9.60 | 8.62 |
12 | 0.76 | 4.00 | 1.4 | 10.60 | 5.43 | ||
10 | 0.76 | 4.65 | 1.4 | 12.00 | 3.409 |
