600V Solar Cable Copper Cable SE-R
group nameCopper Conductor
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelSE-R
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 15:24:26 GMT
Paramtents
Rated temperature -40°C~90°C
Rated voltage 600V
Reference Standard UL854, UL1893
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 6AWG~4/0AWG
Detailed
Advantages

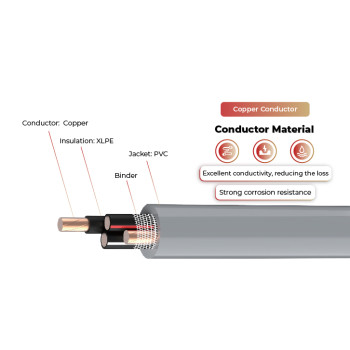

600V Solar Cable Copper Cable SE-R
Type SE, service entrance cable is primarily used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard. However, the cable may be used in all applications where Type SE cable is permitted. SER may be used in wet or dry locations at temperatures not to exceed 90°C.
· UV resistant
· Low smoke halogen free
· Can be used in wet and dry environments
Technical Data
|
Rated temperature
|
-40°C~90°C
|
|
|
Rated voltage
|
600V
|
|
Reference Standard | UL854, UL1893 | |
Product description
Cable Name |
Cross Section
(AWG) | Insulation Thickness
(mm) | Ground Size (AWG) |
Jacket Thickness
(mm) |
Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,25°C) |
600V Solar Cable Copper Cable SE-R | 6 | 1.14 | 1x6 | 0.76 | 18.40 | 0.411 |
4 | 1.14 | 1x6 | 0.76 | 20.30 | 0.258 | |
3 | 1.14 | 1x5 | 0.76 | 22.10 | 0.205 | |
2 | 1.14 | 1x4 | 0.76 | 24.00 | 0.162 | |
1 | 1.40 | 1x3 | 0.76 | 29.10 | 0.128 | |
1/0 | 1.40 | 1x2 | 0.76 | 31.50 | 0.102 | |
2/0 | 1.40 | 1x1 | 0.76 | 34.20 | 0.081 | |
3/0 | 1.40 | 1x1/0 | 0.76 | 37.10 | 0.064 | |
4/0 | 1.40 | 1x2/0 | 0.76 | 42.60 | 0.051 |
