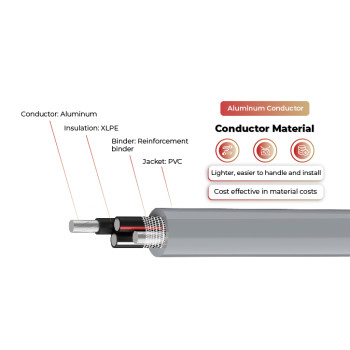

600V Solar Cable Aluminum Conductor SE-R

  • group nameAluminum Conductor

  • Min Order1 piece

  • brand nameSUNKEAN Solar Manufacturer

  • modelSE-R

  • payment methodT/T, L/C

  • update timeFri, 08 Nov 2024 20:02:31 GMT

Paramtents

  • Rated temperature -40°C~90°C

  • Rated voltage 600V

  • Conductor Class B, Copper or aluminum

  • Insulation XLPE

  • Binder Reinforcement binder

  • Jacket PVC, Gray

  • Reference Standard UL854, UL1893

Packging & Delivery

  • Min Order1 piece

Briefing

Conductor: 6AWG~4/0AWG
Insulation color: Black
Jacket Color: Gray

Detailed

SE-R Solar Cable Advantages
solar cable
600V Solar Cable Aluminum Conductor SE-R
Type SE, 600V service entrance cable with aluminum conductor, is primarily used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard. However, the cable may be used in all applications where Type SE cable is permitted. SER may be used in wet or dry locations at temperatures not to exceed 90°C. Compared to SE-U, SE-R is rounder from appearance.

· UV resistant
· Low smoke halogen free
· Can be used in wet and dry environments

SE-R Solar Cable Technical Data
Rated temperature
-40°C~90°C
Rated voltage
600V
Reference Standard
UL854, UL1893
solar cable
se-r aluminum cable
SE-R Solar Cable Product description
Cable Name
Cross Section
(AWG)
Insulation Thickness
(mm)
Ground Size (AWG)
Jacket Thickness
(mm)
Cable O.D.
(mm)
Conductor Resistance Max
(Ώ/km,25°C)
600V Solar Cable Aluminum Conductor SE-R
6
1.14
1x6
0.76
18.40
0.411
4
1.14
1x6
0.76
20.30
0.258
3
1.14
1x5
0.76
22.10
0.205
2
1.14
1x4
0.76
24.00
0.162
1
1.40
1x3
0.76
29.10
0.128
1/0
1.40
1x2
0.76
31.50
0.102
2/0
1.40
1x1
0.76
34.20
0.081
3/0
1.40
1x1/0
0.76
37.10
0.064
4/0
1.40
1x2/0
0.76
42.60
0.051
