2kV PV Wire Aluminum Conductor Dual Layer UL4703
group nameAluminum Conductor
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
modelUL4703
payment methodT/T, L/C
-
update timeFri, 08 Nov 2024 21:43:14 GMT
Paramtents
Rated temperature -40°C ~ +90°C
Rated voltage 2000V

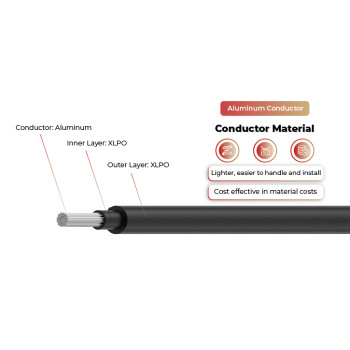

Outer Layer XLPO, Black, red or other colors
Inner Layer XLPO, Black or white
Conductor Aluminum alloy
Reference Standard UL4703, UL44, UL854, RoHS
Packging & Delivery
Min Order1 piece
Briefing
Conductor: 18AWG~2000kcmil
Color: Black, red or other colors
Color: Black, red or other colors
Detailed

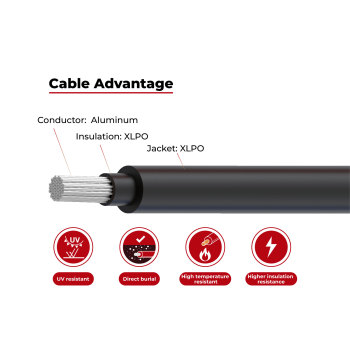

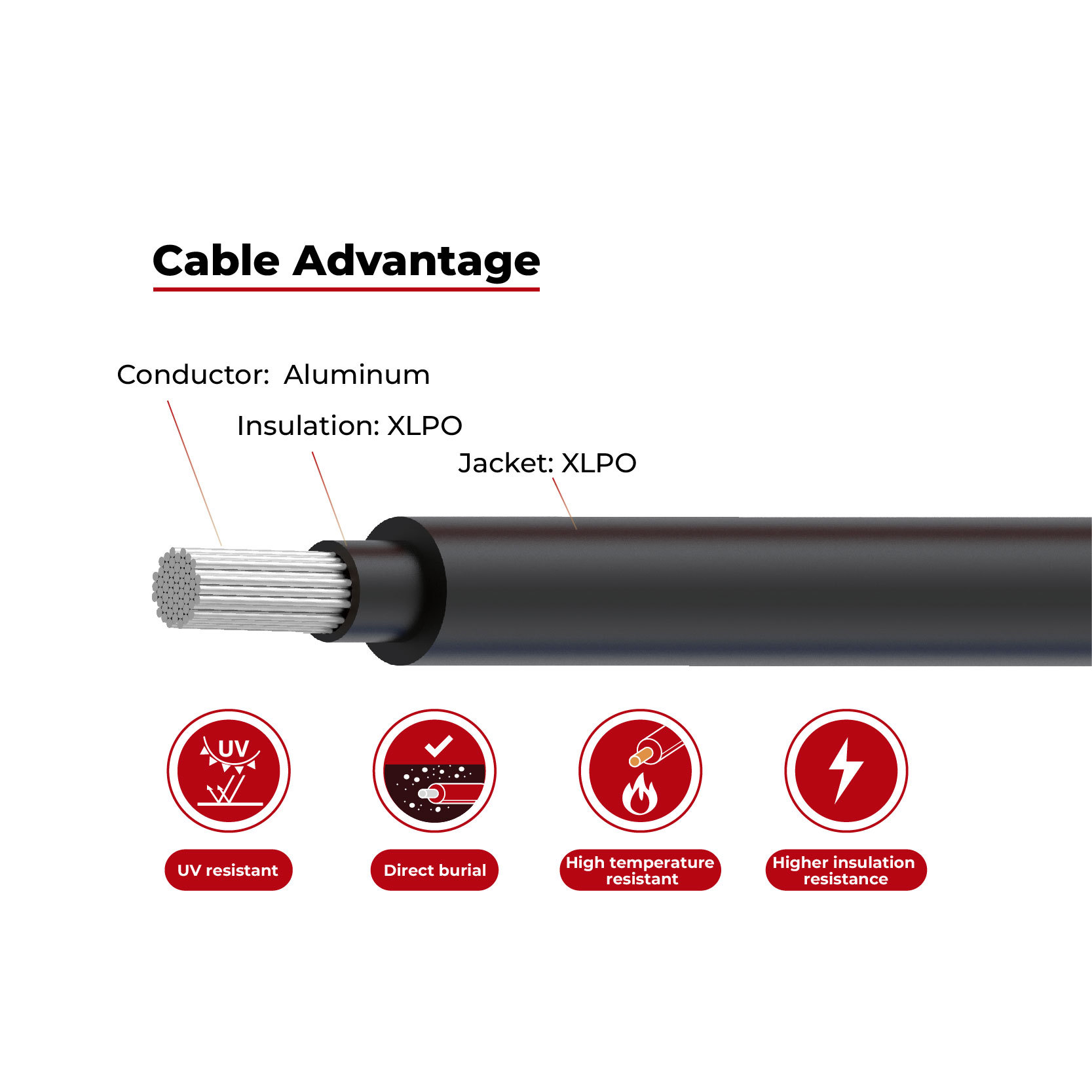

UL4703 PV Wire Advantages
2kV PV Wire Aluminum Conductor Dual Layer UL4703
UL4703 is one of the most common UL certified American standard cables. It passed the VW-1 vertical burning test and has good flame retardancy, the 2kV voltage makes it perfectly suitable for various large-scale projects such as photovoltaic power stations. We prepare brand new but project-experienced aluminum conductor solutions, which can effectively control costs.
· UV resistant
· Rated for direct buria
· High flame retardant FT
· Low smoke halogen free
· Higher insulation resistance
UL4703 PV Wire Technical Data
|
Rated temperature
|
-40°C ~ +90°C
|
|
|
Rated voltage
|
2000V
|
|
Voltage Test On Completed Cable | U=2000V
18~10AWG, 6KV/min
8~2AWG, 7.5KV/min
1~4/0AWG, 9KV/min | |
Reference Standard | UL 4703 PV wire
UL 44 Thermoset-insulated cables
UL 854 Service-entrance cables
RoHs Compliant | |
UL4703 PV Wire Product description
Cable Name |
Cross Section
(AWG) | Inner Layer Thickness (mm) |
Inner Layer O.D. (mm) | Outer Layer Thickness (mm) | Cable O.D.
(mm) | Conductor Resistance Max
(Ώ/km,20°C) |
2kV PV Wire Aluminum Conductor Dual Layer UL4703 | 14 | 1.14 | 4.20 | 0.76 | 5.85 | 8.96 |
12 | 1.14 | 4.75 | 0.76 | 6.40 | 5.64 | |
10 | 1.14 | 5.35 | 0.76 | 7.00 | 3.546 | |
8 | 1.39 | 6.70 | 0.76 | 8.30 | 2.23 | |
6 | 1.39 | 7.65 | 1.14 | 10.10 | 1.403 | |
4 | 1.39 | 9.30 | 1.14 | 11.70 | 0.882 | |
2 | 1.39 | 11.10 | 1.14 | 13.50 | 0.5548 | |
1/0 | 1.65 | 13.70 | 1.52 | 16.90 | 0.3487 | |
2/0 | 1.65 | 15.10 | 1.52 | 18.30 | 0.2766 | |
3/0 | 1.65 | 16.50 | 1.52 | 19.70 | 0.2194 | |
4/0 | 1.65 | 17.90 | 1.52 | 21.10 | 0.1722 |
