RAE-201 Veterinary Flexible Otoscope | Ultra-thin electronic endoscope

  • group nameVeterinary Flexible Otoscope

  • Min Order100 piece

  • brand nameJeetVet

  • modelRAE-201

  • payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal

  • update timeFri, 08 Nov 2024 12:12:42 GMT

Paramtents

  • Image Resolution: High Definition (HD)

  • Purpose Animal Ear and Nasal Examination

  • Working length 600 mm

  • Outer diameter of the tube 3.1 mm

  • Inner diameter of the channel 1.2 mm

  • Bending angle 180°

  • Steering direction up & down

  • Depth of field 5mm ~ 50mm

  • Field angle 120°

  • Pixels 160,000

Packging & Delivery

  • Min Order100 piece

Briefing

RAE-201 Veterinary Flexible Otoscope is used for ear and nasal examination and foreign body removal surgery for animals.

Detailed

Introduction to RAE-201 Veterinary Flexible Otoscope
Endoscopic Examination for a Turtle by JeetVet Flexible Veterinary Endoscope
A veterinarian used endoscopy to perform stomach examinations on our shelled friends – turtle. Endoscopy is an incredible technique that allows vets to see inside an animal's body without the need for invasive surgery. It involves using a tiny camera on a flexible tube, which gives us a clear and detailed view of the stomach and other internal organs.
Main Features
High-quality optical system
The field of view angle is 120° , providing a wider observation range.
The depth of field ranges from 5 mm to 50 mm to adapt to different inspection depths.

Flexible mechanical design
Flexible insertion tube: The insertion tube is 600 mm long and is made of medical-grade materials that are corrosion-resistant and antibacterial.
High flexibility: Large bending angles in up and down directions

Convenient operation and control
Ergonomic handheld controller for easy bending control and rotation.
The weight is less than 0.5kg. Ensures maneuverability and ease of use, reducing operator fatigue during prolonged procedures.



Durability:
Flexible tube undergoes rigorous aging tests. Designed for over 25,000 bends, guaranteeing long-term reliability.
Efficiency:
Quick and smooth diagnosis and treatment. Reduce operational difficulty and surgical time.
Detailed Image of Veterinary Flexible Otoscope

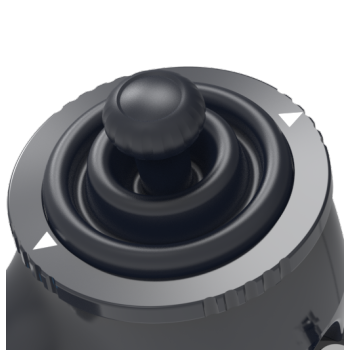

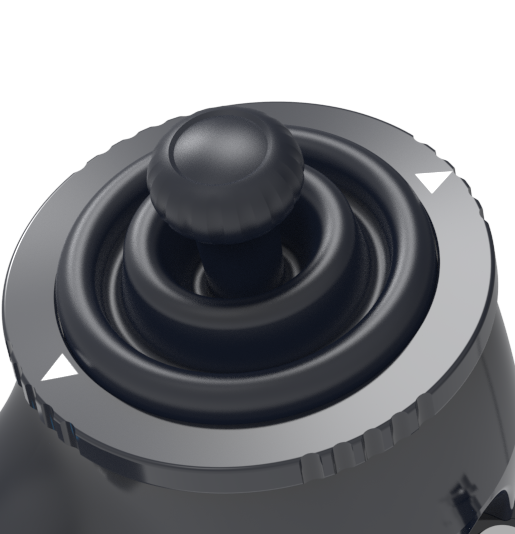

RAE-201 joystick

Joystick design enables 360° rotation

RAE-201 handle

Ergonomic design handle

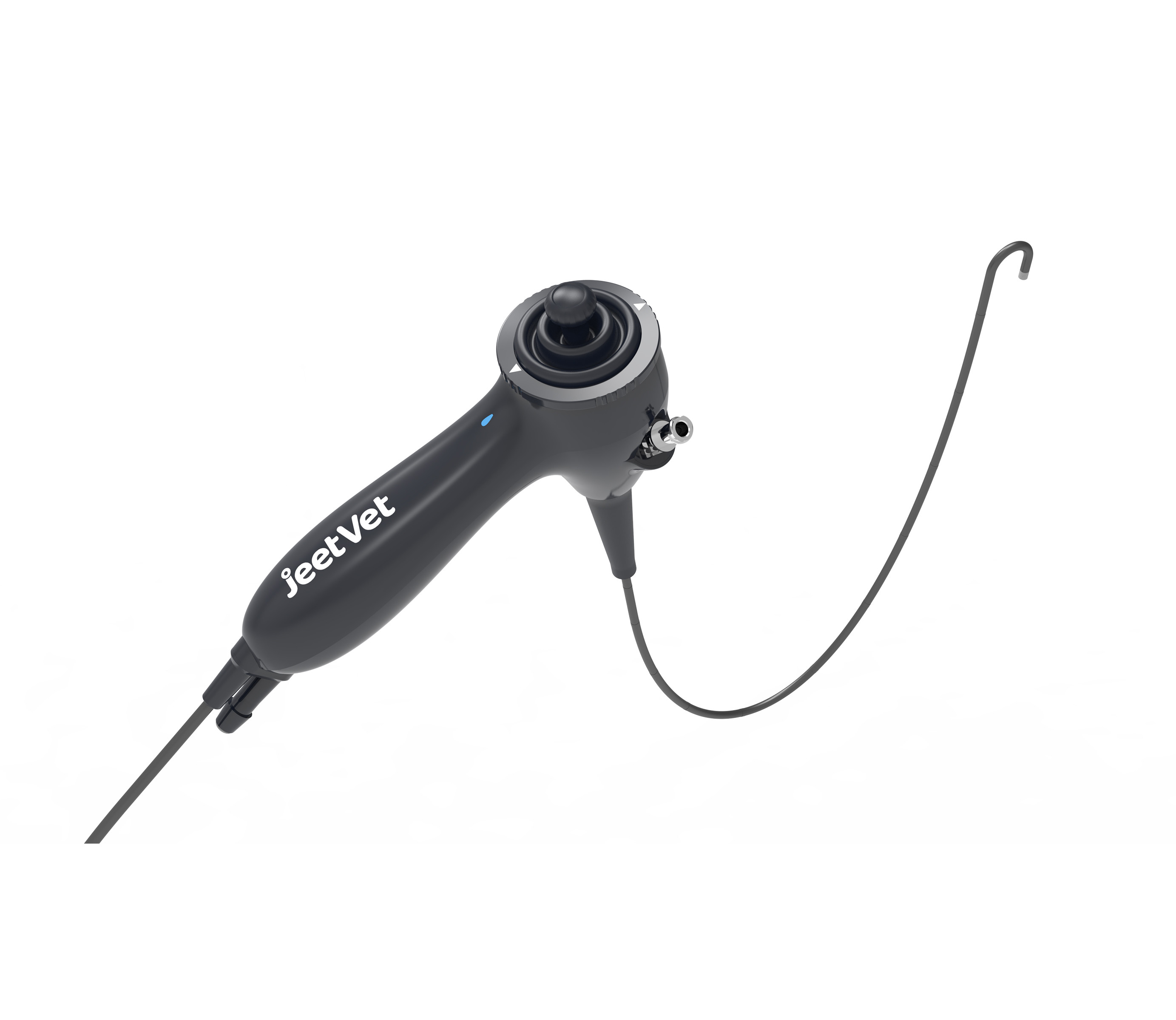

RAE-201 Otoscope

Veterinary Flexible Otoscope as a whole

RAE-201 bending section

Ultra-short bending section

RAE-201 small dimater large channel

Small diameter, large channel

RAE-201 flexible tube

Medical grade Flexible tube

Veterinary Flexible Otoscope Technical Parameters
General Parameters
Brand
JeetVet
Model
RAE-201 Veterinary Flexible otoscope
Purpose
Veterinary Flexible Otoscope, mainly used for ear and nasal examination of small animals and exotic animals
Optical Parameters
Viewing angle
120°
Depth of field
5 mm - 50 mm
Pixels
160,000
Mechanical Parameters
Working length
600 mm
Insertion tube material
Medical grade flexible material, corrosion-resistant and antibacterial
Bending angle:
180°
Operation and Control
Control method
Handheld controller with joystick for up & down control
Display
Displayed by user's smart phone, tablet or computer
Lighting System
Light source type
Endoscope operates without internal electric power, drawing power from the user's mobile phone.
Connection and Compatibility
Connection interface
Use USB cable to connect with smart phones, tablet or computer
Compatible devices
Support connection to smart phone, tablet, computer for data transmission and real-time monitoring
Other Functions
Disinfection method
Alcohol wiping,enzymatic cleaning solution or 2% glutaraldehyde disinfection
Portability
Lightweight design, equipped with a portable case, convenient for carrying and use
User interface
Friendly operation interface
Veterinary Flexible Otoscope Application Scenario
Application-1
Application-2
Application-3
Application-4
The veterinary flexible otoscope offers unparalleled versatility and precision in the diagnosis and treatment of various ear, nasal, and oral conditions in animals. Its flexibility allows for comprehensive examination, making it particularly valuable in assessing complex cases that involve anatomical challenges or smaller species.

1.  Otic Examinations and Procedures:
Veterinarians use the flexible otoscope to conduct detailed examinations of the ear canal, facilitating the diagnosis of conditions such as otitis externa, otitis media, and the presence of foreign bodies.

2. Nasal Cavity and Pharyngeal Assessment:
This device is also highly effective for nasal cavity and pharyngeal assessments, enabling veterinarians to visualize and treat conditions such as nasal polyps, tumors, or foreign objects. The flexibility of the otoscope is particularly advantageous in reaching and evaluating areas that are otherwise difficult to access with rigid scopes.

3. Dental and Oral Examinations:
In addition to otic and nasal applications, the flexible otoscope is utilized in dental and oral examinations, especially in small mammals and exotic species. It provides a non-invasive method to inspect the oral cavity for dental disease, oral masses, or other abnormalities, thus contributing to comprehensive patient care.

4. Minimally Invasive Procedures:
Beyond diagnostics, the flexible otoscope can be employed for minimally invasive procedures such as biopsies, foreign body removals, and flushing of the ear canal. Its precision and maneuverability reduce patient discomfort and improve the overall efficacy of treatment.

5. Exotic and Small Animal Care:
This tool is especially beneficial in the care of exotic pets and small animals, where its slim and flexible design allows for safe and thorough examinations without the need for extensive restraint or sedation. For species with delicate or intricate anatomy, the flexible otoscope is often the preferred choice to ensure detailed visualization and accurate diagnostics.
Veterinary Flexible Otoscope Packaging Display
